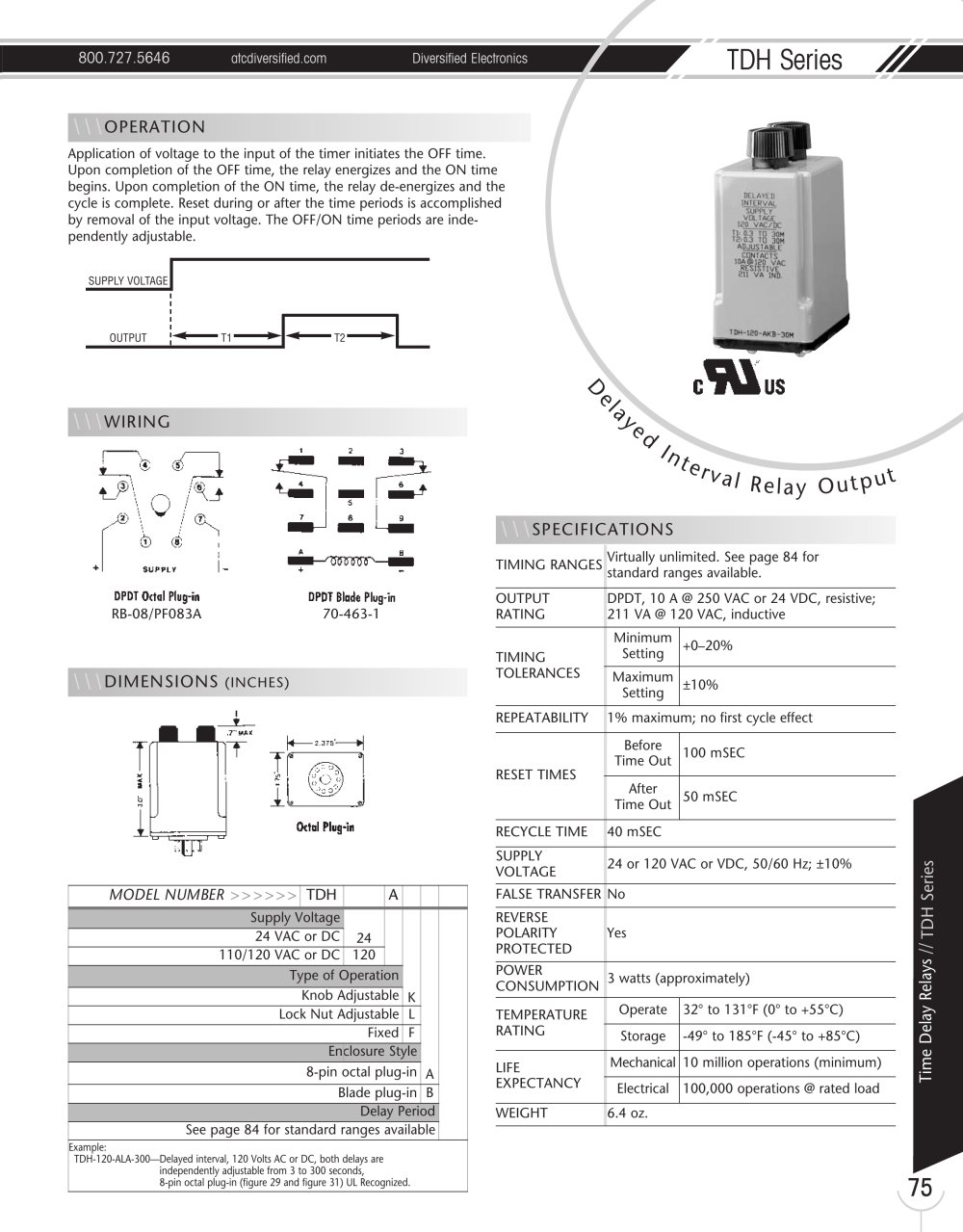

800.727.5646 atcdiversified.com Diversified Electronics TDH Series Time Delay Relays // TDH Series 75 De l a y e d In terv a l R e l a y Ou t p ut Application of voltage to the input of the timer initiates the OFF time. Upon completion of the OFF time, the relay energizes and the ON time begins. Upon completion of the ON time, the relay de-energizes and the cycle is complete. Reset during or after the time periods is accomplished by removal of the input voltage. The OFF/ON time periods are independently adjustable. MODEL NUMBER >>>>>> TDH A Supply Voltage 24 K A 24 VAC or DC 110/120 VAC or DC 120 Type of Operation Knob Adjustable Lock Nut Adjustable L Fixed F Enclosure Style 8-pin octal plug-in Blade plug-in B Delay Period See page 84 for standard ranges available Example: TDH-120-ALA-300—Delayed interval, 120 Volts AC or DC, both delays are independently adjustable from 3 to 300 seconds, 8-pin octal plug-in (figure 29 and figure 31) UL Recognized. \\\WIRING \\\DIMENSIONS (INCHES) SUPPLY VOLTAGE OUTPUT T1 T2 RB-08/PF083A 70-463-1 \\\SPECIFICATIONS TIMING RANGES Virtually unlimited. See page 84 for standard ranges available. OUTPUT RATING DPDT, 10 A @ 250 VAC or 24 VDC, resistive; 211 VA @ 120 VAC, inductive TIMING TOLERANCES Minimum Setting +0–20% Maximum Setting ±10% REPEATABILITY 1% maximum; no first cycle effect RESET TIMES Before Time Out 100 mSEC After Time Out 50 mSEC RECYCLE TIME 40 mSEC SUPPLY VOLTAGE 24 or 120 VAC or VDC, 50/60 Hz; ±10% FALSE TRANSFER No REVERSE POLARITY PROTECTED Yes POWER CONSUMPTION 3 watts (approximately) TEMPERATURE RATING Operate 32° to 131°F (0° to +55°C) Storage -49° to 185°F (-45° to +85°C) LIFE EXPECTANCY Mechanical 10 million operations (minimum) Electrical 100,000 operations @ rated load WEIGHT 6.4 oz. \\\OPERATION
