- Marsh Bellofram Diversified Electronics Division TDG Series Repeat Cycle-ON Time First Relay Output
Marsh Bellofram Diversified Electronics Division TDG Series Repeat Cycle-ON Time First Relay Output
1 /1Page
Marsh Bellofram Diversified Electronics Division TDG Series Repeat Cycle-ON Time First Relay Output
1 /1Page
Catalog excerpts

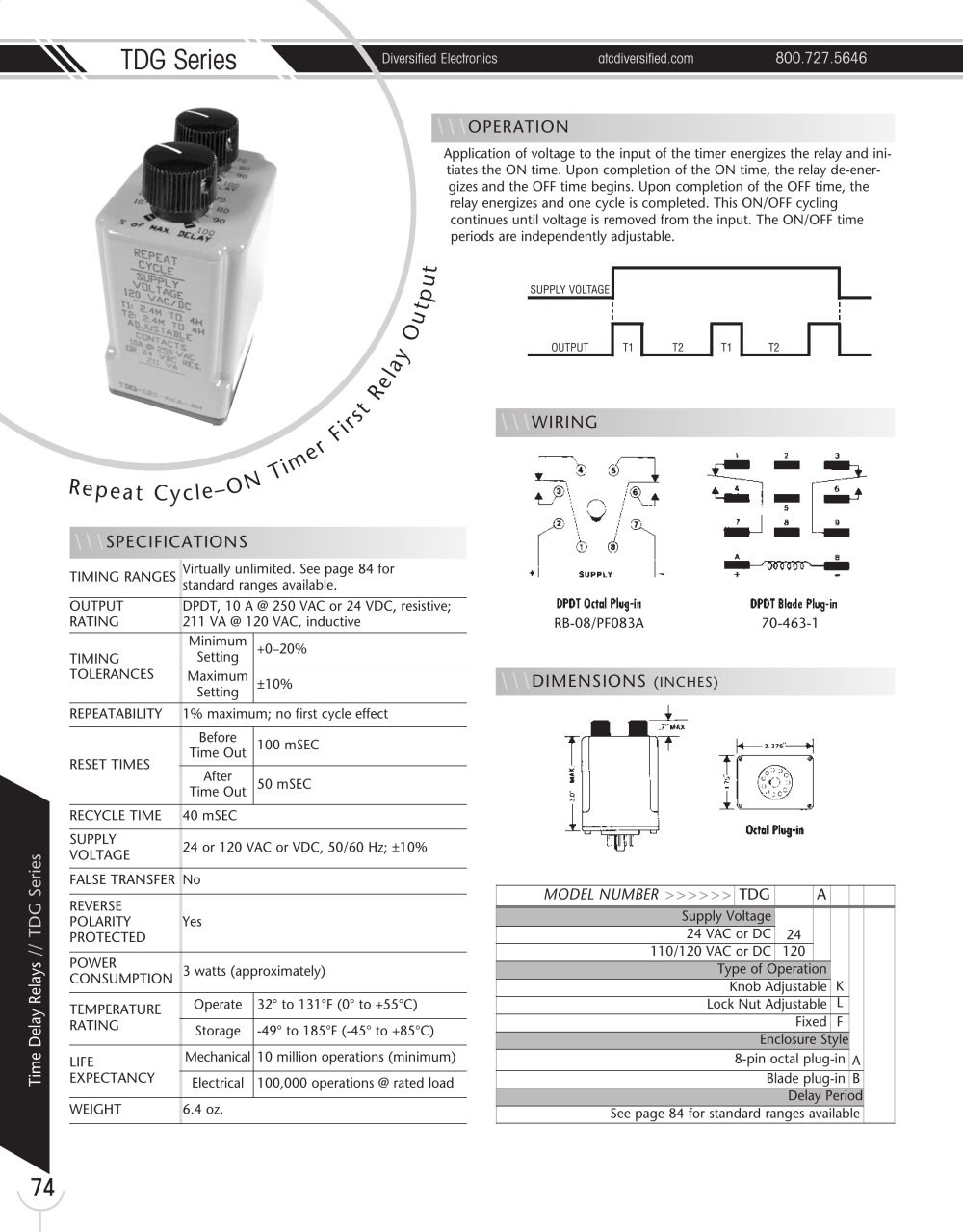

\\\SPECIFICATIONS TIMING RANGES Virtually unlimited. See page 84 for standard ranges available. OUTPUT RATING DPDT, 10 A @ 250 VAC or 24 VDC, resistive; 211 VA @ 120 VAC, inductive TIMING TOLERANCES Minimum Setting +0–20% Maximum Setting ±10% REPEATABILITY 1% maximum; no first cycle effect RESET TIMES Before Time Out 100 mSEC After Time Out 50 mSEC RECYCLE TIME 40 mSEC SUPPLY VOLTAGE 24 or 120 VAC or VDC, 50/60 Hz; ±10% FALSE TRANSFER No REVERSE POLARITY PROTECTED Yes POWER CONSUMPTION 3 watts (approximately) TEMPERATURE RATING Operate 32° to 131°F (0° to +55°C) Storage -49° to 185°F (-45° to +85°C) LIFE EXPECTANCY Mechanical 10 million operations (minimum) Electrical 100,000 operations @ rated load WEIGHT 6.4 oz. TDG Series Diversified Electronics atcdiversified.com 800.727.5646 74Time Delay Relays // TDG Series Application of voltage to the input of the timer energizes the relay and initiates the ON time. Upon completion of the ON time, the relay de-energizes and the OFF time begins. Upon completion of the OFF time, the relay energizes and one cycle is completed. This ON/OFF cycling continues until voltage is removed from the input. The ON/OFF time periods are independently adjustable. R e p e a t C y c l e – O N T imer F i r s t Re lay Output SUPPLY VOLTAGE OUTPUT T1 T2 T1 T2 RB-08/PF083A 70-463-1 \\\DIMENSIONS (INCHES) \\\WIRING MODEL NUMBER >>>>>> TDG A Supply Voltage 24 K A 24 VAC or DC 110/120 VAC or DC 120 Type of Operation Knob Adjustable Lock Nut Adjustable L Fixed F Enclosure Style 8-pin octal plug-in Blade plug-in B Delay Period See page 84 for standard ranges available \\\OPERATION
