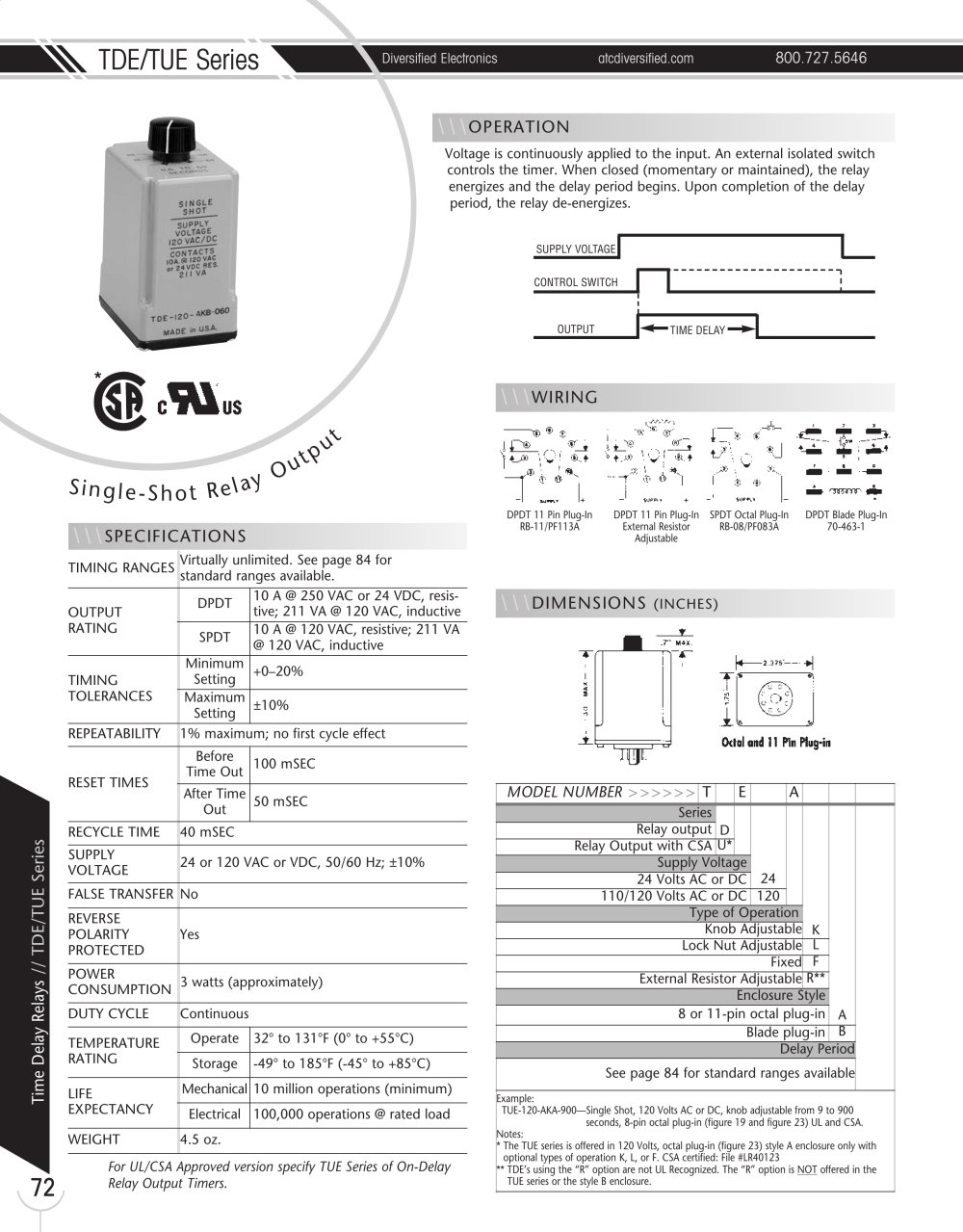

TDE/TUE Series Diversified Electronics atcdiversified.com 800.727.5646 72Time Delay Relays // TDE/TUE Series Voltage is continuously applied to the input. An external isolated switch controls the timer. When closed (momentary or maintained), the relay energizes and the delay period begins. Upon completion of the delay period, the relay de-energizes. S i n g l e - S h o t R e l a y Ou t p u t SUPPLY VOLTAGE OUTPUT CONTROL SWITCH TIME DELAY For UL/CSA Approved version specify TUE Series of On-Delay Relay Output Timers. * \\\WIRING \\\DIMENSIONS (INCHES) MODEL NUMBER >>>>>> T E A Series D 24 K A Relay output Relay Output with CSA U* Supply Voltage 24 Volts AC or DC 110/120 Volts AC or DC 120 Type of Operation Knob Adjustable Lock Nut Adjustable L Fixed F External Resistor Adjustable R** Enclosure Style 8 or 11-pin octal plug-in Blade plug-in B Delay Period See page 84 for standard ranges available Example: TUE-120-AKA-900—Single Shot, 120 Volts AC or DC, knob adjustable from 9 to 900 seconds, 8-pin octal plug-in (figure 19 and figure 23) UL and CSA. Notes: * The TUE series is offered in 120 Volts, octal plug-in (figure 23) style A enclosure only with optional types of operation K, L, or F. CSA certified: File #LR40123 ** TDE’s using the “R” option are not UL Recognized. The “R” option is NOT offered in the TUE series or the style B enclosure. \\\SPECIFICATIONS TIMING RANGES Virtually unlimited. See page 84 for standard ranges available. OUTPUT RATING DPDT 10 A @ 250 VAC or 24 VDC, resistive; 211 VA @ 120 VAC, inductive SPDT 10 A @ 120 VAC, resistive; 211 VA @ 120 VAC, inductive TIMING TOLERANCES Minimum Setting +0–20% Maximum Setting ±10% REPEATABILITY 1% maximum; no first cycle effect RESET TIMES Before Time Out 100 mSEC After Time Out 50 mSEC RECYCLE TIME 40 mSEC SUPPLY VOLTAGE 24 or 120 VAC or VDC, 50/60 Hz; ±10% FALSE TRANSFER No REVERSE POLARITY PROTECTED Yes POWER CONSUMPTION 3 watts (approximately) DUTY CYCLE Continuous TEMPERATURE RATING Operate 32° to 131°F (0° to +55°C) Storage -49° to 185°F (-45° to +85°C) LIFE EXPECTANCY Mechanical 10 million operations (minimum) Electrical 100,000 operations @ rated load WEIGHT 4.5 oz. \\\OPERATION DPDT 11 Pin Plug-In DPDT 11 Pin Plug-In SPDT Octal Plug-In DPDT Blade Plug-In RB-11/PF113A External Resistor RB-08/PF083A 70-463-1 Adjustable
