Marsh Bellofram Diversified Electronics Division TBE Series Single Shot DIP Switch TDR

Marsh Bellofram Diversified Electronics Division TBE Series Single Shot DIP Switch TDR

Product catalog summary

Overview: The TBE Series from Diversified Electronics is a time delay relay system designed for precise timing applications. It features a single shot DIP switch TDR with continuous supply voltage and an external control switch to initiate the time delay.

Specifications:

Configurations: Available in 8-pin SPDT and 11-pin DPDT.
Time Delay Ranges: Five ranges from 0.1 seconds to 1,023 minutes, adjustable via ten binary switches.
Output Rating: SPDT rated at 10 A @ 250 VAC or 24 VDC; DPDT rated at 5 A @ 240 VAC.
Accuracy: Setting accuracy of ±2% or ±50 mSEC; repeat accuracy of ±0.1% or ±8.3 mSEC.
Reset Times: 100 mSEC before time out, 50 mSEC after time out.
Supply Voltage: Options include 12, 24, 48, 120, or 240 VAC, 50/60 Hz, or DC with ±10% tolerance.
Temperature Rating: Operating range from 32°F to 131°F; storage from -49°F to 185°F.
Life Expectancy: Mechanical life of 10 million operations; electrical life of 100,000 operations at rated load.
Indicators: LED indicator for relay energization.
Isolation: 1,500 volts input/output.
Weight: 0.4 lbs.

Operation: The relay is energized when the control switch is closed, starting the delay period. Upon completion, the relay de-energizes. The DIP switch allows digital selection of the time delay, eliminating trial-and-error adjustments.

Additional Features:

False Transfer: No false transfer.
Reverse Polarity Protection: Yes.
Power Required: Approximately 3 VA.
Duty Cycle: Continuous.

Catalog excerpts

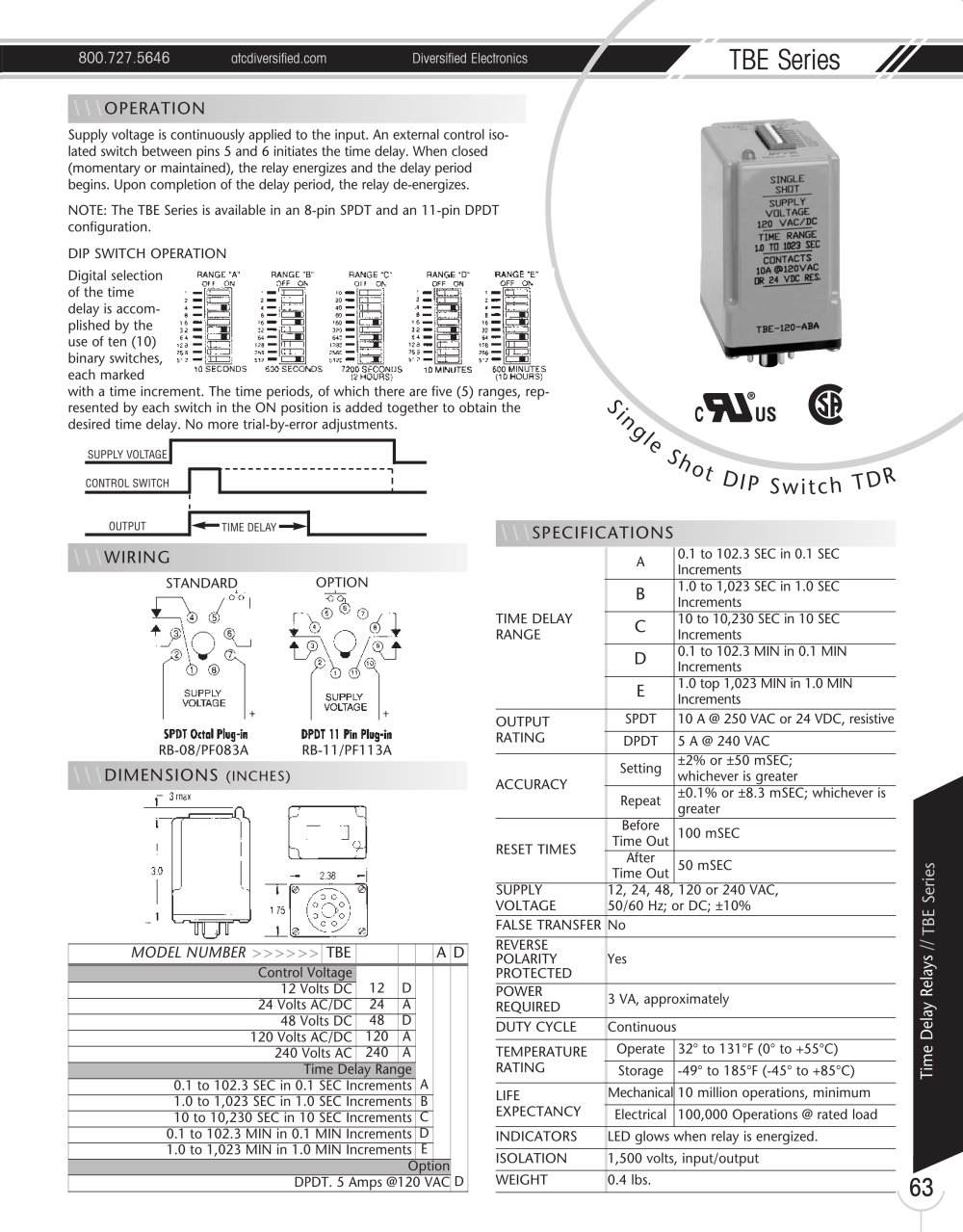

Marsh Bellofram Diversified Electronics Division TBE Series Single Shot DIP Switch TDR-1

800.727.5646 atcdiversified.com Diversified Electronics TBE Series Time Delay Relays // TBE Series 63 S i n g l e Sh o t D I P Sw i t c h T DR Supply voltage is continuously applied to the input. An external control isolated switch between pins 5 and 6 initiates the time delay. When closed (momentary or maintained), the relay energizes and the delay period begins. Upon completion of the delay period, the relay de-energizes. NOTE: The TBE Series is available in an 8-pin SPDT and an 11-pin DPDT configuration. DIP SWITCH OPERATION Digital selection of the time delay is accomplished by the use of ten (10) binary switches, each marked with a time increment. The time periods, of which there are five (5) ranges, represented by each switch in the ON position is added together to obtain the desired time delay. No more trial-by-error adjustments. SUPPLY VOLTAGE OUTPUT CONTROL SWITCH TIME DELAY RB-08/PF083A RB-11/PF113A \\\WIRING STANDARD OPTION \\\DIMENSIONS (INCHES) \\\SPECIFICATIONS TIME DELAY RANGE A 0.1 to 102.3 SEC in 0.1 SEC Increments B 1.0 to 1,023 SEC in 1.0 SEC Increments C 10 to 10,230 SEC in 10 SEC Increments D 0.1 to 102.3 MIN in 0.1 MIN Increments E 1.0 top 1,023 MIN in 1.0 MIN Increments OUTPUT RATING SPDT 10 A @ 250 VAC or 24 VDC, resistive DPDT 5 A @ 240 VAC ACCURACY Setting ±2% or ±50 mSEC; whichever is greater Repeat ±0.1% or ±8.3 mSEC; whichever is greater RESET TIMES Before Time Out 100 mSEC After Time Out 50 mSEC SUPPLY VOLTAGE 12, 24, 48, 120 or 240 VAC, 50/60 Hz; or DC; ±10% FALSE TRANSFER No REVERSE POLARITY PROTECTED Yes POWER REQUIRED 3 VA, approximately DUTY CYCLE Continuous TEMPERATURE RATING Operate 32° to 131°F (0° to +55°C) Storage -49° to 185°F (-45° to +85°C) LIFE EXPECTANCY Mechanical 10 million operations, minimum Electrical 100,000 Operations @ rated load INDICATORS LED glows when relay is energized. ISOLATION 1,500 volts, input/output WEIGHT 0.4 lbs. MODEL NUMBER >>>>>> TBE A D Control Voltage 12 D A D 12 Volts DC 24 Volts AC/DC 24 A 48 Volts DC 48 D 120 Volts AC/DC 120 A 240 Volts AC 240 A Time Delay Range 0.1 to 102.3 SEC in 0.1 SEC Increments 1.0 to 1,023 SEC in 1.0 SEC Increments B 10 to 10,230 SEC in 10 SEC Increments C 0.1 to 102.3 MIN in 0.1 MIN Increments D 1.0 to 1,023 MIN in 1.0 MIN Increments E Option DPDT. 5 Amps @120 VAC \\\OPERATION
