Marsh Bellofram Diversified Electronics Division SLJ Series Phase & Under Voltage Monitor

Marsh Bellofram Diversified Electronics Division SLJ Series Phase & Under Voltage Monitor

Product catalog summary

Overview: The SLJ Series Phase Voltage Monitors are designed to continuously monitor three-phase lines for adverse conditions such as phase loss, under voltage, and phase reversal. The device includes a built-in Delay-on-Make Time Delay feature.

Key Features:

Phase Monitoring: Detects phase loss if any phase drops below 83% of its nominal setting and under voltage if all three phases drop below 90%.
Phase Sequence Sensitivity: Prevents start-up if phases are reversed.
Delay-on-Make Timer: Adjustable from 0.2 to 8.0 minutes, allowing staggered start-up of equipment after a fault.
LED Indicators: Green LED indicates normal conditions; Red LED indicates relay energization.

Specifications:

Operating Voltage: Available in various ranges (95-130 V, 190-270 V, 350-440 V, 430-480 V).
Output Rating: Varies by model, with DPDT relay and specific inductive and resistive ratings.
Response Times: Operate time adjustable from 0.2 to 8.0 minutes; release times specified per model.
Temperature Rating: Operates between 32°F to 131°F; storage between -49°F to 185°F.
Enclosure: Style “E” Lexan, surface mounted.
Terminations: 12 screw terminals (#8-32).
Weight: 14 oz.

Applications: Ideal for installations requiring staggered equipment start-up after fault conditions.

Catalog excerpts

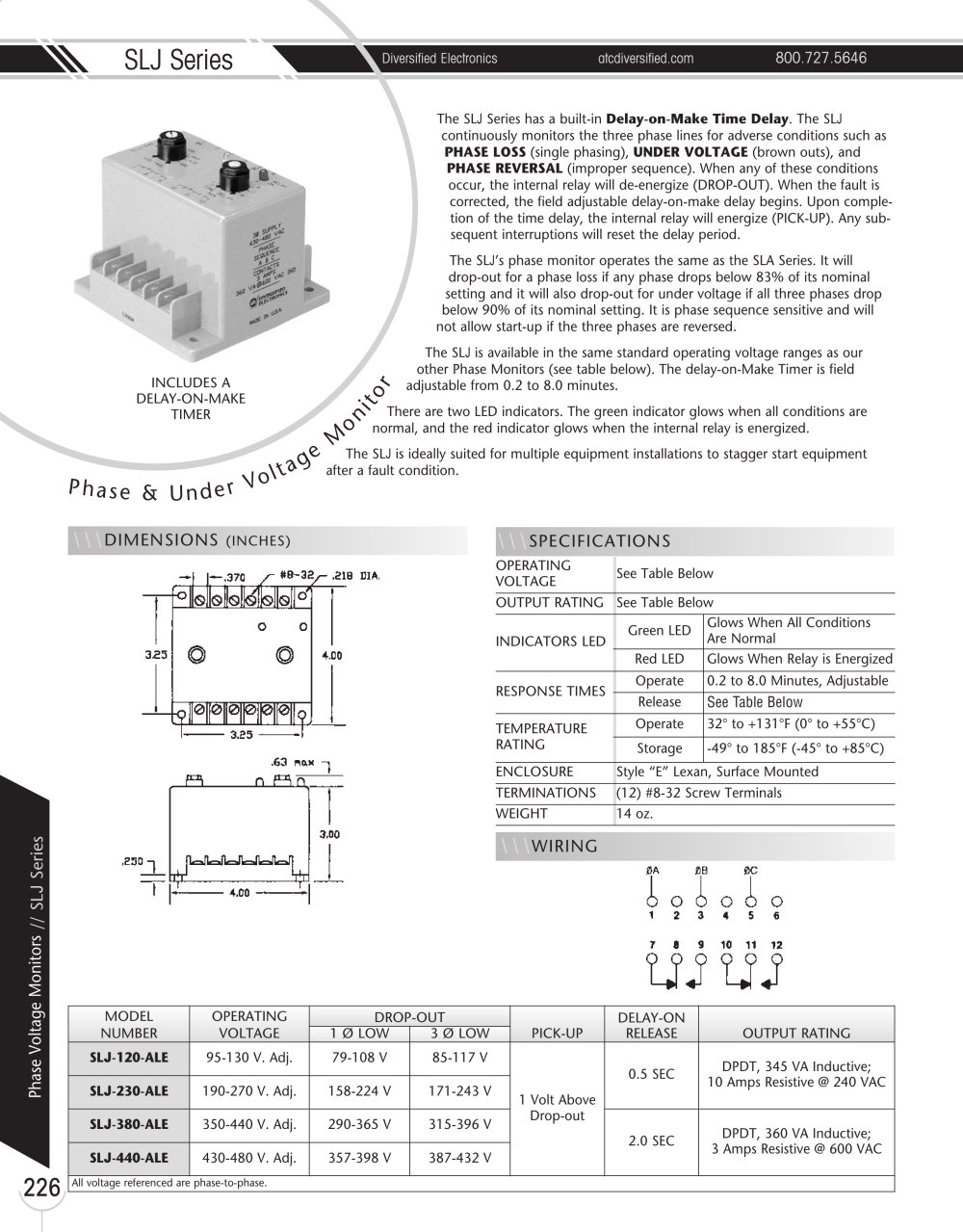

Marsh Bellofram Diversified Electronics Division SLJ Series Phase & Under Voltage Monitor-1

SLJ Series Diversified Electronics atcdiversified.com 800.727.5646 226 Phase Voltage Monitors // SLJ Series The SLJ Series has a built-in Delay-on-Make Time Delay. The SLJ continuously monitors the three phase lines for adverse conditions such as PHASE LOSS (single phasing), UNDER VOLTAGE (brown outs), and PHASE REVERSAL (improper sequence). When any of these conditions occur, the internal relay will de-energize (DROP-OUT). When the fault is corrected, the field adjustable delay-on-make delay begins. Upon completion of the time delay, the internal relay will energize (PICK-UP). Any subsequent interruptions will reset the delay period. The SLJ’s phase monitor operates the same as the SLA Series. It will drop-out for a phase loss if any phase drops below 83% of its nominal setting and it will also drop-out for under voltage if all three phases drop below 90% of its nominal setting. It is phase sequence sensitive and will not allow start-up if the three phases are reversed. The SLJ is available in the same standard operating voltage ranges as our other Phase Monitors (see table below). The delay-on-Make Timer is field adjustable from 0.2 to 8.0 minutes. There are two LED indicators. The green indicator glows when all conditions are normal, and the red indicator glows when the internal relay is energized. The SLJ is ideally suited for multiple equipment installations to stagger start equipment after a fault condition. P h a s e & U n d e r V o l t a ge Moni tor \\\DIMENSIONS (INCHES) \\\WIRING MODEL NUMBER OPERATING VOLTAGE DROP-OUT PICK-UP DELAY-ON 1 Ø LOW 3 Ø LOW RELEASE OUTPUT RATING SLJ-120-ALE 95-130 V. Adj. 79-108 V 85-117 V 1 Volt Above Drop-out 0.5 SEC DPDT, 345 VA Inductive; 10 Amps Resistive @ 240 VAC SLJ-230-ALE 190-270 V. Adj. 158-224 V 171-243 V SLJ-380-ALE 350-440 V. Adj. 290-365 V 315-396 V 2.0 SEC DPDT, 360 VA Inductive; 3 Amps Resistive @ 600 VAC SLJ-440-ALE 430-480 V. Adj. 357-398 V 387-432 V All voltage referenced are phase-to-phase. \\\SPECIFICATIONS OPERATING VOLTAGE See Table Below OUTPUT RATING See Table Below INDICATORS LED Green LED Glows When All Conditions Are Normal Red LED Glows When Relay is Energized RESPONSE TIMES Operate 0.2 to 8.0 Minutes, Adjustable Release See Table Below TEMPERATURE RATING Operate 32° to +131°F (0° to +55°C) Storage -49° to 185°F (-45° to +85°C) ENCLOSURE Style “E” Lexan, Surface Mounted TERMINATIONS (12) #8-32 Screw Terminals WEIGHT 14 oz. INCLUDES A DELAY-ON-MAKE TIMER
