Marsh Bellofram Diversified Electronics Division MPA Series Motor Performance Analyzer

Marsh Bellofram Diversified Electronics Division MPA Series Motor Performance Analyzer
2Pages

Catalog excerpts

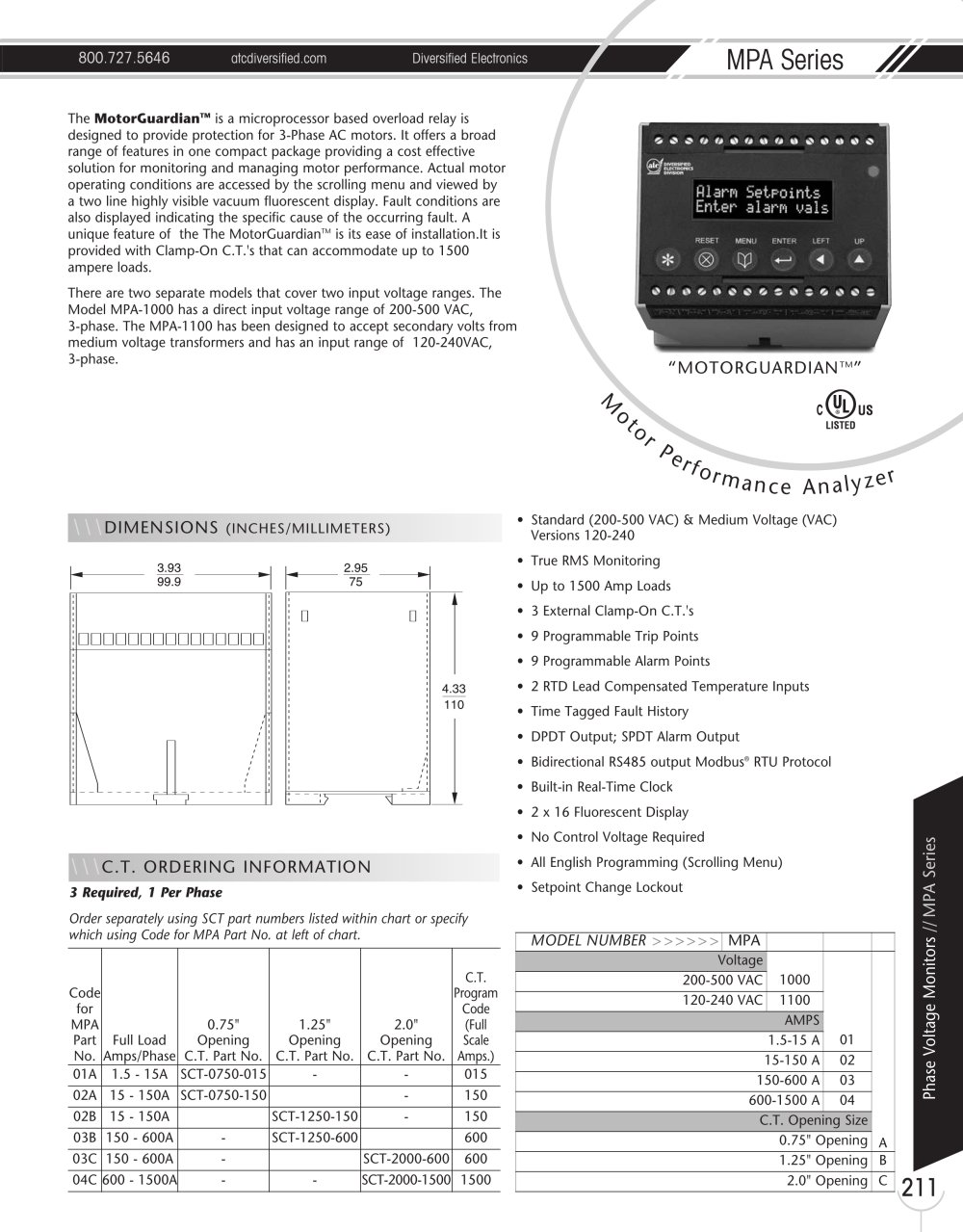

Marsh Bellofram Diversified Electronics Division MPA Series Motor Performance Analyzer - 1

800.727.5646 atcdiversified.com Diversified Electronics MPA Series Phase Voltage Monitors // MPA Series 211 Mo t o r P e r f o r ma n c e A n a l y z er The MotorGuardianTM is a microprocessor based overload relay is designed to provide protection for 3-Phase AC motors. It offers a broad range of features in one compact package providing a cost effective solution for monitoring and managing motor performance. Actual motor operating conditions are accessed by the scrolling menu and viewed by a two line highly visible vacuum fluorescent display. Fault conditions are also displayed indicating the specific cause of the occurring fault. A unique feature of the The MotorGuardianTM is its ease of installation.It is provided with Clamp-On C.T.'s that can accommodate up to 1500 ampere loads. There are two separate models that cover two input voltage ranges. The Model MPA-1000 has a direct input voltage range of 200-500 VAC, 3-phase. The MPA-1100 has been designed to accept secondary volts from medium voltage transformers and has an input range of 120-240VAC, 3-phase. MODEL NUMBER >>>>>> MPA Voltage 1000 01 A 200-500 VAC 120-240 VAC 1100 AMPS 1.5-15 A 15-150 A 02 150-600 A 03 600-1500 A 04 C.T. Opening Size 0.75" Opening 1.25" Opening B 2.0" Opening C • Standard (200-500 VAC) & Medium Voltage (VAC) Versions 120-240 • True RMS Monitoring • Up to 1500 Amp Loads • 3 External Clamp-On C.T.'s • 9 Programmable Trip Points • 9 Programmable Alarm Points • 2 RTD Lead Compensated Temperature Inputs • Time Tagged Fault History • DPDT Output; SPDT Alarm Output • Bidirectional RS485 output Modbus® RTU Protocol • Built-in Real-Time Clock • 2 x 16 Fluorescent Display • No Control Voltage Required • All English Programming (Scrolling Menu) • Setpoint Change Lockout \\\C.T. ORDERING INFORMATION 3 Required, 1 Per Phase Order separately using SCT part numbers listed within chart or specify which using Code for MPA Part No. at left of chart. Code for MPA Part No. Full Load Amps/Phase 0.75" Opening C.T. Part No. 1.25" Opening C.T. Part No. 2.0" Opening C.T. Part No. C.T. Program Code (Full Scale Amps.) 01A 1.5 - 15A SCT-0750-015 - - 015 02A 15 - 150A SCT-0750-150 - 150 02B 15 - 150A SCT-1250-150 - 150 03B 150 - 600A - SCT-1250-600 600 03C 150 - 600A - SCT-2000-600 600 04C 600 - 1500A - - SCT-2000-1500 1500 \\\DIMENSIONS (INCHES/MILLIMETERS) “MOTORGUARDIANTM”

Open the catalog to page 1

Marsh Bellofram Diversified Electronics Division MPA Series Motor Performance Analyzer - 2

MPA Series Diversified Electronics atcdiversified.com 800.727.5646 212 Phase Voltage Monitors // MPA Series CT1 CT2 CT3 RELAY ACCURACY Voltage ±1% Current ±1% G.F. Current ±10% Timing 5% ±1 Second INPUT VOLTAGE MPA-1000 200-500 VAC 3-Phase (Nominal) MPA-1100 120-240 VAC 3-Phase ±20% (Nominal) FREQUENCY 50/60 Hz PHASE SEQUENCE ABC (will not operate CBA) OUTPUT CONTACT DPDT; Form “C” 10A per pole max / 16 A Total @ 240 VAC ALARM OUTPUT SPDT; Form “C” 7 A @ 240 VAC COMMUNICATION OUTPUT RS485 Modbus RTU BAUDRATE 2400 - 115 200 PARITY Even, None WEIGHT 42 oz. CT WEIGHTS “A” size CT’s 4 oz. “B”...

Open the catalog to page 2
