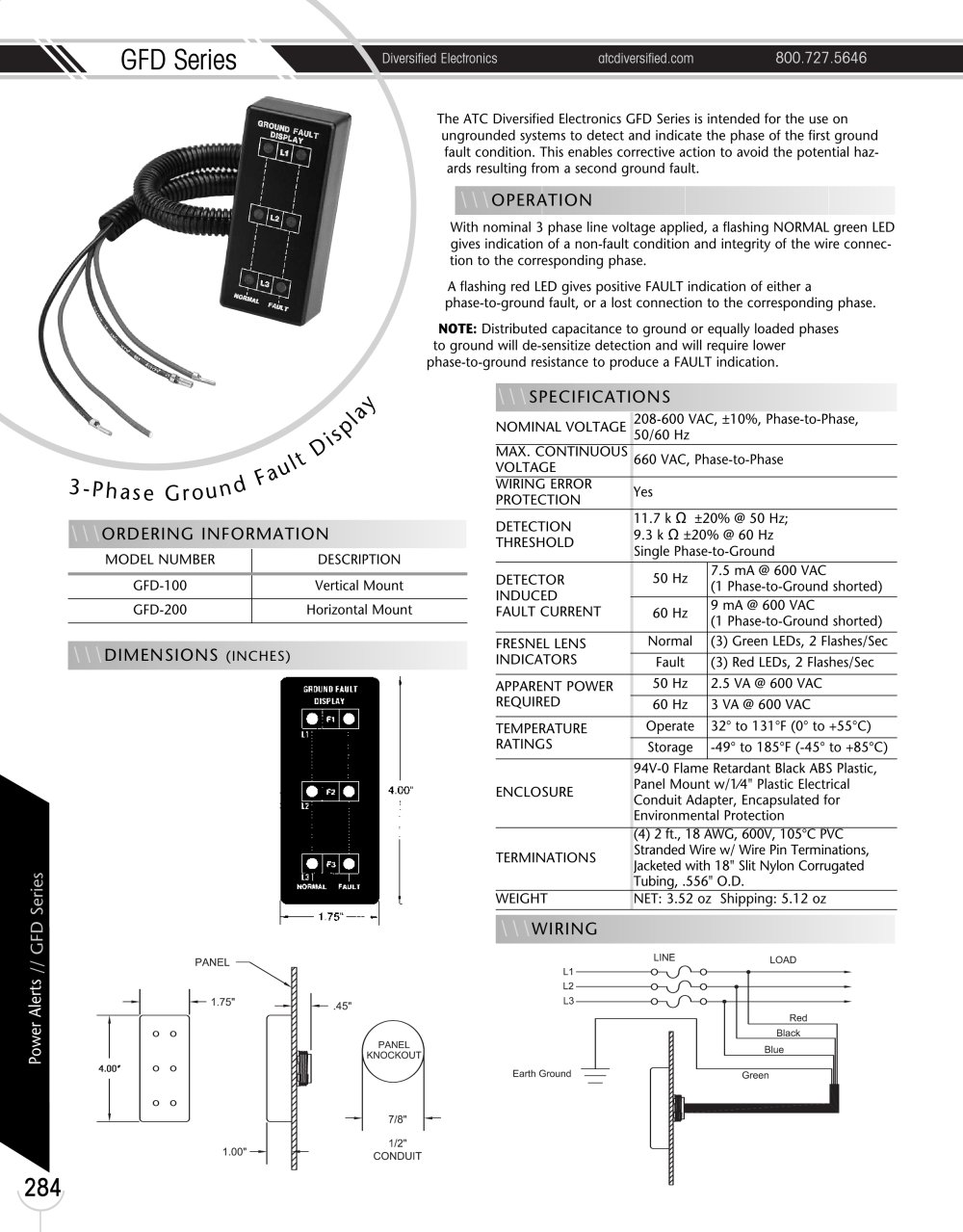

GFD Series Diversified Electronics atcdiversified.com 800.727.5646 284 Power Alerts // GFD Series The ATC Diversified Electronics GFD Series is intended for the use on ungrounded systems to detect and indicate the phase of the first ground fault condition. This enables corrective action to avoid the potential hazards resulting from a second ground fault. With nominal 3 phase line voltage applied, a flashing NORMAL green LED gives indication of a non-fault condition and integrity of the wire connection to the corresponding phase. A flashing red LED gives positive FAULT indication of either a phase-to-ground fault, or a lost connection to the corresponding phase. NOTE: Distributed capacitance to ground or equally loaded phases to ground will de-sensitize detection and will require lower phase-to-ground resistance to produce a FAULT indication. 3 - P h a s e G r oun d F a u l t D i spl ay \\\OPERATION \\\DIMENSIONS (INCHES) \\\SPECIFICATIONS NOMINAL VOLTAGE 208-600 VAC, ±10%, Phase-to-Phase, 50/60 Hz MAX. CONTINUOUS VOLTAGE 660 VAC, Phase-to-Phase WIRING ERROR PROTECTION Yes DETECTION THRESHOLD 11.7 k ½ ±20% @ 50 Hz; 9.3 k ½ ±20% @ 60 Hz Single Phase-to-Ground DETECTOR INDUCED FAULT CURRENT 50 Hz 7.5 mA @ 600 VAC (1 Phase-to-Ground shorted) 60 Hz 9 mA @ 600 VAC (1 Phase-to-Ground shorted) FRESNEL LENS INDICATORS Normal (3) Green LEDs, 2 Flashes/Sec Fault (3) Red LEDs, 2 Flashes/Sec APPARENT POWER REQUIRED 50 Hz 2.5 VA @ 600 VAC 60 Hz 3 VA @ 600 VAC TEMPERATURE RATINGS Operate 32° to 131°F (0° to +55°C) Storage -49° to 185°F (-45° to +85°C) ENCLOSURE 94V-0 Flame Retardant Black ABS Plastic, Panel Mount w/14" Plastic Electrical Conduit Adapter, Encapsulated for Environmental Protection TERMINATIONS (4) 2 ft., 18 AWG, 600V, 105°C PVC Stranded Wire w/ Wire Pin Terminations, Jacketed with 18" Slit Nylon Corrugated Tubing, .556" O.D. WEIGHT NET: 3.52 oz Shipping: 5.12 oz \\\WIRING \\\ORDERING INFORMATION MODEL NUMBER DESCRIPTION GFD-100 Vertical Mount GFD-200 Horizontal Mount
