Marsh Bellofram Diversified Electronics Division DTA12/240ASD Series Multi-Function DIN Rail Time Relay

Marsh Bellofram Diversified Electronics Division DTA12/240ASD Series Multi-Function DIN Rail Time Relay

Product catalog summary

Overview: The ATC-Diversified Electronics DTA12/240ASD DIN Rail Timer is designed for versatile timing applications with 10 selectable operating modes and a universal power supply. It is suitable for use in industrial machines, exhaust fans, heating, lubricating, and pump and motor control.

Key Features:

Supply voltage: 12-240VAC/DC
10 modes of operation including 5 power supply controlled, 4 control input timing modes, and 1 memory latching relay mode
Time ranges from 0.1 seconds to 10 days
1-SPDT 16 Amp relay output
Easy setup via rotary switches
UL Listed

Specifications:

Operating Temperature: -20 to 55°C (-4°F to 131°F)
Storage Temperature: -30 to 70°C (non-condensing)
Power Consumption: 3VA (AC)/ 1.7W (DC)
Electrical Strength: 4kW
Mounting: 35mm DIN Rail
Protection Degree: IP 40
Dimensions: 50 x 38 x 53mm (1.9” x 1.5” x 2.0”)
Weight: 57g (2.0 oz)
Standards: EN 61812-1, EN 61010-1

Output Control:

Output Contacts: 1-SPDT @ 16A
Inrush Current: 30 A < 3 Sec.
Switch Voltage: 250VAC / 24VDC
Min. Breaking Capacity: 500mW
Reset Time: Max. 150mSec.

Functions: The timer supports various functions such as ON Delay, Interval, Flasher (OFF/ON Time First), OFF Delay, Single Shot, Delay OFF After Break, ON Delay / OFF Delay, Latching Relay, and Pulse Generator.

Ordering Information: The product is identified as the Multifunction Time Relay DTA12/240ASD.

Contact Information: Marsh Bellofram Group of Companies, 8019 Ohio River Blvd Newell, WV 26050, Phone: 304.387.1200, 800.727.5646, Website: www.atcdiversified.com

Catalog excerpts

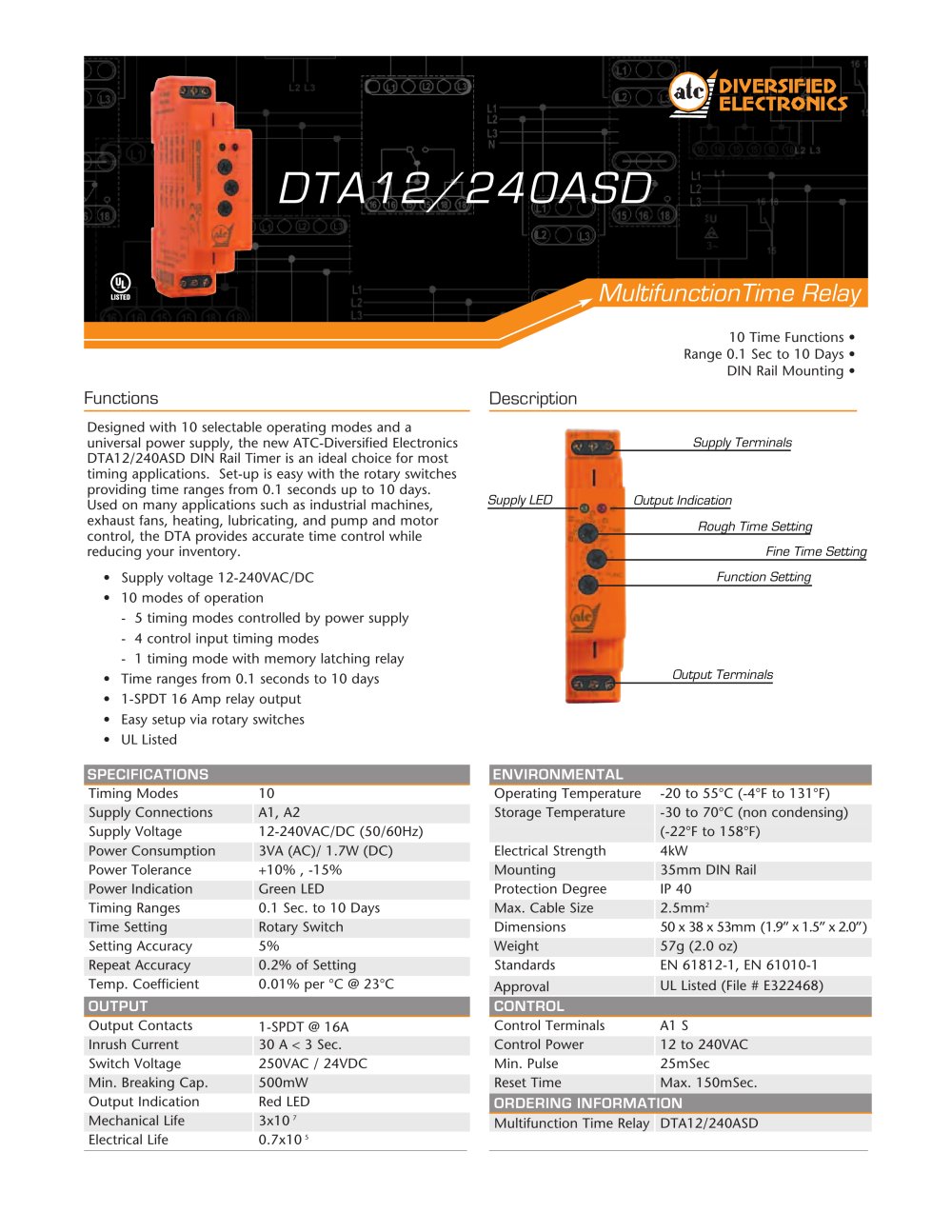

Marsh Bellofram Diversified Electronics Division DTA12/240ASD Series Multi-Function DIN Rail Time Relay-1

Designed with 10 selectable operating modes and a universal power supply, the new ATC-Diversified Electronics DTA12/240ASD DIN Rail Timer is an ideal choice for most timing applications. Set-up is easy with the rotary switches providing time ranges from 0.1 seconds up to 10 days. Used on many applications such as industrial machines, exhaust fans, heating, lubricating, and pump and motor control, the DTA provides accurate time control while reducing your inventory. • Supply voltage 12-240VAC/DC • 10 modes of operation - 5 timing modes controlled by power supply - 4 control input timing modes - 1 timing mode with memory latching relay • Time ranges from 0.1 seconds to 10 days • 1-SPDT 16 Amp relay output • Easy setup via rotary switches • UL Listed SPECIFICATIONS ENVIRONMENTAL Timing Modes 10 Operating Temperature -20 to 55°C (-4°F to 131°F) Supply Connections A1, A2 Storage Temperature -30 to 70°C (non condensing) Supply Voltage 12-240VAC/DC (50/60Hz) (-22°F to 158°F) Power Consumption 3VA (AC)/ 1.7W (DC) Electrical Strength 4kW Power Tolerance +10% , -15% Mounting 35mm DIN Rail Power Indication Green LED Protection Degree IP 40 Timing Ranges 0.1 Sec. to 10 Days Max. Cable Size 2.5mm2 Time Setting Rotary Switch Dimensions 50 x 38 x 53mm (1.9” x 1.5” x 2.0”) Setting Accuracy 5% Weight 57g (2.0 oz) Repeat Accuracy 0.2% of Setting Standards EN 61812-1, EN 61010-1 Temp. Coefficient 0.01% per °C @ 23°C Approval UL Listed (File # E322468) OUTPUT CONTROL Output Contacts 1-SPDT @ 16A Control Terminals A1 S Inrush Current 30 A < 3 Sec. Control Power 12 to 240VAC Switch Voltage 250VAC / 24VDC Min. Pulse 25mSec Min. Breaking Cap. 500mW Reset Time Max. 150mSec. Output Indication Red LED ORDERING INFORMATION Mechanical Life 3x10 7 Multifunction Time Relay DTA12/240ASD Electrical Life 0.7x10 5 Functions 10 Time Functions • Range 0.1 Sec to 10 Days • DIN Rail Mounting • MultifunctionTime Relay Description DTA12/240ASD Supply Terminals Supply LED Output Indication Rough Time Setting Fine Time Setting Function Setting Output Terminals
