Marsh Bellofram Diversified Electronics Division CML Series AC Over Current Monitor

Marsh Bellofram Diversified Electronics Division CML Series AC Over Current Monitor

Product catalog summary

Overview: The CML Series is designed to detect over current conditions in electrical systems. It features an internal relay that activates when the monitored current surpasses a preset trip point for a duration longer than the adjustable time delay, which helps prevent false tripping due to motor inrush currents. A manual reset feature is included, allowing the relay to deactivate when the reset button is pressed.

Specifications:

Control Voltage: Available in 24 or 120 VAC/DC; 50/60 Hz.
Trip Points: Pick-up as per order information; Drop-out is 5% below Pick-up after manual reset.
Output: DPDT, 10 Amp at 120 VAC Resistive.
Hysteresis: 5%.
Response Time: Adjustable from 0.1 to 5 seconds.
Indicators: LED indicator for over current (Style “E” Enclosure only).
Reset: Manual.
Temperature Rating: Operating range from 32° to 131°F (0° to +55°C); Storage range from -49° to 185°F (-45° to +85°C).
Enclosure: Style A with Lexan Dust Cover and 11-pin Plug-in; Style E with Lexan Surface Mounted and #8-32 Screw Terminals.
Socket: Style A: RB-11; Style E: 13 oz.
Weight: 6 oz.

Operation: The model number CML A S indicates the control voltage and type, enclosure style, and pick-up current range. Options include:

Control Voltage: 24 Volts or 120 Volts.
Type of Control Voltage: AC.
Enclosure Style: Plug-In or Surface Mount.
Pick-Up Current Range: Adjustable from 0.05 to 20 amps with various maximum continuous ratings.

Wiring: Includes manual reset functionality.

Dimensions: Provided in inches, specific dimensions not detailed in the summary.

Catalog excerpts

Marsh Bellofram Diversified Electronics Division CML Series AC Over Current Monitor-1

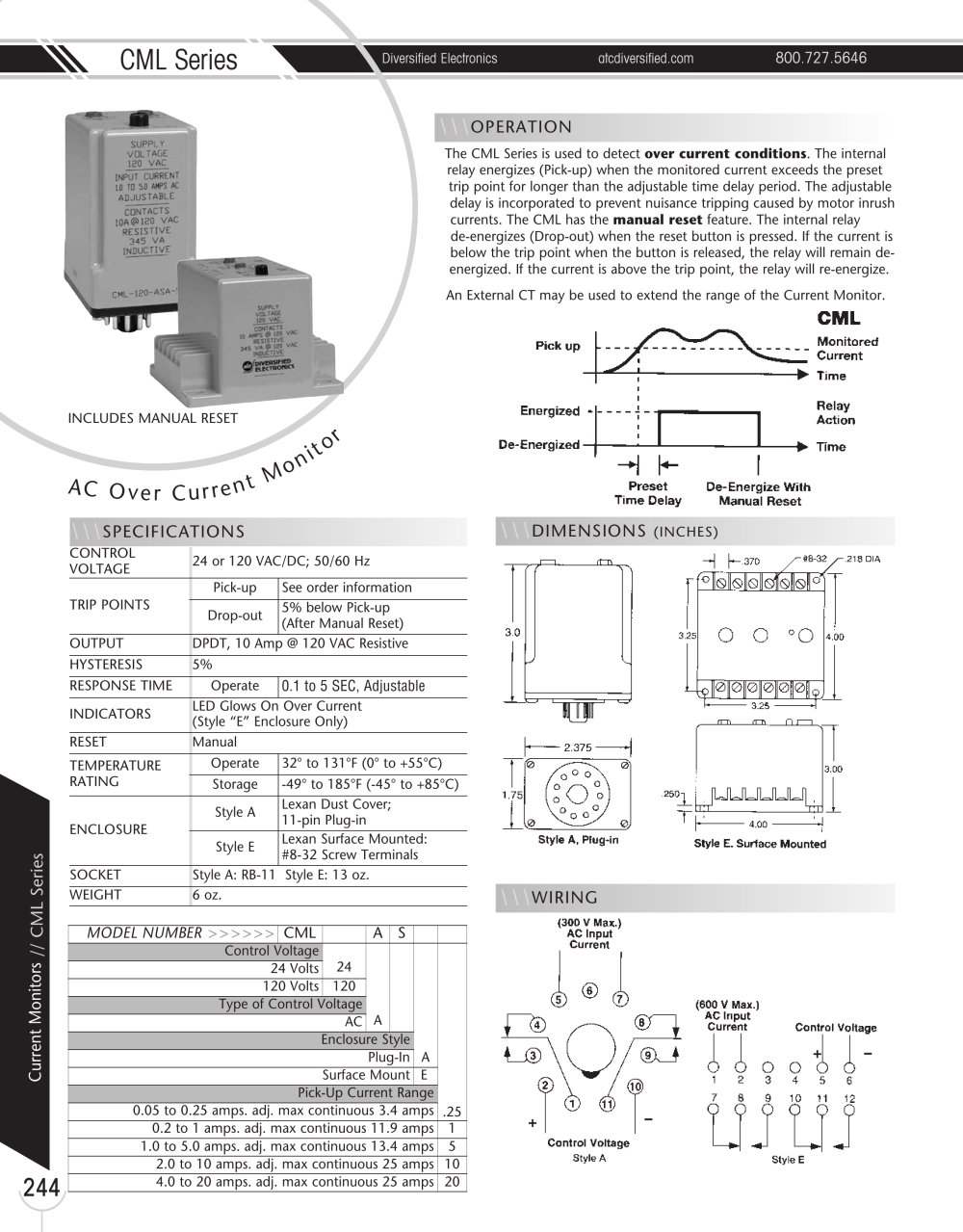

CML Series Diversified Electronics atcdiversified.com 800.727.5646 244 Current Monitors // CML Series The CML Series is used to detect over current conditions. The internal relay energizes (Pick-up) when the monitored current exceeds the preset trip point for longer than the adjustable time delay period. The adjustable delay is incorporated to prevent nuisance tripping caused by motor inrush currents. The CML has the manual reset feature. The internal relay de-energizes (Drop-out) when the reset button is pressed. If the current is below the trip point when the button is released, the relay will remain deenergized. If the current is above the trip point, the relay will re-energize. An External CT may be used to extend the range of the Current Monitor. A C O v e r C u r r en t Mo n i t o r \\\SPECIFICATIONS CONTROL VOLTAGE 24 or 120 VAC/DC; 50/60 Hz TRIP POINTS Pick-up See order information Drop-out 5% below Pick-up (After Manual Reset) OUTPUT DPDT, 10 Amp @ 120 VAC Resistive HYSTERESIS 5% RESPONSE TIME Operate 0.1 to 5 SEC, Adjustable INDICATORS LED Glows On Over Current (Style “E” Enclosure Only) RESET Manual TEMPERATURE RATING Operate 32° to 131°F (0° to +55°C) Storage -49° to 185°F (-45° to +85°C) ENCLOSURE Style A Lexan Dust Cover; 11-pin Plug-in Style E Lexan Surface Mounted: #8-32 Screw Terminals SOCKET Style A: RB-11 Style E: 13 oz. WEIGHT 6 oz. \\\OPERATION MODEL NUMBER >>>>>> CML A S Control Voltage 24 A A .25 24 Volts 120 Volts 120 Type of Control Voltage AC Enclosure Style Plug-In Surface Mount E Pick-Up Current Range 0.05 to 0.25 amps. adj. max continuous 3.4 amps 0.2 to 1 amps. adj. max continuous 11.9 amps 1 1.0 to 5.0 amps. adj. max continuous 13.4 amps 5 2.0 to 10 amps. adj. max continuous 25 amps 10 4.0 to 20 amps. adj. max continuous 25 amps 20 + + – – \\\WIRING INCLUDES MANUAL RESET \\\DIMENSIONS (INCHES)
