Marsh Bellofram Diversified Electronics Division ARA Series Triplexor

Marsh Bellofram Diversified Electronics Division ARA Series Triplexor
1Pages

Catalog excerpts

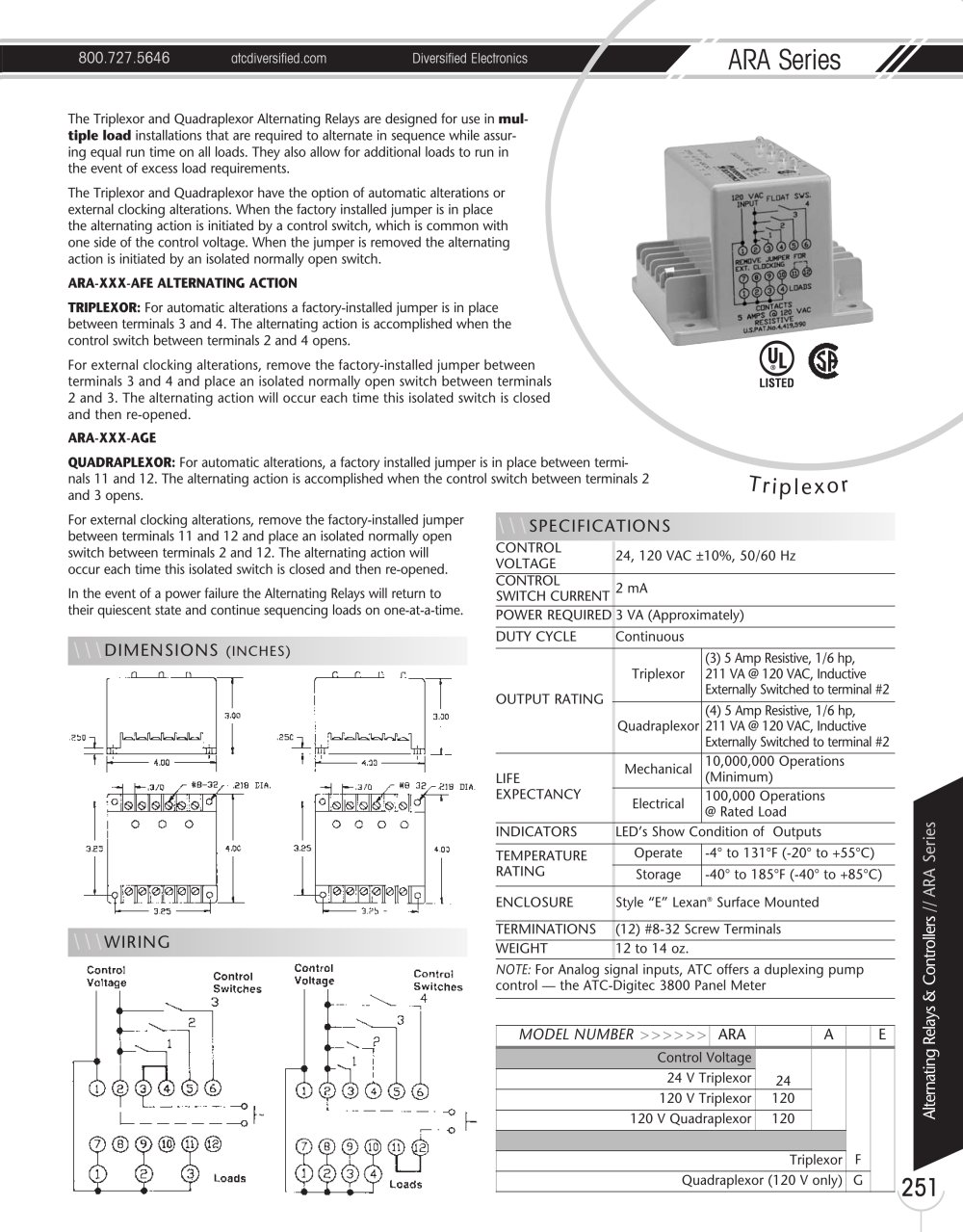

Marsh Bellofram Diversified Electronics Division ARA Series Triplexor - 1

800.727.5646 atcdiversified.com Diversified Electronics ARA Series 251 T r i p l e x o r The Triplexor and Quadraplexor Alternating Relays are designed for use in multiple load installations that are required to alternate in sequence while assuring equal run time on all loads. They also allow for additional loads to run in the event of excess load requirements. The Triplexor and Quadraplexor have the option of automatic alterations or external clocking alterations. When the factory installed jumper is in place the alternating action is initiated by a control switch, which is common with one side of the control voltage. When the jumper is removed the alternating action is initiated by an isolated normally open switch. ARA-XXX-AFE ALTERNATING ACTION TRIPLEXOR: For automatic alterations a factory-installed jumper is in place between terminals 3 and 4. The alternating action is accomplished when the control switch between terminals 2 and 4 opens. For external clocking alterations, remove the factory-installed jumper between terminals 3 and 4 and place an isolated normally open switch between terminals 2 and 3. The alternating action will occur each time this isolated switch is closed and then re-opened. ARA-XXX-AGE QUADRAPLEXOR: For automatic alterations, a factory installed jumper is in place between terminals 11 and 12. The alternating action is accomplished when the control switch between terminals 2 and 3 opens. For external clocking alterations, remove the factory-installed jumper between terminals 11 and 12 and place an isolated normally open switch between terminals 2 and 12. The alternating action will occur each time this isolated switch is closed and then re-opened. In the event of a power failure the Alternating Relays will return to their quiescent state and continue sequencing loads on one-at-a-time. Alternating Relays & Controllers // ARA Series \\\DIMENSIONS (INCHES) \\\SPECIFICATIONS CONTROL VOLTAGE 24, 120 VAC ±10%, 50/60 Hz CONTROL SWITCH CURRENT 2 mA POWER REQUIRED 3 VA (Approximately) DUTY CYCLE Continuous OUTPUT RATING Triplexor (3) 5 Amp Resistive, 1/6 hp, 211 VA @ 120 VAC, Inductive Externally Switched to terminal #2 Quadraplexor (4) 5 Amp Resistive, 1/6 hp, 211 VA @ 120 VAC, Inductive Externally Switched to terminal #2 LIFE EXPECTANCY Mechanical 10,000,000 Operations (Minimum) Electrical 100,000 Operations @ Rated Load INDICATORS LED’s Show Condition of Outputs TEMPERATURE RATING Operate -4° to 131°F (-20° to +55°C) Storage -40° to 185°F (-40° to +85°C) ENCLOSURE Style “E” Lexan® Surface Mounted TERMINATIONS (12) #8-32 Screw Terminals WEIGHT 12 to 14 oz. NOTE: For Analog signal inputs, ATC offers a duplexing pump control — the ATC-Digitec 3800 Panel Meter MODEL NUMBER >>>>>> ARA A E Control Voltage 24 F 24 V Triplexor 120 V Triplexor 120 120 V Quadraplexor 120 Triplexor Quadraplexor (120 V only) G \\\WIRING

Open the catalog to page 1
