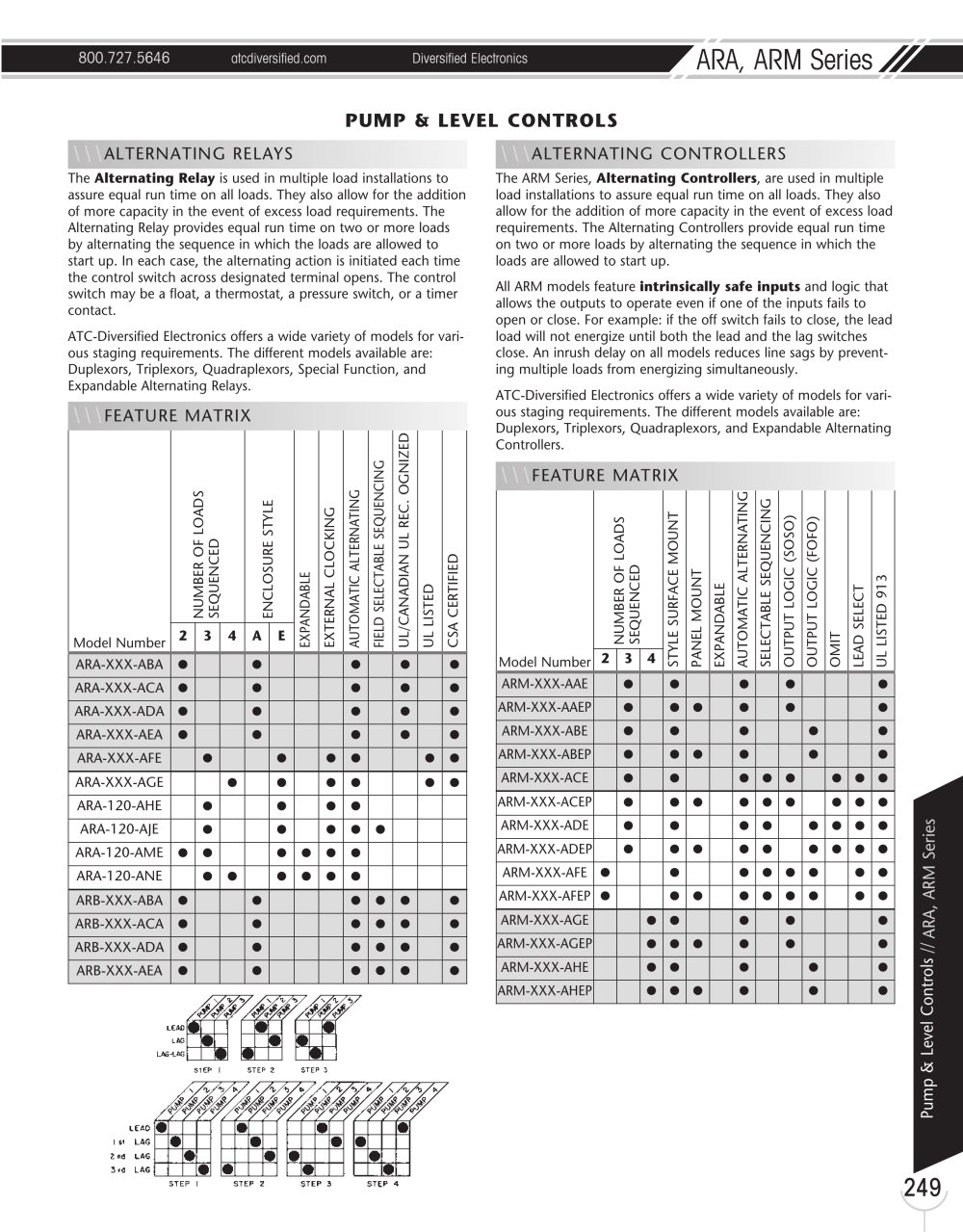

800.727.5646 atcdiversified.com Diversified Electronics ARA, ARM Series Pump & Level Controls // ARA, ARM Series 249 \\\ALTERNATING RELAYS The Alternating Relay is used in multiple load installations to assure equal run time on all loads. They also allow for the addition of more capacity in the event of excess load requirements. The Alternating Relay provides equal run time on two or more loads by alternating the sequence in which the loads are allowed to start up. In each case, the alternating action is initiated each time the control switch across designated terminal opens. The control switch may be a float, a thermostat, a pressure switch, or a timer contact. ATC-Diversified Electronics offers a wide variety of models for various staging requirements. The different models available are: Duplexors, Triplexors, Quadraplexors, Special Function, and Expandable Alternating Relays. The ARM Series, Alternating Controllers, are used in multiple load installations to assure equal run time on all loads. They also allow for the addition of more capacity in the event of excess load requirements. The Alternating Controllers provide equal run time on two or more loads by alternating the sequence in which the loads are allowed to start up. All ARM models feature intrinsically safe inputs and logic that allows the outputs to operate even if one of the inputs fails to open or close. For example: if the off switch fails to close, the lead load will not energize until both the lead and the lag switches close. An inrush delay on all models reduces line sags by preventing multiple loads from energizing simultaneously. ATC-Diversified Electronics offers a wide variety of models for various staging requirements. The different models available are: Duplexors, Triplexors, Quadraplexors, and Expandable Alternating Controllers. \\\ALTERNATING CONTROLLERS Model Number NUMBER OF LOADS SEQUENCED STYLE SURFACE MOUNT PANEL MOUNT EXPANDABLE AUTOMATIC ALTERNATING SELECTABLE SEQUENCING OUTPUT LOGIC (SOSO) OUTPUT LOGIC (FOFO) OMIT LEAD SELECT UL LISTED 913 2 3 4 ARM-XXX-AAE l l l l l ARM-XXX-AAEP l l l l l l ARM-XXX-ABE l l l l l ARM-XXX-ABEP l l l l l l ARM-XXX-ACE l l l l l l l l ARM-XXX-ACEP l l l l l l l l l ARM-XXX-ADE l l l l l l l l ARM-XXX-ADEP l l l l l l l l l ARM-XXX-AFE l l l l l l l l ARM-XXX-AFEP l l l l l l l l l ARM-XXX-AGE l l l l l ARM-XXX-AGEP l l l l l l ARM-XXX-AHE l l l l l ARM-XXX-AHEP l l l l l l Model Number NUMBER OF LOADS SEQUENCED ENCLOSURE STYLE EXPANDABLE EXTERNAL CLOCKING AUTOMATIC ALTERNATING FIELD SELECTABLE SEQUENCING UL/CANADIAN UL REC. OGNIZED UL LISTED CSA CERTIFIED 2 3 4 A E ARA-XXX-ABA l l l l l ARA-XXX-ACA l l l l l ARA-XXX-ADA l l l l l ARA-XXX-AEA l l l l l ARA-XXX-AFE l l l l l l ARA-XXX-AGE l l l l l l ARA-120-AHE l l l l ARA-120-AJE l l l l l ARA-120-AME l l l l l l ARA-120-ANE l l l l l l ARB-XXX-ABA l l l l l l ARB-XXX-ACA l l l l l l ARB-XXX-ADA l l l l l l ARB-XXX-AEA l l l l l l \\\FEATURE MATRIX \\\FEATURE MATRIX PUMP & LEVEL CONTROLS
