Relay Sockets

Surface Mounted—RB-08: Suitable for 8 pin octal plug-in devices, UL Recognized and CSA Certified for 10 Amps @ 600 VAC. Features a molded thermoplastic base with brass, nickel-plated inserts and #6-32 steel, nickel-plated screws.
Surface Mounted—RB-11: Designed for 11-pin magnal plug-in devices, UL Recognized and CSA Certified for 10 Amps @ 300 VAC. Includes a molded thermoplastic base with brass, nickel-plated inserts and #6-32 steel, nickel-plated screws.
DIN Rail/Surface Mounted—OT-08: For 8 pin octal plug-in devices, UL Recognized and CSA Certified for 10 Amps @ 600 VAC. Features a molded thermoplastic base with brass, nickel-plated inserts and #6-32 nickel-plated screws.
DIN Rail/Surface Mounted—PFO83A: Suitable for 8 pin octal plug-in devices, UL Recognized and CSA Certified for 10 Amps @ 300 VAC. Includes a molded polycarbonate base with brass, nickel-plated inserts and #6-40 steel, nickel-plated screws with captive self-lifting terminal clamps.
Surface Mounted—70-463-1: For 0.187 blade 11 Pin Square base plug-in devices, UL Recognized and CSA Certified for 10 Amps @ 300 VAC. Features a molded thermoplastic base with brass, nickel-plated inserts and #6-32 steel, nickel-plated screws.
DIN Rail/Surface Mounted—PF113A: Designed for 11 pin magnal plug-in devices, UL Recognized and CSA Certified for 10 Amps @ 300 VAC. Includes a molded polycarbonate base with brass, nickel-plated inserts and #6-40 steel, nickel-plated screws with captive self-lifting terminal clamps.
DIN Rail/Surface Mounted—PYF14A: Suitable for 14 pin multi-contact square base devices, UL Recognized and CSA Certified for 5 Amps @ 300 VAC. Features a molded polycarbonate base with brass, nickel-plated inserts and #4-40 steel, nickel-plated screws with captive self-lifting terminal clamps.

Accessories

Adjustment—101-026-105: For ATC Diversified Electronics "remote adjustable" timers, maintaining proper spacing for UL and CSA applications. Features a linear taper potentiometer with a non-conductive shaft and brass bushing.
Adjustment Hardware Lock Nut—100-054-070: For adjustments or switches with a 3/8" x 32NEF bushing and 1/4" shaft, preventing vibration mis-adjustment. Made from black glass-filled nylon with a UL 94V-0 rating.
Flat Nut—100-054-071: For adjustments or switches with a 3/8" x 32NEF bushing and 1/4" shaft, ensuring no exposed metal parts. Made from black, glass-filled nylon with a UL 94V-0 rating.
Knob—100-054-073: For adjustments or switches with a 1/4" shaft, secured by a #6-32 set screw. Features a knurled, mirror-finished, black thermostat knob with a white pointer line.
Hold Down Bracket—100-054-080: For ATC-Diversified Electronics devices with octal or magnal plug-in bases, made of .040 steel with a yellow chromate coating.
Saddle Clamp Screw—100-054-226: Compatible with all ATC-Diversified Electronics Style E surface mount enclosures.
Spring Clip—100-054-275: Set of 2, usable only with the PF083A socket.

Catalog excerpts

Marsh Bellofram Diversified Electronics Division Accessories Data Sheet-1

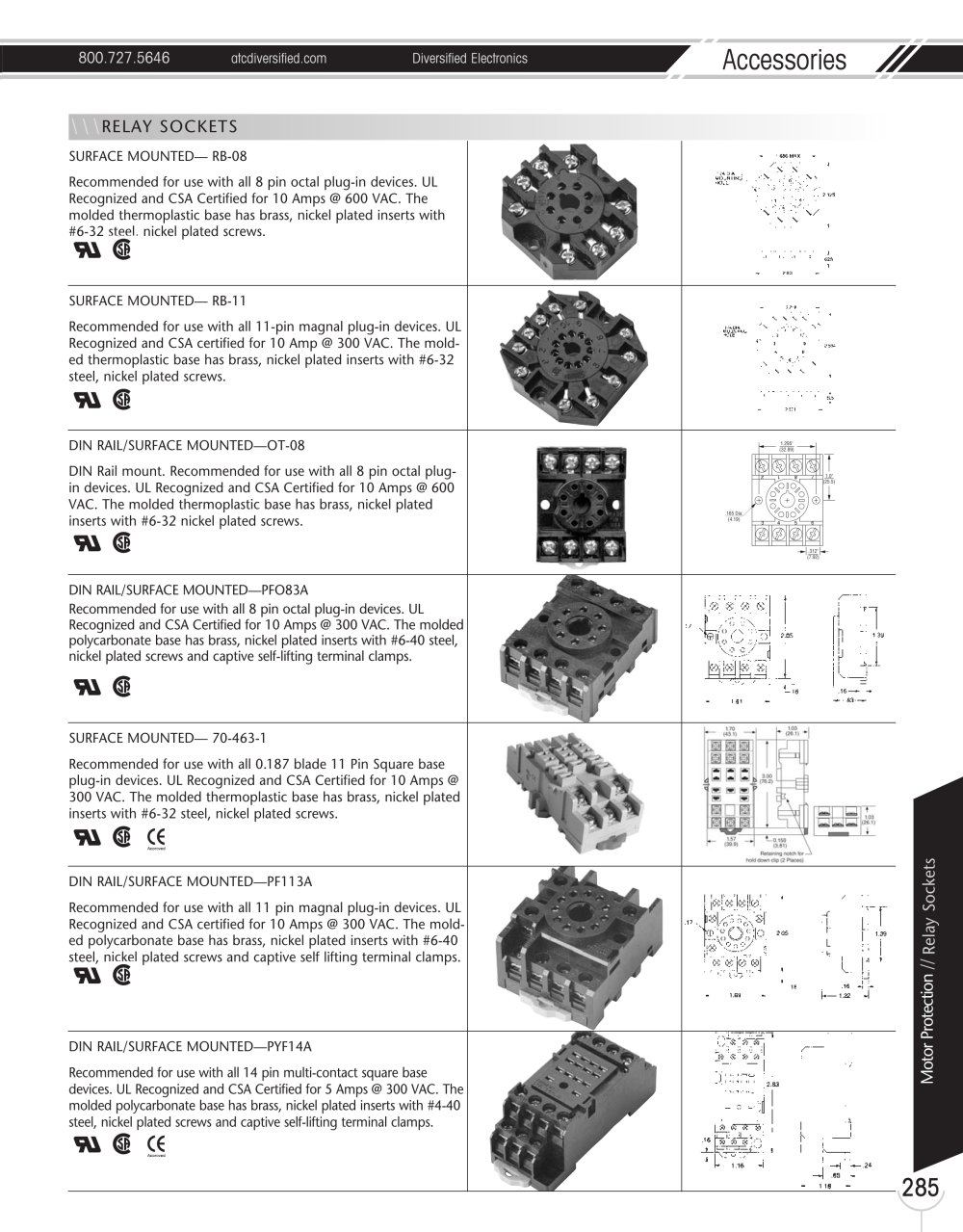

800.727.5646 atcdiversified.com Diversified Electronics Accessories Motor Protection // Relay Sockets 285 \\\RELAY SOCKETS SURFACE MOUNTED— RB-08 Recommended for use with all 8 pin octal plug-in devices. UL Recognized and CSA Certified for 10 Amps @ 600 VAC. The molded thermoplastic base has brass, nickel plated inserts with #6-32 steel, nickel plated screws. SURFACE MOUNTED— RB-11 Recommended for use with all 11-pin magnal plug-in devices. UL Recognized and CSA certified for 10 Amp @ 300 VAC. The molded thermoplastic base has brass, nickel plated inserts with #6-32 steel, nickel plated screws. DIN RAIL/SURFACE MOUNTED—OT-08 DIN Rail mount. Recommended for use with all 8 pin octal plugin devices. UL Recognized and CSA Certified for 10 Amps @ 600 VAC. The molded thermoplastic base has brass, nickel plated inserts with #6-32 nickel plated screws. 1.0" (25.5) .312" (7.92) 1.295" (32.89) .165 Dia. (4.19) DIN RAIL/SURFACE MOUNTED—PFO83A Recommended for use with all 8 pin octal plug-in devices. UL Recognized and CSA Certified for 10 Amps @ 300 VAC. The molded polycarbonate base has brass, nickel plated inserts with #6-40 steel, nickel plated screws and captive self-lifting terminal clamps. SURFACE MOUNTED— 70-463-1 Recommended for use with all 0.187 blade 11 Pin Square base plug-in devices. UL Recognized and CSA Certified for 10 Amps @ 300 VAC. The molded thermoplastic base has brass, nickel plated inserts with #6-32 steel, nickel plated screws. DIN RAIL/SURFACE MOUNTED—PF113A Recommended for use with all 11 pin magnal plug-in devices. UL Recognized and CSA certified for 10 Amps @ 300 VAC. The molded polycarbonate base has brass, nickel plated inserts with #6-40 steel, nickel plated screws and captive self lifting terminal clamps. DIN RAIL/SURFACE MOUNTED—PYF14A Recommended for use with all 14 pin multi-contact square base devices. UL Recognized and CSA Certified for 5 Amps @ 300 VAC. The molded polycarbonate base has brass, nickel plated inserts with #4-40 steel, nickel plated screws and captive self-lifting terminal clamps.
