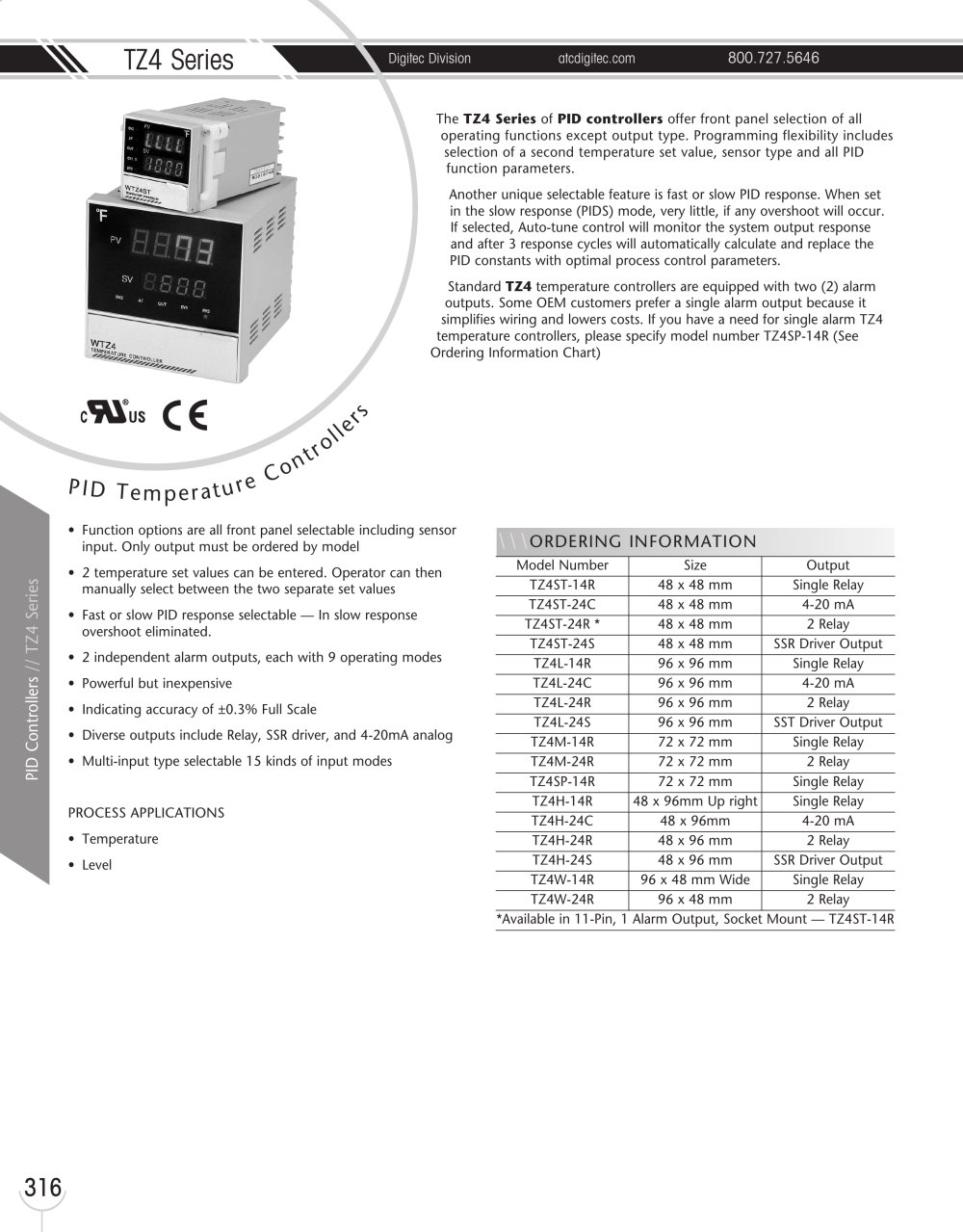

TZ4 Series Digitec Division atcdigitec.com 800.727.5646 316 PID Controllers // TZ4 Series The TZ4 Series of PID controllers offer front panel selection of all operating functions except output type. Programming flexibility includes selection of a second temperature set value, sensor type and all PID function parameters. Another unique selectable feature is fast or slow PID response. When set in the slow response (PIDS) mode, very little, if any overshoot will occur. If selected, Auto-tune control will monitor the system output response and after 3 response cycles will automatically calculate and replace the PID constants with optimal process control parameters. Standard TZ4 temperature controllers are equipped with two (2) alarm outputs. Some OEM customers prefer a single alarm output because it simplifies wiring and lowers costs. If you have a need for single alarm TZ4 temperature controllers, please specify model number TZ4SP-14R (See Ordering Information Chart) P I D T e m p e r a t u r e C on t r o l l e r s • Function options are all front panel selectable including sensor input. Only output must be ordered by model • 2 temperature set values can be entered. Operator can then manually select between the two separate set values • Fast or slow PID response selectable — In slow response overshoot eliminated. • 2 independent alarm outputs, each with 9 operating modes • Powerful but inexpensive • Indicating accuracy of ±0.3% Full Scale • Diverse outputs include Relay, SSR driver, and 4-20mA analog • Multi-input type selectable 15 kinds of input modes PROCESS APPLICATIONS • Temperature • Level \\\ORDERING INFORMATION Model Number Size Output TZ4ST-14R 48 x 48 mm Single Relay TZ4ST-24C 48 x 48 mm 4-20 mA TZ4ST-24R * 48 x 48 mm 2 Relay TZ4ST-24S 48 x 48 mm SSR Driver Output TZ4L-14R 96 x 96 mm Single Relay TZ4L-24C 96 x 96 mm 4-20 mA TZ4L-24R 96 x 96 mm 2 Relay TZ4L-24S 96 x 96 mm SST Driver Output TZ4M-14R 72 x 72 mm Single Relay TZ4M-24R 72 x 72 mm 2 Relay TZ4SP-14R 72 x 72 mm Single Relay TZ4H-14R 48 x 96mm Up right Single Relay TZ4H-24C 48 x 96mm 4-20 mA TZ4H-24R 48 x 96 mm 2 Relay TZ4H-24S 48 x 96 mm SSR Driver Output TZ4W-14R 96 x 48 mm Wide Single Relay TZ4W-24R 96 x 48 mm 2 Relay *Available in 11-Pin, 1 Alarm Output, Socket Mount — TZ4ST-14R

Open the catalog to page 1

Marsh Bellofram DigiTec Division TZ4 Series PID Temperature Controllers - 2

800.727.5646 atcdigitec.com Digitec Division TZ4 Series PID Temperature Controllers// TZ4 Series 317 STANDARD TZ4 FEATURES 5 Models In Sizes From 1/16 To 1/4 DIN • Two Alarm Outputs Standard Each With Nine Selectable Alarm Functions • Dual Display Process Value and Set Value • 2 Temperature Set Values • C-UL Recognized • One Button Auto-Tuning • ON-OFF or PID Control • Programmable Input (15 Selections) • Thermocouple, RTD, Voltage or Current • Selectable Fast or Slow Response PID • Slow Response Eliminates Overshoot • Programmable For Fahrenheit or Centigrade • Loop Break Alarm •...

Open the catalog to page 2

Marsh Bellofram DigiTec Division TZ4 Series PID Temperature Controllers - 3

\\\DIMENSIONS (INCHES/MILLIMETERS) \\\WIRING TZ4ST TZ4SP TZ4H TZ4M TZ4W TZ4L TZ4 Series Digitec Division atcdigitec.com 800.727.5646 318 PID Controllers // TZ4 Series
