Marsh Bellofram DigiTec Division TOS Series 1/16 DIN Analog Temperature Controller

Marsh Bellofram DigiTec Division TOS Series 1/16 DIN Analog Temperature Controller

Product catalog summary

Overview: The TOS Series 1/16 DIN Analog Temperature Controller is a cost-effective and simple-to-operate device primarily used for ON/OFF output applications. It is also available with proportional control options.

Key Features:

Economical control with analog setting.
Simple 8-pin plug-in installation.
Front panel LED indicates output status.
Compatible with J or K thermocouple input.
Offers relay or solid-state relay (SSR) driver output.

Specifications:

Input: J or K Thermocouple, RTD.
Operating Voltage: 100/240VAC, ±10%, 50/60 Hz.
Power Consumption: 2 VA @ 120 VAC.
Setting Method: Dial Scale.
Control Modes: ON/OFF/Proportional (Programmable).
Output: Relay SPDT, 2A @ 250 VAC or SSR 12 VDC ±2V, 20 mA.
Mounting: Front Panel (45mm² cut out).
Termination: 8-Pin Plug-In.
Weight: 4 oz. (Shipping: 5 oz.).

Model Number Configuration:

Output: R for Relay, S for SSR Driver.
Sensor: J for J Thermocouple, K for K Thermocouple, P for RTD.
Temperature Range: Various options from 0-200°F to 0-800°C.

Additional Information: Sockets for TOS are available for panel mount (600-3-0011) and DIN rail or base (600-3-0013).

Catalog excerpts

Marsh Bellofram DigiTec Division TOS Series 1/16 DIN Analog Temperature Controller-1

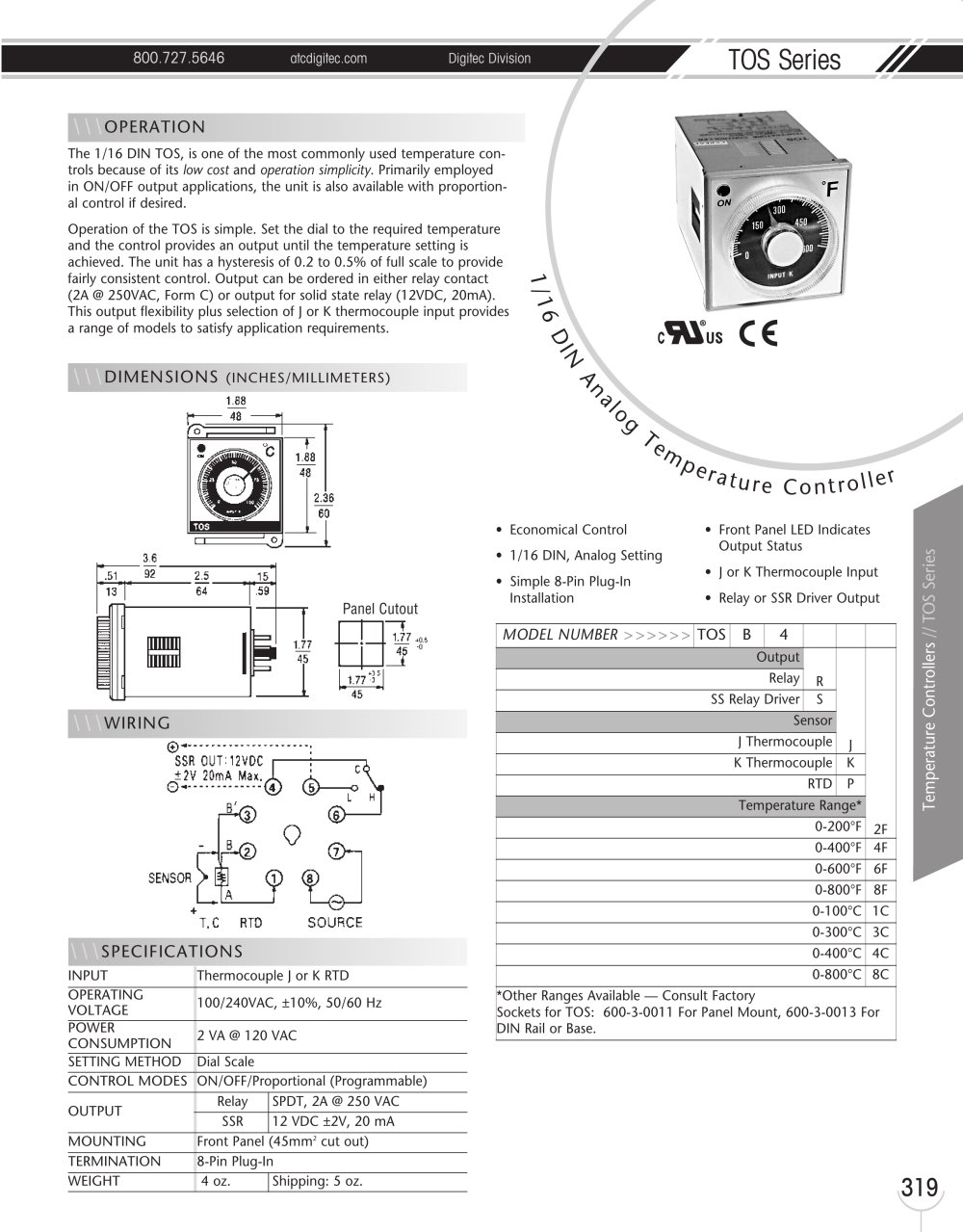

800.727.5646 atcdigitec.com Digitec Division TOS Series Temperature Controllers // TOS Series 319 1/16 DIN Ana l o g Temper a t ur e C o n t r o l l er The 1/16 DIN TOS, is one of the most commonly used temperature controls because of its low cost and operation simplicity. Primarily employed in ON/OFF output applications, the unit is also available with proportional control if desired. Operation of the TOS is simple. Set the dial to the required temperature and the control provides an output until the temperature setting is achieved. The unit has a hysteresis of 0.2 to 0.5% of full scale to provide fairly consistent control. Output can be ordered in either relay contact (2A @ 250VAC, Form C) or output for solid state relay (12VDC, 20mA). This output flexibility plus selection of J or K thermocouple input provides a range of models to satisfy application requirements. • Economical Control • 1/16 DIN, Analog Setting • Simple 8-Pin Plug-In Installation • Front Panel LED Indicates Output Status • J or K Thermocouple Input • Relay or SSR Driver Output Panel Cutout \\\OPERATION \\\DIMENSIONS (INCHES/MILLIMETERS) \\\WIRING \\\SPECIFICATIONS INPUT Thermocouple J or K RTD OPERATING VOLTAGE 100/240VAC, ±10%, 50/60 Hz POWER CONSUMPTION 2 VA @ 120 VAC SETTING METHOD Dial Scale CONTROL MODES ON/OFF/Proportional (Programmable) OUTPUT Relay SPDT, 2A @ 250 VAC SSR 12 VDC ±2V, 20 mA MOUNTING Front Panel (45mm2 cut out) TERMINATION 8-Pin Plug-In WEIGHT 4 oz. Shipping: 5 oz. MODEL NUMBER >>>>>> TOS B 4 Output R J 2F Relay SS Relay Driver S Sensor J Thermocouple K Thermocouple K RTD P Temperature Range* 0-200°F 0-400°F 4F 0-600°F 6F 0-800°F 8F 0-100°C 1C 0-300°C 3C 0-400°C 4C 0-800°C 8C *Other Ranges Available — Consult Factory Sockets for TOS: 600-3-0011 For Panel Mount, 600-3-0013 For DIN Rail or Base.
