Catalog excerpts

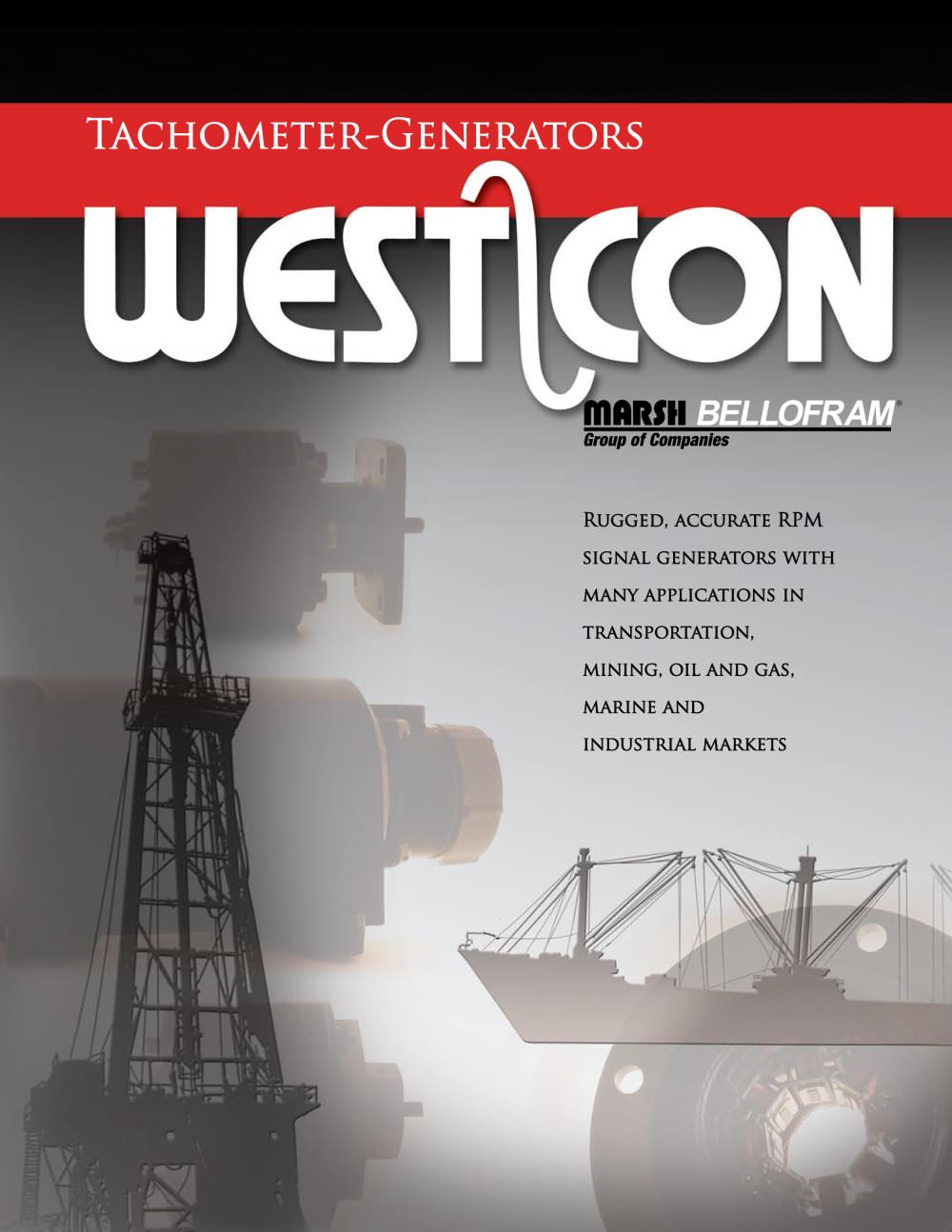

Rugged, accurate RPM signal generators with many applications in transportation, mining, oil and gas, marine and industrial markets Tachometer-Generators
Open the catalog to page 1
DC Tachometer-Generators ø 0.3740 Cal. Screw 1.560" 3.000" 4.660" 0.850" 3.620" (118.36mm) (9.5mm) (21.59mm) (39.62mm) (76.2mm) (91.95mm) .281" (6.63mm) DIA. 4 HOLES 1/4" square Drive Dog 1.875" 1.875" .560" 0.05" 5.00" 2.44" 3.00" 2.44" The model 750 DC Tachometer-Generator embodies a permanent magnet f ield surrounding a rotat ing armature. The commutator segment s are made from a special non-corrosive alloy which has an except ionally long life. The brushes are of a sel f-lubricat ing material and are carried in a sel f-aligning holder which equalizes the pres- • Rigid die-cast aluminum...
Open the catalog to page 2
12.30" 0.7490 .740" 5.25" 4.75" 4.77" 0.7490 .740" 5.25" 4.75" 4.77" 12.35" Splash-Proof model 750, Type W • Heavy-duty cast iron housing • Sealed for water wash down area’s • Base mounted tachometer • ½ NPT conduit junction box included • ¾” Diameter drive shaft supported by heavy duty ball bearings • 2.0 oz-in starting torque • Heavy-duty cast iron housing • UL Listed for Hazardous Locations Division 1, Class 1, Group D and Class 2, Groups F and G • Base mounted tachometer • ½ NPT conduit junction box included • ¾” Diameter drive shaft supported by heavy duty ball bearings • 2.0 oz-in...
Open the catalog to page 3
AC Tachometer-Generators 1/4" square Drive Dog 1.875" 1.875" .560" 0.05" 5.00" 2.44" 3.00" 2.44" The 758 Series of tachometers are used in low maintenance applicat ion requirement s . The 758 model embodies a stator surrounding a rotat ing AlNICO permanent magnet . The output of the generator for voltage responsive systems is temperature compensated and is propor t ional to the speed. The ball bearings need not be lubricated • ½” diameter drive shaft • Base mounted configuration • 2.5 oz-in starting torque • Standard 7/8” S.A.E. screw type mounting • 3/16” Drive Dog Shaft • 2.0 oz-in...
Open the catalog to page 4
Splash-Proof model 758, Type W • Heavy-duty cast-iron base-mounting type housing • ¾” diameter drive shaft supported by heavy duty ball bearings • Conduit junction box with ½ NPT opening • Designed for locations which are subject to mechanical abuse or water spray • 3.0 oz-in starting torque • Heavy-duty cast-iron base-mounting type housing • ¾” diameter drive shaft supported by heavy duty ball bearings • Conduit junction box with ½ NPT opening • UL Listed for Hazardous Locations Division 1, Class 1, Group D and Class 2, Groups F and G • 3.0 oz-in starting torque 800.727.5646 •...
Open the catalog to page 5
The rotor of the generator uni t should be mounted to the t rue center of the shaf t wi th ext reme care, par t icularly in higher speed applicat ions . The relat ively small iner t ia of the rotor makes i t possible to secure i t to the shaf t wi th a right hand thread regardless of the direct ion of rotat ion. I t is recommended that a steel screw having an SAE thread be used to permi t maximum t ightening. NOTE: DO NOT press f i t the rotor to the shaf t , or the rotor will shat ter because of the bri t t le nature of the magnet ic rotor material. THIS SURFACE MUST BE FLAT & TRUE METHOD...
Open the catalog to page 6
• Provides protection for terminals, and has a ½ NPT connection for conduit 1.20" 2.82" 1/2 NPT Binding Post Conduit Box model J2, J2R, M2 and K3 Metallic leaf brushes are of an alloy which will wear before the commutator bars . Brush replacement is a simple f ield operat ion. 1.08" 1.55" 1.36" 1/2 N PT Accessories Provides protection for the terminals, and has a ½ NPT connection for conduit. Model 750 Catalog No. Types J2, J2R, M2 and K3 9933-0143156 Binding Post Conduit Box model 750 Types J2, J2R, M2 and K3 Binding Post Conduit Box model 758 Types AB, JB2 and KB3 Model 758 Catalog No....
Open the catalog to page 7
IMPORTANT NOTICE Our recommendat ions , if any, for the use of this product are based on test s believed to be reliable. The greatest care is exercised in the select ion of our raw materials and in our manufacturing operat ions . However, since the use of this product is beyond the cont rol of the manufacturer, no guarantee or warranty, express or implied is made as to such use or ef fect s incidental to such use, handling or possession or the result s to be obtained, wether in accordance wi th the direct ions or claimed so to be. The manufacturer expressly disclaims responsibili ty...
