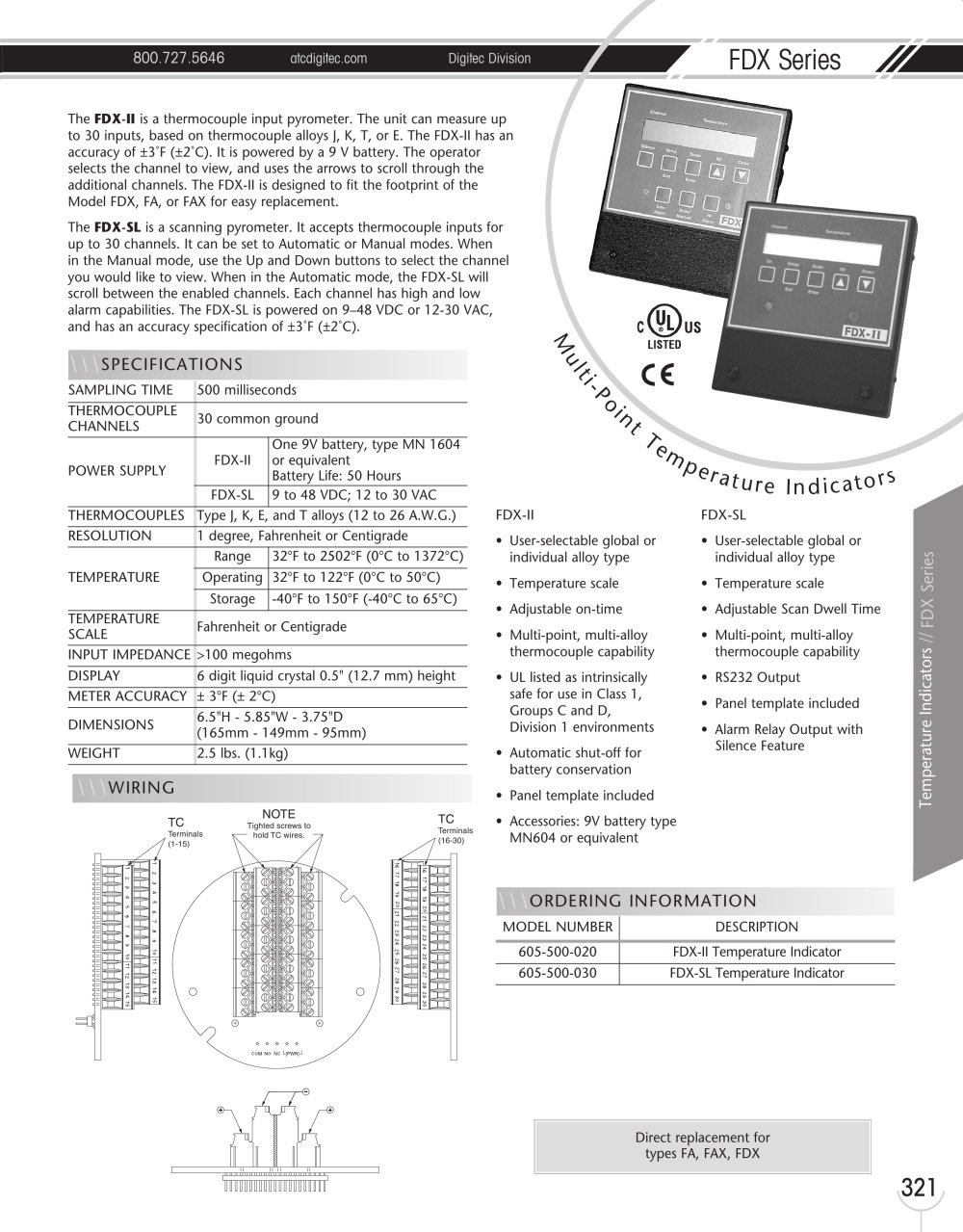

800.727.5646 atcdigitec.com Digitec Division FDX Series Temperature Indicators // FDX Series 321 The FDX-II is a thermocouple input pyrometer. The unit can measure up to 30 inputs, based on thermocouple alloys J, K, T, or E. The FDX-II has an accuracy of ±3°F (±2°C). It is powered by a 9 V battery. The operator selects the channel to view, and uses the arrows to scroll through the additional channels. The FDX-II is designed to fit the footprint of the Model FDX, FA, or FAX for easy replacement. The FDX-SL is a scanning pyrometer. It accepts thermocouple inputs for up to 30 channels. It can be set to Automatic or Manual modes. When in the Manual mode, use the Up and Down buttons to select the channel you would like to view. When in the Automatic mode, the FDX-SL will scroll between the enabled channels. Each channel has high and low alarm capabilities. The FDX-SL is powered on 9–48 VDC or 12-30 VAC, and has an accuracy specification of ±3°F (±2°C). Mul t i - Po in t Temp e r a t u r e I n d i c a t o r s \\\SPECIFICATIONS SAMPLING TIME 500 milliseconds THERMOCOUPLE CHANNELS 30 common ground POWER SUPPLY FDX-II One 9V battery, type MN 1604 or equivalent Battery Life: 50 Hours FDX-SL 9 to 48 VDC; 12 to 30 VAC THERMOCOUPLES Type J, K, E, and T alloys (12 to 26 A.W.G.) RESOLUTION 1 degree, Fahrenheit or Centigrade TEMPERATURE Range 32°F to 2502°F (0°C to 1372°C) Operating 32°F to 122°F (0°C to 50°C) Storage -40°F to 150°F (-40°C to 65°C) TEMPERATURE SCALE Fahrenheit or Centigrade INPUT IMPEDANCE >100 megohms DISPLAY 6 digit liquid crystal 0.5" (12.7 mm) height METER ACCURACY ± 3°F (± 2°C) DIMENSIONS 6.5"H - 5.85"W - 3.75"D (165mm - 149mm - 95mm) WEIGHT 2.5 lbs. (1.1kg) \\\WIRING NOTE Tighted screws to hold TC wires. TC Terminals (1-15) TC Terminals (16-30) FDX-II • User-selectable global or individual alloy type • Temperature scale • Adjustable on-time • Multi-point, multi-alloy thermocouple capability • UL listed as intrinsically safe for use in Class 1, Groups C and D, Division 1 environments • Automatic shut-off for battery conservation • Panel template included • Accessories: 9V battery type MN604 or equivalent FDX-SL • User-selectable global or individual alloy type • Temperature scale • Adjustable Scan Dwell Time • Multi-point, multi-alloy thermocouple capability • RS232 Output • Panel template included • Alarm Relay Output with Silence Feature Direct replacement for types FA, FAX, FDX \\\ORDERING INFORMATION MODEL NUMBER DESCRIPTION 605-500-020 FDX-II Temperature Indicator 605-500-030 FDX-SL Temperature Indicator
