Marsh Bellofram DigiTec Division DMT 300 Series HMI Panel Display - 1

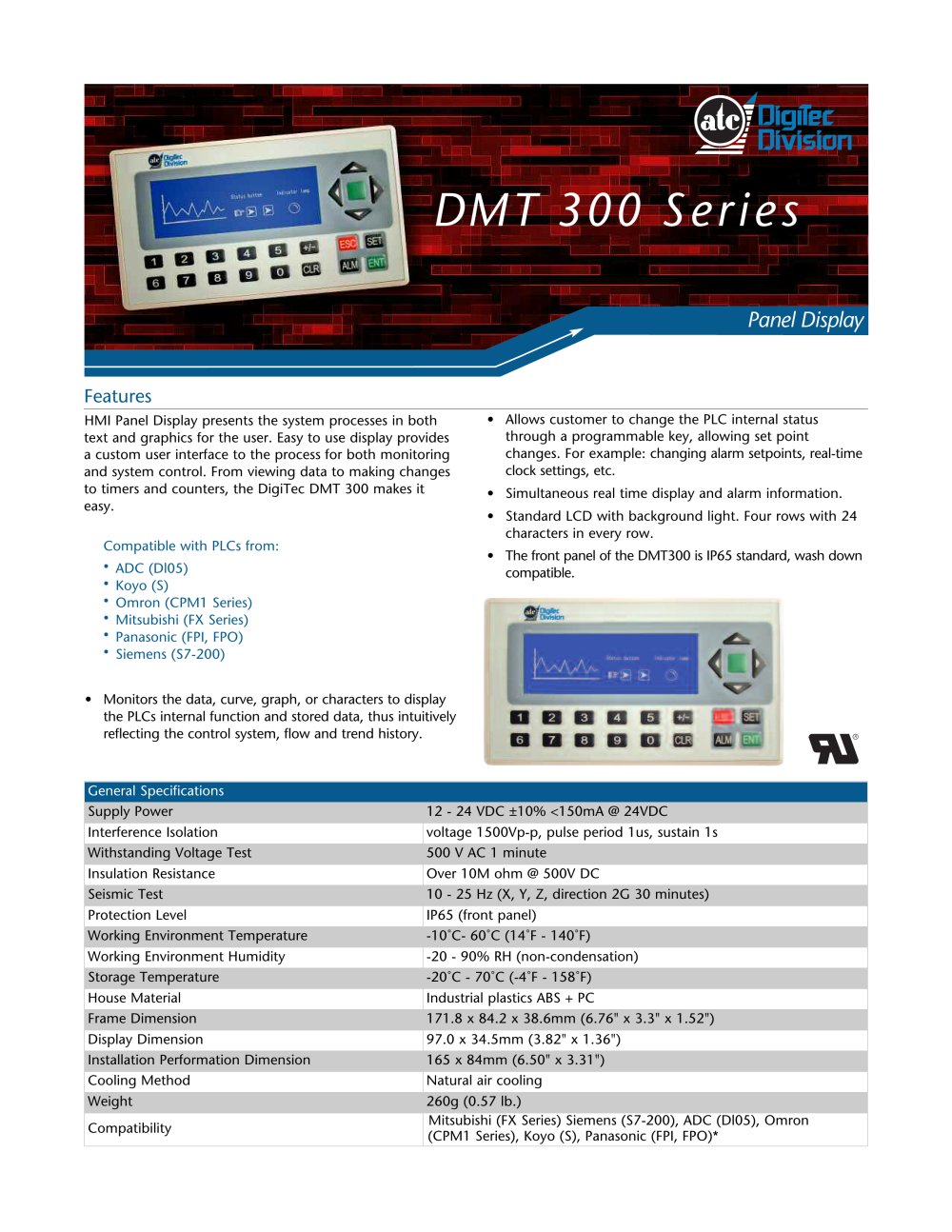

DMT 300 Ser ies Panel Display General Specifications Supply Power 12 - 24 VDC ±10% <150mA @ 24VDC Interference Isolation voltage 1500Vp-p, pulse period 1us, sustain 1s Withstanding Voltage Test 500 V AC 1 minute Insulation Resistance Over 10M ohm @ 500V DC Seismic Test 10 - 25 Hz (X, Y, Z, direction 2G 30 minutes) Protection Level IP65 (front panel) Working Environment Temperature -10°C- 60°C (14°F - 140°F) Working Environment Humidity -20 - 90% RH (non-condensation) Storage Temperature -20°C - 70°C (-4°F - 158°F) House Material Industrial plastics ABS + PC Frame Dimension 171.8 x 84.2 x 38.6mm (6.76" x 3.3" x 1.52") Display Dimension 97.0 x 34.5mm (3.82" x 1.36") Installation Performation Dimension 165 x 84mm (6.50" x 3.31") Cooling Method Natural air cooling Weight 260g (0.57 lb.) Compatibility Mitsubishi (FX Series) Siemens (S7-200), ADC (Dl05), Omron (CPM1 Series), Koyo (S), Panasonic (FPI, FPO)* Features HMI Panel Display presents the system processes in both text and graphics for the user. Easy to use display provides a custom user interface to the process for both monitoring and system control. From viewing data to making changes to timers and counters, the DigiTec DMT 300 makes it easy. Compatible with PLCs from: • ADC (Dl05) • Koyo (S) • Omron (CPM1 Series) • Mitsubishi (FX Series) • Panasonic (FPI, FPO) • Siemens (S7-200) • Monitors the data, curve, graph, or characters to display the PLCs internal function and stored data, thus intuitively reflecting the control system, flow and trend history. • Allows customer to change the PLC internal status through a programmable key, allowing set point changes. For example: changing alarm setpoints, real-time clock settings, etc. • Simultaneous real time display and alarm information. • Standard LCD with background light. Four rows with 24 characters in every row. • The front panel of the DMT300 is IP65 standard, wash down compatible.

Open the catalog to page 1

Marsh Bellofram DigiTec Division DMT 300 Series HMI Panel Display - 2

Panel Cutout DIN rail installation (standard 35mm) Dimensions Surface Mount 98.8 mm 85 mm 91.41 mm 165 mm 171.8 mm 70.00 mm Hardware Specifications Screen 4.3" LCD Display Resolution 192 x 64 Pixels LCM Life 50,000 hours at 25°±2°C, 65 ±10%RH Brightness 60 cd/m2 Color Blue Contrast Adjustable Resistor Backlight Longlife Blue LED Memory 110KB Flash ROM Communication Port PC RS232 & PLC RS485/422 & PLC RS232 Function Key 14 Programmable Buttons Allowable Power Disruption 20mS DMT300 LTATC0274 1M 3/08 PLC Installation Dimensions (mm) Marsh Bellofram Group of Companies 8019 Ohio River Blvd,...
