Marsh Bellofram DigiTec Division D3980 Series Intelligent Remote Display

Marsh Bellofram DigiTec Division D3980 Series Intelligent Remote Display

Product catalog summary

Overview: The Digitec D3980 is an intelligent remote display designed for flexibility in applications using RS232 serial input. It features a 6-digit window for data extraction within a data stream.

Specifications:

Serial Input: Serial ASCII RS232C, capable of receiving, processing, and displaying up to 6 digits of data. The decimal point is programmable via the front keypad.
Baud Rate: Standard 9600 baud rate with an optional 1200 baud rate available upon request.
Data Format: 8 data bits, 1 stop bit, no parity check.
Display Format: 6-digit (999,999) or 5-digit (-99,999) counts.

Features:

Extracts 6-digit numeric data from a data stream.
Serves as a remote display for all 3800/3900 models with the "T" option (Serial Output).
Converts serial to analog output.
Provides numeric display for PC/PLC serial output with alarm relay capability.
Scales and offsets raw serial data to display as intelligent information.
Displays direct input from digital transmitters.

Model Options:

Model Number: D3980
Relay Outputs: Available
Analog Outputs: H Option includes P Option
Excitation: 10 VDC and 24 VDC
Power: 220 VAC powered
Baud Input: 1200 Baud Input (B12)

Catalog excerpts

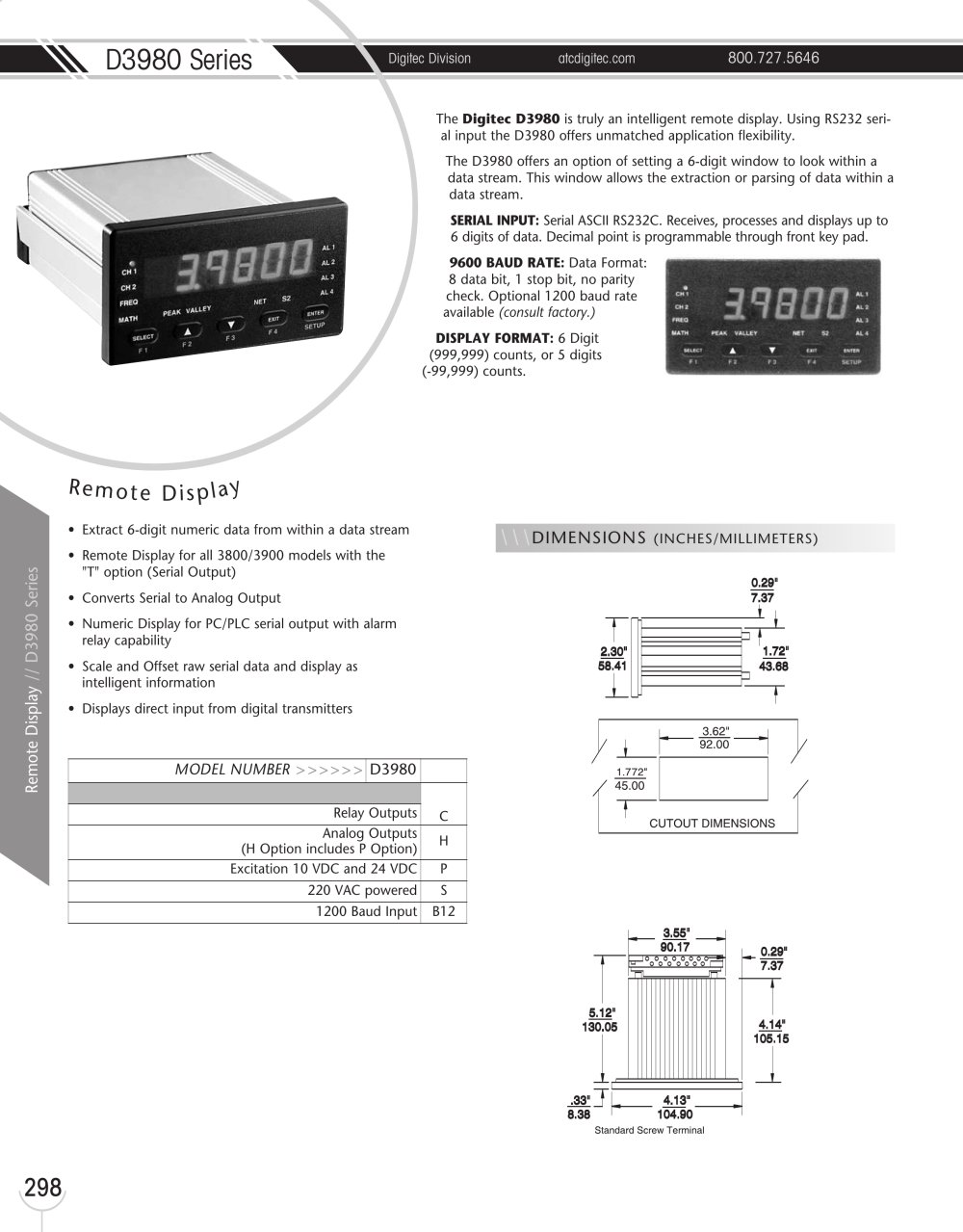

Marsh Bellofram DigiTec Division D3980 Series Intelligent Remote Display-1

D3980 Series Digitec Division atcdigitec.com 800.727.5646 298 Remote Display // D3980 Series The Digitec D3980 is truly an intelligent remote display. Using RS232 serial input the D3980 offers unmatched application flexibility. The D3980 offers an option of setting a 6-digit window to look within a data stream. This window allows the extraction or parsing of data within a data stream. SERIAL INPUT: Serial ASCII RS232C. Receives, processes and displays up to 6 digits of data. Decimal point is programmable through front key pad. 9600 BAUD RATE: Data Format: 8 data bit, 1 stop bit, no parity check. Optional 1200 baud rate available (consult factory.) DISPLAY FORMAT: 6 Digit (999,999) counts, or 5 digits (-99,999) counts. R e m o t e D i s p l a y \\\DIMENSIONS (INCHES/MILLIMETERS) • Extract 6-digit numeric data from within a data stream • Remote Display for all 3800/3900 models with the "T" option (Serial Output) • Converts Serial to Analog Output • Numeric Display for PC/PLC serial output with alarm relay capability • Scale and Offset raw serial data and display as intelligent information • Displays direct input from digital transmitters MODEL NUMBER >>>>>> D3980 Relay Outputs C Analog Outputs (H Option includes P Option) H Excitation 10 VDC and 24 VDC P 220 VAC powered S 1200 Baud Input B12
