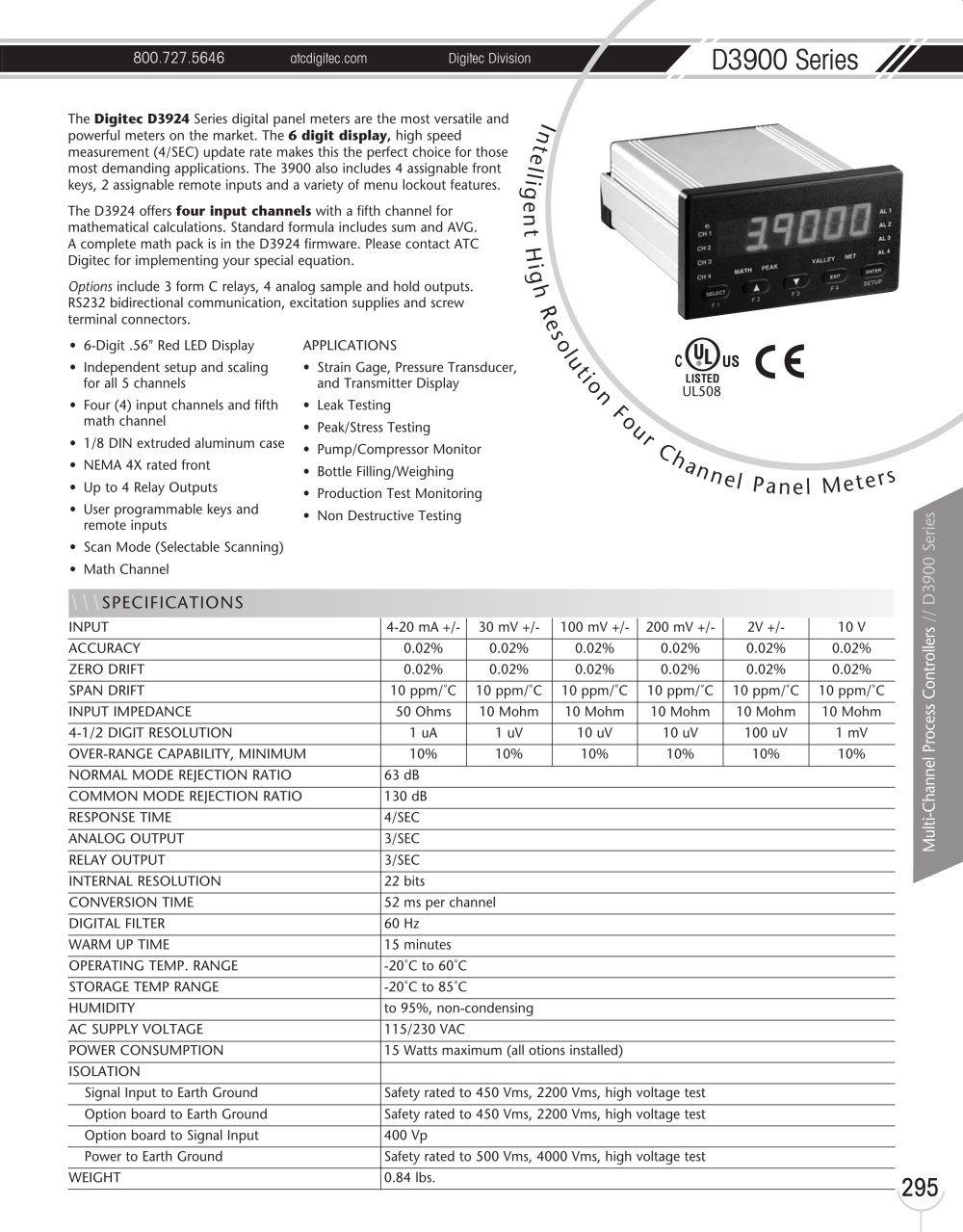

Marsh Bellofram DigiTec Division D3900A Series Intelligent High Resolution Four-channel Panel Meters - 1

800.727.5646 atcdigitec.com Digitec Division D3900 Series Multi-Channel Process Controllers // D3900 Series 295 The Digitec D3924 Series digital panel meters are the most versatile and powerful meters on the market. The 6 digit display, high speed measurement (4/SEC) update rate makes this the perfect choice for those most demanding applications. The 3900 also includes 4 assignable front keys, 2 assignable remote inputs and a variety of menu lockout features. The D3924 offers four input channels with a fifth channel for mathematical calculations. Standard formula includes sum and AVG. A complete math pack is in the D3924 firmware. Please contact ATC Digitec for implementing your special equation. Options include 3 form C relays, 4 analog sample and hold outputs. RS232 bidirectional communication, excitation supplies and screw terminal connectors. Intelligent High Resolut ion F o u r Cha n n e l P a n e l M e t e r s • 6-Digit .56" Red LED Display • Independent setup and scaling for all 5 channels • Four (4) input channels and fifth math channel • 1/8 DIN extruded aluminum case • NEMA 4X rated front • Up to 4 Relay Outputs • User programmable keys and remote inputs • Scan Mode (Selectable Scanning) • Math Channel APPLICATIONS • Strain Gage, Pressure Transducer, and Transmitter Display • Leak Testing • Peak/Stress Testing • Pump/Compressor Monitor • Bottle Filling/Weighing • Production Test Monitoring • Non Destructive Testing \\\SPECIFICATIONS INPUT 4-20 mA +/- 30 mV +/- 100 mV +/- 200 mV +/- 2V +/- 10 V ACCURACY 0.02% 0.02% 0.02% 0.02% 0.02% 0.02% ZERO DRIFT 0.02% 0.02% 0.02% 0.02% 0.02% 0.02% SPAN DRIFT 10 ppm/°C 10 ppm/°C 10 ppm/°C 10 ppm/°C 10 ppm/°C 10 ppm/°C INPUT IMPEDANCE 50 Ohms 10 Mohm 10 Mohm 10 Mohm 10 Mohm 10 Mohm 4-1/2 DIGIT RESOLUTION 1 uA 1 uV 10 uV 10 uV 100 uV 1 mV OVER-RANGE CAPABILITY, MINIMUM 10% 10% 10% 10% 10% 10% NORMAL MODE REJECTION RATIO 63 dB COMMON MODE REJECTION RATIO 130 dB RESPONSE TIME 4/SEC ANALOG OUTPUT 3/SEC RELAY OUTPUT 3/SEC INTERNAL RESOLUTION 22 bits CONVERSION TIME 52 ms per channel DIGITAL FILTER 60 Hz WARM UP TIME 15 minutes OPERATING TEMP. RANGE -20°C to 60°C STORAGE TEMP RANGE -20°C to 85°C HUMIDITY to 95%, non-condensing AC SUPPLY VOLTAGE 115/230 VAC POWER CONSUMPTION 15 Watts maximum (all otions installed) ISOLATION Signal Input to Earth Ground Safety rated to 450 Vms, 2200 Vms, high voltage test Option board to Earth Ground Safety rated to 450 Vms, 2200 Vms, high voltage test Option board to Signal Input 400 Vp Power to Earth Ground Safety rated to 500 Vms, 4000 Vms, high voltage test WEIGHT 0.84 lbs. UL508

Open the catalog to page 1

Marsh Bellofram DigiTec Division D3900A Series Intelligent High Resolution Four-channel Panel Meters - 2

D3900 Series Digitec Division atcdigitec.com 800.727.5646 296 Multi-Channel Process Controllers // D3900 Series 2 TYPES OF CALIBRATION: USER - calibration allows the entry of the low and high input values and the corresponding low and high display engineering values. LOAD - calibration allows setup via known input values. Simply apply the low input and set its corresponding display value, then apply the high input and set its value. The low and high values can be programmed at different times and then enabled. PROGRAM MENU STEPS LOCKOUT: The user can program the majority of the menu steps...

Open the catalog to page 2

Marsh Bellofram DigiTec Division D3900A Series Intelligent High Resolution Four-channel Panel Meters - 3

800.727.5646 atcdigitec.com Digitec Division D3900 Series Multi-Channel Process Controllers // D3900 Series 297 STANDARD TERMINAL 30-Pin Double Sided Screw Terminal (X Option) \\\DIMENSIONS (INCHES/MILLIMETERS) MODEL NUMBER >>>>>> D3924 Channel D3924 C FOUR CHANNEL: Scan Mode; 1/8 DIN; 6-Digit LED; NEMA 4X; Fifth (5th) math channel Options 3 relays (Form C for Alarms) *Combination of Option C and Option H CH Combination of Option C and Option P CP Factory Scaling (provide input range, display range) F *16 bit 4 analog sample and hold outputs (4-20mA, 0-10 VDC) —includes Option P H...

Open the catalog to page 3
