Marsh Bellofram DigiTec Division D3300 Series Economical Process Indicator

Product catalog summary

Overview: The D3300 Series is a basic display meter series that complements the D3100 Series. It lacks relay or analog outputs but shares other features and specifications with the D3100 Series.

Voltage/Current Models (D3310/D3314 Series): These models come standard with scaling. Refer to the Range Chart for specific ranges.

Process Models (D3320/D3324 Series): Model D3320 offers 3-1/2 digit resolution, while D3324 provides 4-1/2 digit resolution. They support inputs for 4-20mA, 0-10 VDC, and 1-5 VDC, with selectable excitation supplies of 10 VDC or 24 VDC.

Thermocouple Temperature Models (D3330/D3334 Series): Model D3330 has 1° resolution, and D3334 has 0.1° resolution. Temperature ranges include J type (-100°C to +700°C) and K type (-100°C to +1200°C). The meter flashes all digits if the thermocouple opens or wires become faulty.

Strain Gage Meter (D3340/D3344 Series): These models have a 20mV input with D3340 offering 3-1/2 digit display and 10µV resolution, and D3344 offering 4-1/2 digit display and 1µV resolution. They include standard scaling and selectable excitation supplies.

AC RMS Meter (D3350/D3354 Series): These models come standard with scaling. Refer to the Range Chart for specific ranges.

RTD Temperature Models (D3360/D3364 Series): Model D3360 has 1° resolution, and D3364 has 0.1° resolution, covering a temperature range of -148° to +1472°F (-100° to +800°C).

AC Average Sensing Models (D3370/D3374 Series): These models are standard with scaling. Refer to the Range Chart for specific ranges.

Common Specifications: The series features a dual slope A/D with 2.5 reading SEC, operates on 115/230 VAC, and functions within a temperature range of 32° to 122°F (0° to 50°C). It has a compact 1/8 DIN case, bright LED display, and is drip-proof and dust-tight with a NEMA 12 front cover.

Range Chart: The document provides detailed input ranges for various models, including voltage, current, and process displays.

Catalog excerpts

Marsh Bellofram DigiTec Division D3300 Series Economical Process Indicator-1

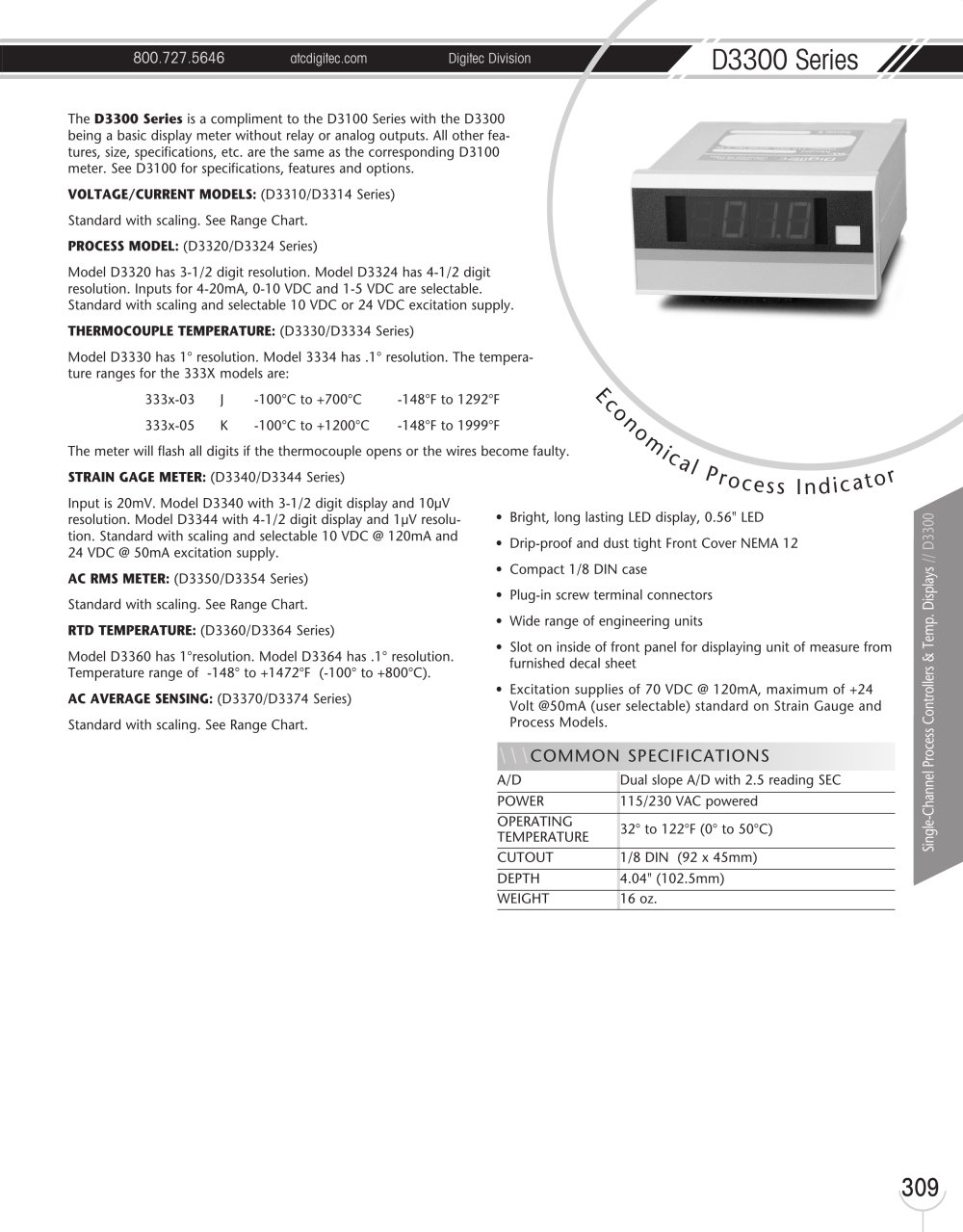

800.727.5646 atcdigitec.com Digitec Division 309 The D3300 Series is a compliment to the D3100 Series with the D3300 being a basic display meter without relay or analog outputs. All other features, size, specifications, etc. are the same as the corresponding D3100 meter. See D3100 for specifications, features and options. VOLTAGE/CURRENT MODELS: (D3310/D3314 Series) Standard with scaling. See Range Chart. PROCESS MODEL: (D3320/D3324 Series) Model D3320 has 3-1/2 digit resolution. Model D3324 has 4-1/2 digit resolution. Inputs for 4-20mA, 0-10 VDC and 1-5 VDC are selectable. Standard with scaling and selectable 10 VDC or 24 VDC excitation supply. THERMOCOUPLE TEMPERATURE: (D3330/D3334 Series) Model D3330 has 1° resolution. Model 3334 has .1° resolution. The temperature ranges for the 333X models are: 333x-03 J -100°C to +700°C -148°F to 1292°F 333x-05 K -100°C to +1200°C -148°F to 1999°F The meter will flash all digits if the thermocouple opens or the wires become faulty. STRAIN GAGE METER: (D3340/D3344 Series) Input is 20mV. Model D3340 with 3-1/2 digit display and 10ìV resolution. Model D3344 with 4-1/2 digit display and 1ìV resolution. Standard with scaling and selectable 10 VDC @ 120mA and 24 VDC @ 50mA excitation supply. AC RMS METER: (D3350/D3354 Series) Standard with scaling. See Range Chart. RTD TEMPERATURE: (D3360/D3364 Series) Model D3360 has 1°resolution. Model D3364 has .1° resolution. Temperature range of -148° to +1472°F (-100° to +800°C). AC AVERAGE SENSING: (D3370/D3374 Series) Standard with scaling. See Range Chart. E co n omi c a l P r o ce s s I n d i c a t or Single-Channel Process Controllers & Temp. Displays // D3300 D3300 Series \\\COMMON SPECIFICATIONS A/D Dual slope A/D with 2.5 reading SEC POWER 115/230 VAC powered OPERATING TEMPERATURE 32° to 122°F (0° to 50°C) CUTOUT 1/8 DIN (92 x 45mm) DEPTH 4.04" (102.5mm) WEIGHT 16 oz. • Bright, long lasting LED display, 0.56" LED • Drip-proof and dust tight Front Cover NEMA 12 • Compact 1/8 DIN case • Plug-in screw terminal connectors • Wide range of engineering units • Slot on inside of front panel for displaying unit of measure from furnished decal sheet • Excitation supplies of 70 VDC @ 120mA, maximum of +24 Volt @50mA (user selectable) standard on Strain Gauge and Process Models.
