Marsh Bellofram DigiTec Division D3200 Series Universal Input Digital Panel Meter

Marsh Bellofram DigiTec Division D3200 Series Universal Input Digital Panel Meter
2Pages

Catalog excerpts

Marsh Bellofram DigiTec Division D3200 Series Universal Input Digital Panel Meter - 1

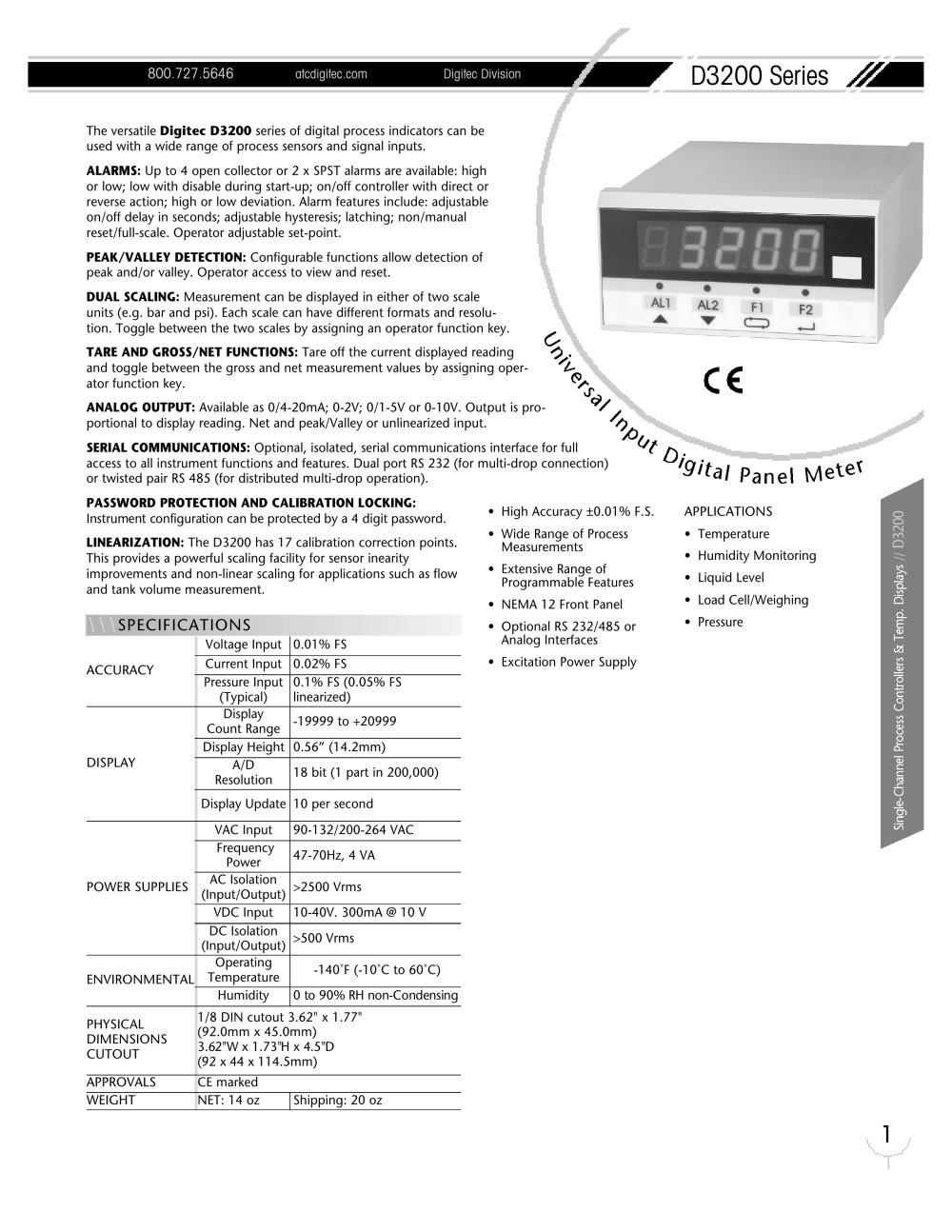

800.727.5646 atcdigitec.com Digitec Division D3200 Series 1 The versatile Digitec D3200 series of digital process indicators can be used with a wide range of process sensors and signal inputs. ALARMS: Up to 4 open collector or 2 x SPST alarms are available: high or low; low with disable during start-up; on/off controller with direct or reverse action; high or low deviation. Alarm features include: adjustable on/off delay in seconds; adjustable hysteresis; latching; non/manual reset/full-scale. Operator adjustable set-point. PEAK/VALLEY DETECTION: Configurable functions allow detection of peak and/or valley. Operator access to view and reset. DUAL SCALING: Measurement can be displayed in either of two scale units (e.g. bar and psi). Each scale can have different formats and resolution. Toggle between the two scales by assigning an operator function key. TARE AND GROSS/NET FUNCTIONS: Tare off the current displayed reading and toggle between the gross and net measurement values by assigning operator function key. ANALOG OUTPUT: Available as 0/4-20mA; 0-2V; 0/1-5V or 0-10V. Output is proportional to display reading. Net and peak/Valley or unlinearized input. SERIAL COMMUNICATIONS: Optional, isolated, serial communications interface for full access to all instrument functions and features. Dual port RS 232 (for multi-drop connection) or twisted pair RS 485 (for distributed multi-drop operation). PASSWORD PROTECTION AND CALIBRATION LOCKING: Instrument configuration can be protected by a 4 digit password. LINEARIZATION: The D3200 has 17 calibration correction points. This provides a powerful scaling facility for sensor inearity improvements and non-linear scaling for applications such as flow and tank volume measurement. • High Accuracy ±0.01% F.S. • Wide Range of Process Measurements • Extensive Range of Programmable Features • NEMA 12 Front Panel • Optional RS 232/485 or Analog Interfaces • Excitation Power Supply APPLICATIONS • Temperature • Humidity Monitoring • Liquid Level • Load Cell/Weighing \ \ \S P E C I F I C A T I O N S • Pressure ACCURACY Voltage Input 0.01% FS Current Input 0.02% FS Pressure Input (Typical) 0.1% FS (0.05% FS linearized) DISPLAY Display Count Range -19999 to +20999 Display Height 0.56” (14.2mm) A/D Resolution 18 bit (1 part in 200,000) Display Update 10 per second POWER SUPPLIES VAC Input 90-132/200-264 VAC Frequency Power 47-70Hz, 4 VA AC Isolation (Input/Output) >2500 Vrms VDC Input 10-40V. 300mA @ 10 V DC Isolation (Input/Output) >500 Vrms ENVIRONMENTAL Operating Temperature -140°F (-10°C to 60°C) Humidity 0 to 90% RH non-Condensing PHYSICAL DIMENSIONS CUTOUT 1/8 DIN cutout 3.62" x 1.77" (92.0mm x 45.0mm) 3.62"W x 1.73"H x 4.5"D (92 x 44 x 114.5mm) APPROVALS CE marked WEIGHT NET: 14 oz Shipping: 20 oz

Open the catalog to page 1

Marsh Bellofram DigiTec Division D3200 Series Universal Input Digital Panel Meter - 2

D3200 Series Digitec Division atcdigitec.com 800.727.5646 2 UNIVERSAL INPUT MODELS Model 3220 with 4 Open Collector Outputs Model 3221 with SPST Relay Outputs • 3220’s open collectors are rated 48VDC @ .5A maximum • 3221’s relays are rated 250VAC @ 5A, 24VDC @ 1A maximum No jumper setting or recalibration required when different sensor type is selected. UNIVERSAL INPUT SELECTIONS VIA KEYPAD ARE: • DC voltage ranges of ±20mV to ±20V (Accuracy of 0.01%) • ±20mA DC (Accuracy of 0.02%) • Temperature selection of: 1. Thermocouple selections of prelinearized J, K, N, T, R, S (Accuracy of .2°C for...
