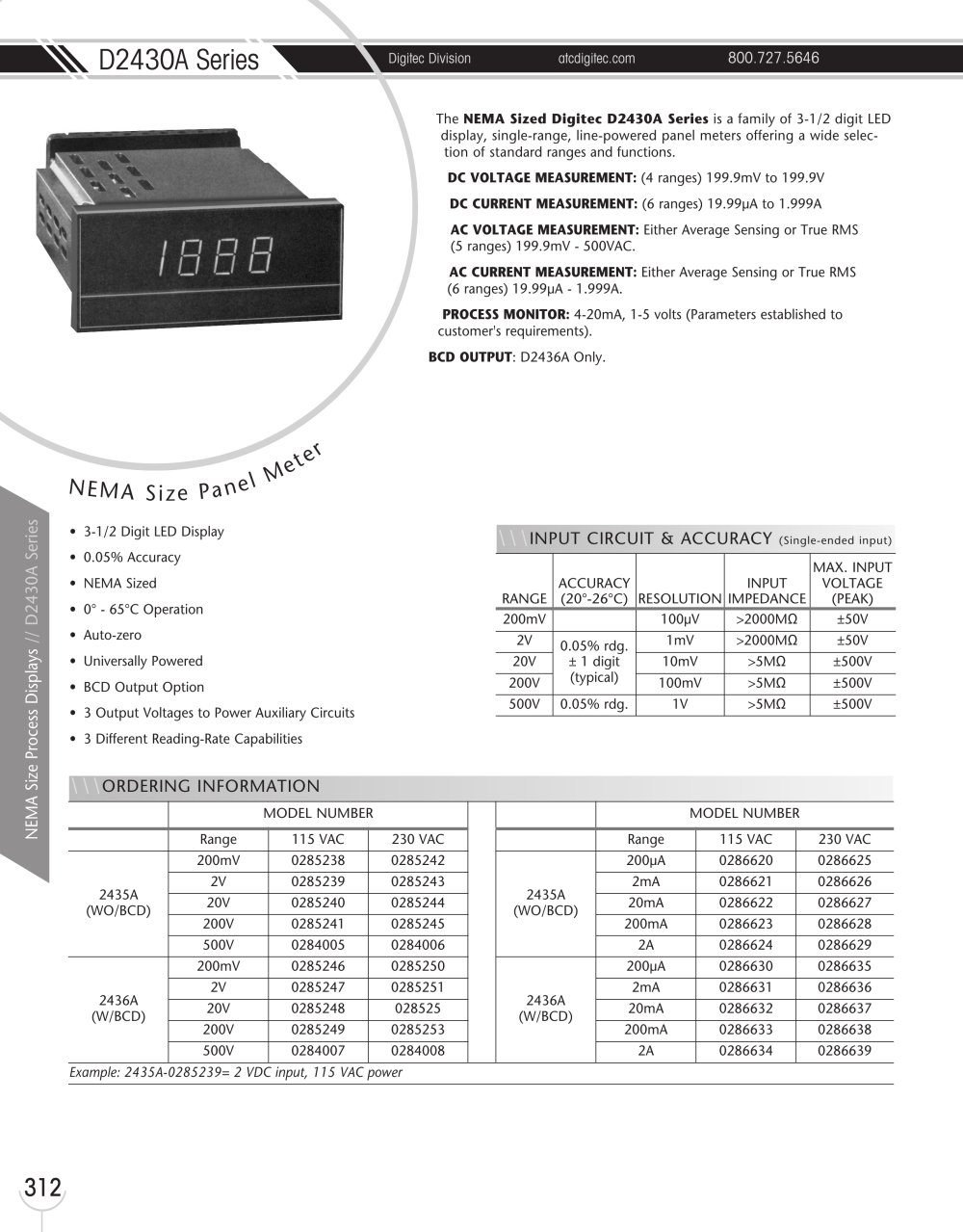

D2430A Series Digitec Division atcdigitec.com 800.727.5646 312 NEMA Size Process Displays // D2430A Series The NEMA Sized Digitec D2430A Series is a family of 3-1/2 digit LED display, single-range, line-powered panel meters offering a wide selection of standard ranges and functions. DC VOLTAGE MEASUREMENT: (4 ranges) 199.9mV to 199.9V DC CURRENT MEASUREMENT: (6 ranges) 19.99ìA to 1.999A AC VOLTAGE MEASUREMENT: Either Average Sensing or True RMS (5 ranges) 199.9mV - 500VAC. AC CURRENT MEASUREMENT: Either Average Sensing or True RMS (6 ranges) 19.99ìA - 1.999A. PROCESS MONITOR: 4-20mA, 1-5 volts (Parameters established to customer's requirements). BCD OUTPUT: D2436A Only. N E M A S i z e P ane l Me t e r \\\INPUT CIRCUIT & ACCURACY (Single-ended input) RANGE ACCURACY (20°-26°C) RESOLUTION INPUT IMPEDANCE MAX. INPUT VOLTAGE (PEAK) 200mV 100ìV >2000M½ ±50V 2V 0.05% rdg. ± 1 digit (typical) 1mV >2000M½ ±50V 20V 10mV >5M½ ±500V 200V 100mV >5M½ ±500V 500V 0.05% rdg. 1V >5M½ ±500V • 3-1/2 Digit LED Display • 0.05% Accuracy • NEMA Sized • 0° - 65°C Operation • Auto-zero • Universally Powered • BCD Output Option • 3 Output Voltages to Power Auxiliary Circuits • 3 Different Reading-Rate Capabilities \\\ORDERING INFORMATION MODEL NUMBER MODEL NUMBER Range 115 VAC 230 VAC Range 115 VAC 230 VAC 2435A (WO/BCD) 200mV 0285238 0285242 2435A (WO/BCD) 200ìA 0286620 0286625 2V 0285239 0285243 2mA 0286621 0286626 20V 0285240 0285244 20mA 0286622 0286627 200V 0285241 0285245 200mA 0286623 0286628 500V 0284005 0284006 2A 0286624 0286629 2436A (W/BCD) 200mV 0285246 0285250 2436A (W/BCD) 200ìA 0286630 0286635 2V 0285247 0285251 2mA 0286631 0286636 20V 0285248 028525 20mA 0286632 0286637 200V 0285249 0285253 200mA 0286633 0286638 500V 0284007 0284008 2A 0286634 0286639 Example: 2435A-0285239= 2 VDC input, 115 VAC power
Open the catalog to page 1
800.727.5646 atcdigitec.com Digitec Division NEMA Size Process Displays // D2430A Series 313 D2430A Series \\\SPECIFICATIONS DISPLAY Scale length ±1999 Type of display 0.55" high LED. Polarity Negative input: Minus sign at far left Positive input Plus sign at far left 2435A/2436A. Overrange Indication The most significant digit will remain permanently on while all other digits will be blanked. Polarity sign will be preserved. Decimal-points Available at any of the following three positions by connecting the selected terminal to Pin N: 1.XXX 1 X.XX 1 XX.X RANGES DC Volts 200mV, 2V, 20V, 200V CONVERSION...
