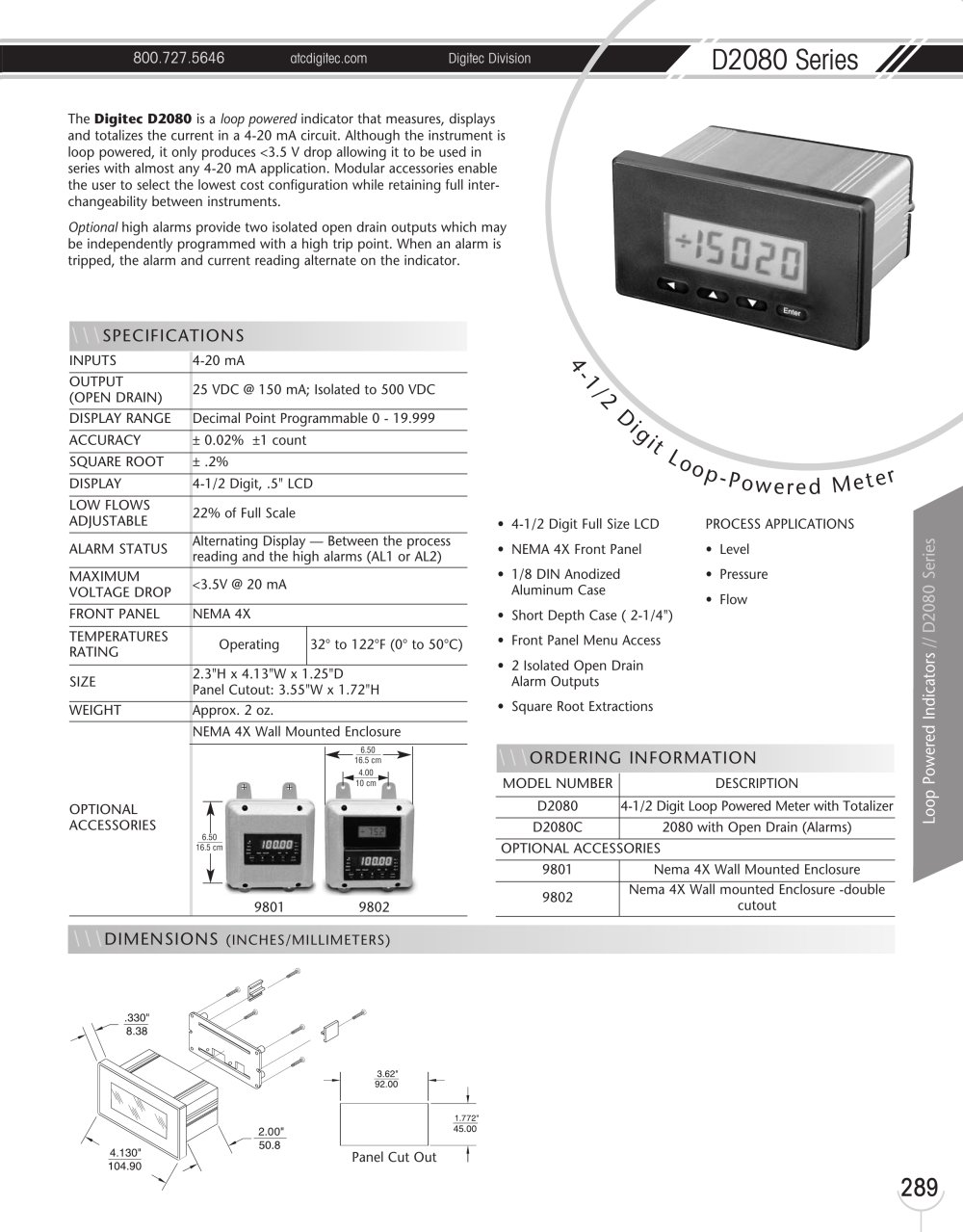

800.727.5646 atcdigitec.com Digitec Division D2080 Series Loop Powered Indicators // D2080 Series 289 The Digitec D2080 is a loop powered indicator that measures, displays and totalizes the current in a 4-20 mA circuit. Although the instrument is loop powered, it only produces <3.5 V drop allowing it to be used in series with almost any 4-20 mA application. Modular accessories enable the user to select the lowest cost configuration while retaining full interchangeability between instruments. Optional high alarms provide two isolated open drain outputs which may be independently programmed with a high trip point. When an alarm is tripped, the alarm and current reading alternate on the indicator. 4-1/2 Di g i t L oo p - P ow e r e d M e t er \\\DIMENSIONS (INCHES/MILLIMETERS) • 4-1/2 Digit Full Size LCD • NEMA 4X Front Panel • 1/8 DIN Anodized Aluminum Case • Short Depth Case ( 2-1/4") • Front Panel Menu Access • 2 Isolated Open Drain Alarm Outputs • Square Root Extractions PROCESS APPLICATIONS • Level • Pressure • Flow \\\SPECIFICATIONS INPUTS 4-20 mA OUTPUT (OPEN DRAIN) 25 VDC @ 150 mA; Isolated to 500 VDC DISPLAY RANGE Decimal Point Programmable 0 - 19.999 ACCURACY ± 0.02% ±1 count SQUARE ROOT ± .2% DISPLAY 4-1/2 Digit, .5" LCD LOW FLOWS ADJUSTABLE 22% of Full Scale ALARM STATUS Alternating Display — Between the process reading and the high alarms (AL1 or AL2) MAXIMUM VOLTAGE DROP <3.5V @ 20 mA FRONT PANEL NEMA 4X TEMPERATURES RATING Operating 32° to 122°F (0° to 50°C) SIZE 2.3"H x 4.13"W x 1.25"D Panel Cutout: 3.55"W x 1.72"H WEIGHT Approx. 2 oz. OPTIONAL ACCESSORIES NEMA 4X Wall Mounted Enclosure 9801 9802 \\\ORDERING INFORMATION MODEL NUMBER DESCRIPTION D2080 4-1/2 Digit Loop Powered Meter with Totalizer D2080C 2080 with Open Drain (Alarms) OPTIONAL ACCESSORIES 9801 Nema 4X Wall Mounted Enclosure 9802 Nema 4X Wall mounted Enclosure -double cutout Panel Cut Out 6.50 16.5 cm 6.50 16.5 cm 4.00 10 cm
