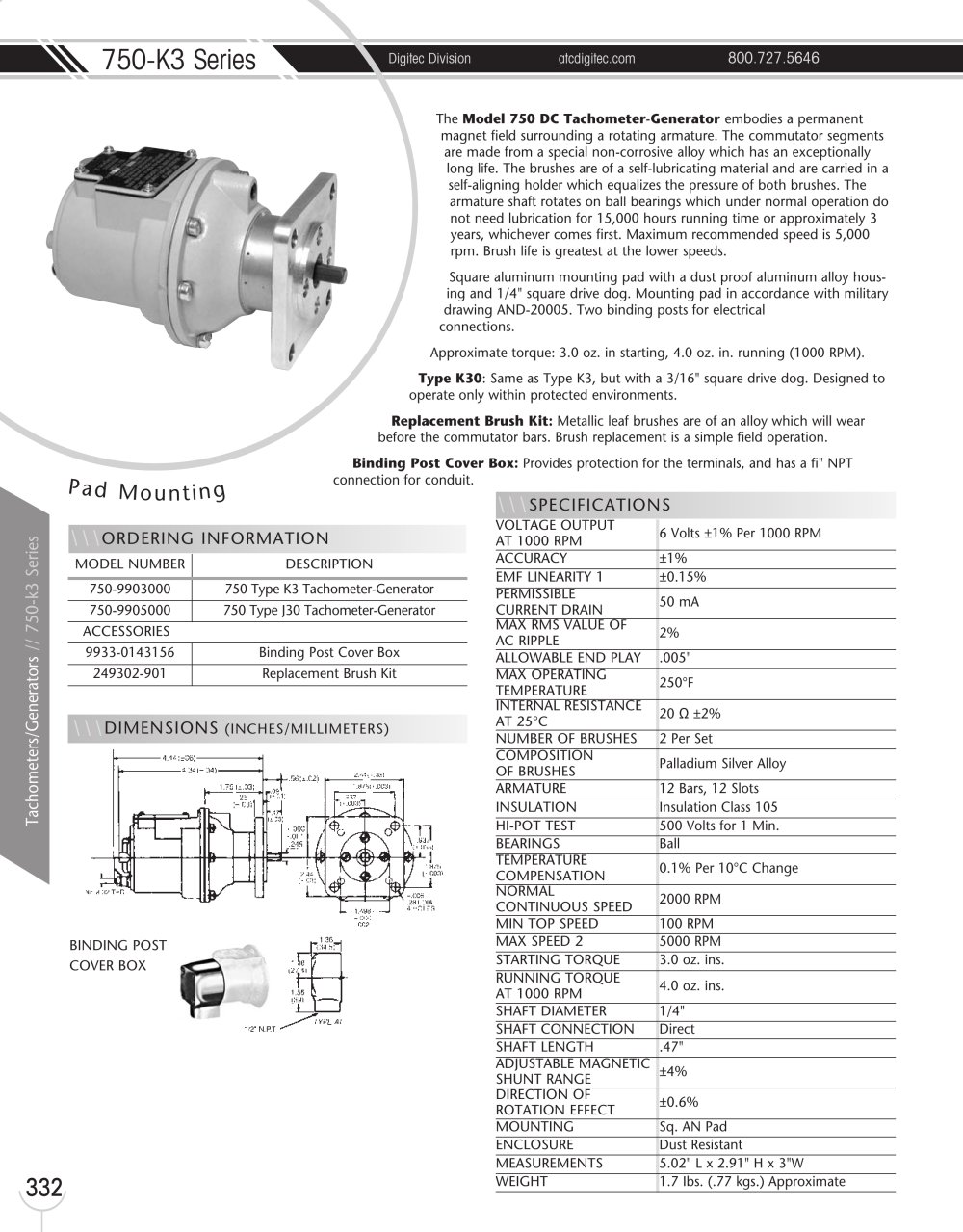

750-K3 Series Digitec Division atcdigitec.com 800.727.5646 332 Tachometers/Generators // 750-k3 Series The Model 750 DC Tachometer-Generator embodies a permanent magnet field surrounding a rotating armature. The commutator segments are made from a special non-corrosive alloy which has an exceptionally long life. The brushes are of a self-lubricating material and are carried in a self-aligning holder which equalizes the pressure of both brushes. The armature shaft rotates on ball bearings which under normal operation do not need lubrication for 15,000 hours running time or approximately 3 years, whichever comes first. Maximum recommended speed is 5,000 rpm. Brush life is greatest at the lower speeds. Square aluminum mounting pad with a dust proof aluminum alloy housing and 1/4" square drive dog. Mounting pad in accordance with military drawing AND-20005. Two binding posts for electrical connections. Approximate torque: 3.0 oz. in starting, 4.0 oz. in. running (1000 RPM). Type K30: Same as Type K3, but with a 3/16" square drive dog. Designed to operate only within protected environments. Replacement Brush Kit: Metallic leaf brushes are of an alloy which will wear before the commutator bars. Brush replacement is a simple field operation. Binding Post Cover Box: Provides protection for the terminals, and has a fi" NPT connection for conduit. P a d M o u n t i n g BINDING POST COVER BOX \\\SPECIFICATIONS VOLTAGE OUTPUT AT 1000 RPM 6 Volts ±1% Per 1000 RPM ACCURACY ±1% EMF LINEARITY 1 ±0.15% PERMISSIBLE CURRENT DRAIN 50 mA MAX RMS VALUE OF AC RIPPLE 2% ALLOWABLE END PLAY .005" MAX OPERATING TEMPERATURE 250°F INTERNAL RESISTANCE AT 25°C 20 ½ ±2% NUMBER OF BRUSHES 2 Per Set COMPOSITION OF BRUSHES Palladium Silver Alloy ARMATURE 12 Bars, 12 Slots INSULATION Insulation Class 105 HI-POT TEST 500 Volts for 1 Min. BEARINGS Ball TEMPERATURE COMPENSATION 0.1% Per 10°C Change NORMAL CONTINUOUS SPEED 2000 RPM MIN TOP SPEED 100 RPM MAX SPEED 2 5000 RPM STARTING TORQUE 3.0 oz. ins. RUNNING TORQUE AT 1000 RPM 4.0 oz. ins. SHAFT DIAMETER 1/4" SHAFT CONNECTION Direct SHAFT LENGTH .47" ADJUSTABLE MAGNETIC SHUNT RANGE ±4% DIRECTION OF ROTATION EFFECT ±0.6% MOUNTING Sq. AN Pad ENCLOSURE Dust Resistant MEASUREMENTS 5.02" L x 2.91" H x 3"W WEIGHT 1.7 Ibs. (.77 kgs.) Approximate \\\DIMENSIONS (INCHES/MILLIMETERS) \\\ORDERING INFORMATION MODEL NUMBER DESCRIPTION 750-9903000 750 Type K3 Tachometer-Generator 750-9905000 750 Type J30 Tachometer-Generator ACCESSORIES 9933-0143156 Binding Post Cover Box 249302-901 Replacement Brush Kit
