Marsh Bellofram DigiTec Division 5830/5831 Series Thermistor Thermometer

Marsh Bellofram DigiTec Division 5830/5831 Series Thermistor Thermometer
2Pages

Catalog excerpts

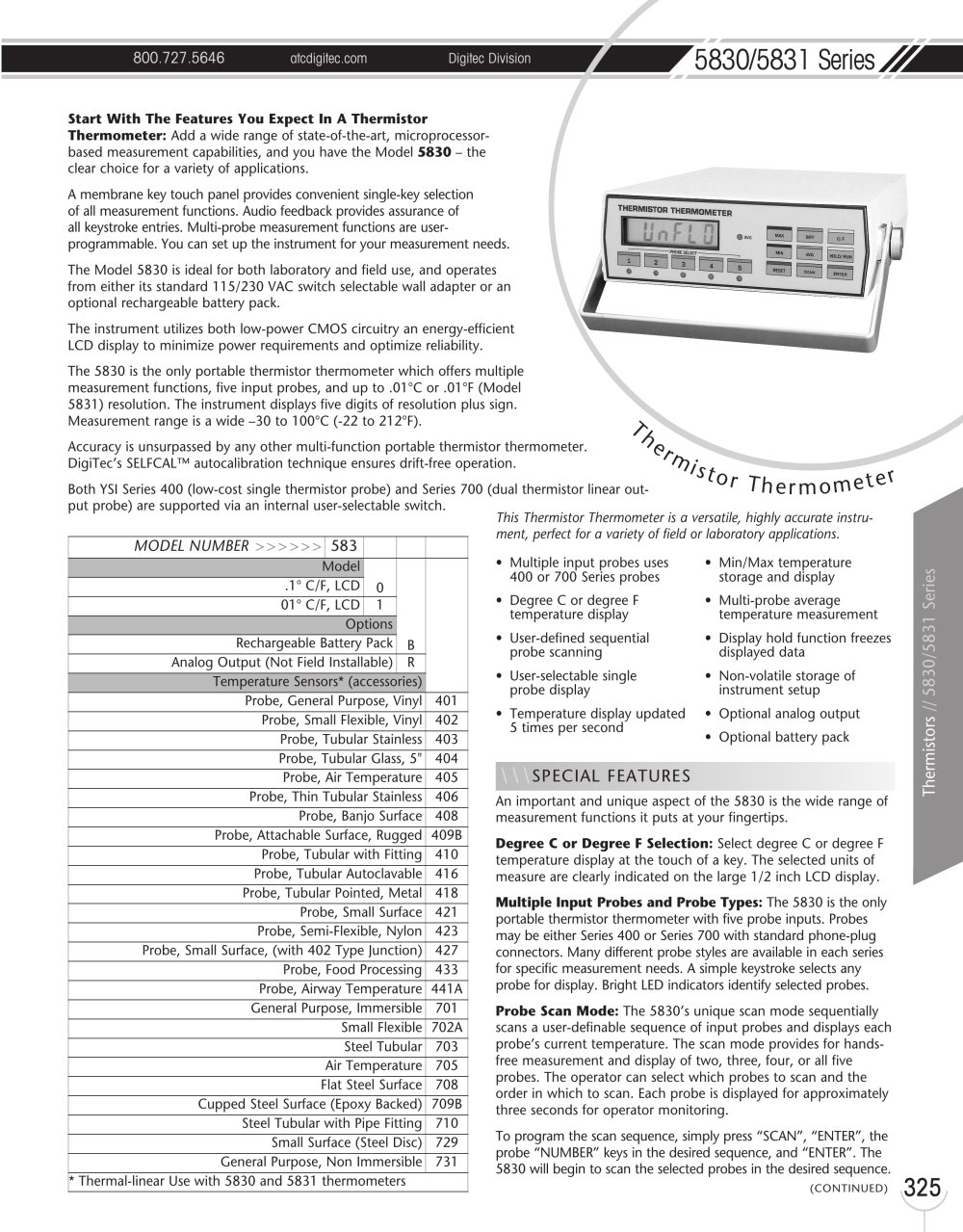

Marsh Bellofram DigiTec Division 5830/5831 Series Thermistor Thermometer - 1

800.727.5646 atcdigitec.com Digitec Division 5830/5831 Series Thermistors // 5830/5831 Series 325 T he rmi s t o r T he r m o m e t er MODEL NUMBER >>>>>> 583 Model 0 B .1° C/F, LCD 01° C/F, LCD 1 Options Rechargeable Battery Pack Analog Output (Not Field Installable) R Temperature Sensors* (accessories) Probe, General Purpose, Vinyl 401 Probe, Small Flexible, Vinyl 402 Probe, Tubular Stainless 403 Probe, Tubular Glass, 5" 404 Probe, Air Temperature 405 Probe, Thin Tubular Stainless 406 Probe, Banjo Surface 408 Probe, Attachable Surface, Rugged 409B Probe, Tubular with Fitting 410 Probe, Tubular Autoclavable 416 Probe, Tubular Pointed, Metal 418 Probe, Small Surface 421 Probe, Semi-Flexible, Nylon 423 Probe, Small Surface, (with 402 Type Junction) 427 Probe, Food Processing 433 Probe, Airway Temperature 441A General Purpose, Immersible 701 Small Flexible 702A Steel Tubular 703 Air Temperature 705 Flat Steel Surface 708 Cupped Steel Surface (Epoxy Backed) 709B Steel Tubular with Pipe Fitting 710 Small Surface (Steel Disc) 729 General Purpose, Non Immersible 731 * Thermal-linear Use with 5830 and 5831 thermometers This Thermistor Thermometer is a versatile, highly accurate instrument, perfect for a variety of field or laboratory applications. \\\SPECIAL FEATURES An important and unique aspect of the 5830 is the wide range of measurement functions it puts at your fingertips. Degree C or Degree F Selection: Select degree C or degree F temperature display at the touch of a key. The selected units of measure are clearly indicated on the large 1/2 inch LCD display. Multiple Input Probes and Probe Types: The 5830 is the only portable thermistor thermometer with five probe inputs. Probes may be either Series 400 or Series 700 with standard phone-plug connectors. Many different probe styles are available in each series for specific measurement needs. A simple keystroke selects any probe for display. Bright LED indicators identify selected probes. Probe Scan Mode: The 5830’s unique scan mode sequentially scans a user-definable sequence of input probes and displays each probe’s current temperature. The scan mode provides for handsfree measurement and display of two, three, four, or all five probes. The operator can select which probes to scan and the order in which to scan. Each probe is displayed for approximately three seconds for operator monitoring. To program the scan sequence, simply press “SCAN”, “ENTER”, the probe “NUMBER” keys in the desired sequence, and “ENTER”. The 5830 will begin to scan the selected probes in the desired sequence. • Multiple input probes uses 400 or 700 Series probes • Degree C or degree F temperature display • User-defined sequential probe scanning • User-selectable single probe display • Temperature display updated 5 times per second • Min/Max temperature storage and display • Multi-probe average temperature measurement • Display hold function freezes displayed data • Non-volatile storage of instrument setup • Optional analog output • Optional battery pack (CONTINUED) Start With The Features You Expect In A Thermistor Thermometer: Add a wide range of state-of-the-art, microprocessorbased measurement capabilities, and you have the Model 5830 – the clear choice for a variety of applications. A membrane key touch panel provides convenient single-key selection of all measurement functions. Audio feedback provides assurance of all keystroke entries. Multi-probe measurement functions are userprogrammable. You can set up the instrument for your measurement needs. The Model 5830 is ideal for both laboratory and field use, and operates from either its standard 115/230 VAC switch selectable wall adapter or an optional rechargeable battery pack. The instrument utilizes both low-power CMOS circuitry an energy-efficient LCD display to minimize power requirements and optimize reliability. The 5830 is the only portable thermistor thermometer which offers multiple measurement functions, five input probes, and up to .01°C or .01°F (Model 5831) resolution. The instrument displays five digits of resolution plus sign. Measurement range is a wide –30 to 100°C (-22 to 212°F). Accuracy is unsurpassed by any other multi-function portable thermistor thermometer. DigiTec’s SELFCAL™ autocalibration technique ensures drift-free operation. Both YSI Series 400 (low-cost single thermistor probe) and Series 700 (dual thermistor linear output probe) are supported via an internal user-selectable switch.

Open the catalog to page 1

Marsh Bellofram DigiTec Division 5830/5831 Series Thermistor Thermometer - 2

5830/5831 Series Digitec Division atcdigitec.com 800.727.5646 326 Thermistors // 5830/5831 Series Single Probe Measurement Mode: To measure and display the temperature of a single probe, just press the probe “NUMBER” key. The probe number LED will illuminate to indicate the selected probe. The displayed probe temperature is updated five times per second. This allows for monitoring of rapid temperature changes, trends, and even minute temperature variations with the 5830’s high resolution measurements. MIN/MAX Temperature and Storage Display: The 5830 continually updates the minimum and...

Open the catalog to page 2
