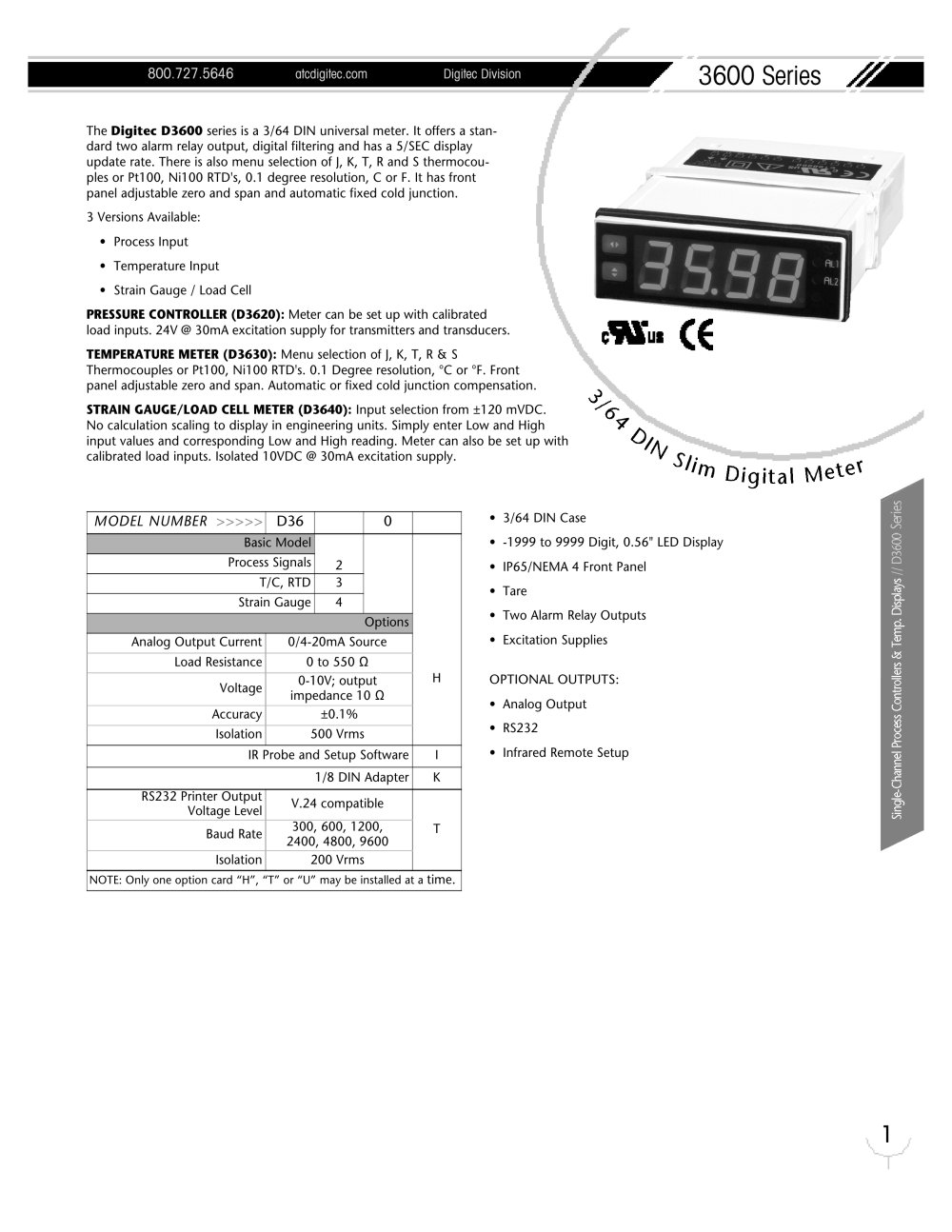

800.727.5646 atcdigitec.com Digitec Division 3600 Series 1 The Digitec D3600 series is a 3/64 DIN universal meter. It offers a standard two alarm relay output, digital filtering and has a 5/SEC display update rate. There is also menu selection of J, K, T, R and S thermocouples or Pt100, Ni100 RTD's, 0.1 degree resolution, C or F. It has front panel adjustable zero and span and automatic fixed cold junction. 3 Versions Available: • Process Input • Temperature Input • Strain Gauge / Load Cell PRESSURE CONTROLLER (D3620): Meter can be set up with calibrated load inputs. 24V @ 30mA excitation supply for transmitters and transducers. TEMPERATURE METER (D3630): Menu selection of J, K, T, R & S Thermocouples or Pt100, Ni100 RTD's. 0.1 Degree resolution, °C or °F. Front panel adjustable zero and span. Automatic or fixed cold junction compensation. STRAIN GAUGE/LOAD CELL METER (D3640): Input selection from ±120 mVDC. No calculation scaling to display in engineering units. Simply enter Low and High input values and corresponding Low and High reading. Meter can also be set up with calibrated load inputs. Isolated 10VDC @ 30mA excitation supply. • 3/64 DIN Case • -1999 to 9999 Digit, 0.56" LED Display • IP65/NEMA 4 Front Panel • Tare • Two Alarm Relay Outputs • Excitation Supplies OPTIONAL OUTPUTS: • Analog Output • RS232 • Infrared Remote Setup MODEL NUMBER >>>>> D36 0 Basic Model 2 H Process Signals T/C, RTD 3 Strain Gauge 4 Options Analog Output Current 0/4-20mA Source Load Resistance 0 to 550 Ù Voltage 0-10V; output impedance 10 Ù Accuracy ±0.1% Isolation 500 Vrms IR Probe and Setup Software I 1/8 DIN Adapter K RS232 Printer Output Voltage Level V.24 compatible Baud Rate 300, 600, 1200, T 2400, 4800, 9600 Isolation 200 Vrms NOTE: Only one option card “H”, “T” or “U” may be installed at a time.

Open the catalog to page 1

Marsh Bellofram DigiTec D3600 Series 3/64 DIN Slim Universal Meter - 2

Digitec Division atcdigitec.com 800.727.5646 2 \ \ \SPECIFICATIONS-D3630 T/C INPUT Input Range & Accuracy See Measuring Ranges table Linearization ANSI RTD INPUT Input Range & Accuracy See Measuring Ranges table Sensor Connection 2 or 3-wire linearization Pt100: DIN 43760/IEC751 (100 Ù @ 0°C - 138.5 Ù @ 100°C) Ni100: DIN 43760 (100 Ù @ 0°C - 161.8 Ù @ 100°C) SENSOR EXCITATION CURRENT 500ìA MAXIMUM LINE RESISTANCE 10 Ù with 3 wire connection DISPLAY UPDATE 5/SEC ENVIRONMENTAL PROTECTION IP65/NEMA4X CASE MATERIAL Polycarbonate UL94V.2 CUT OUT DIMENSIONS 22H x 68W mm WEIGHT 0.4 pound - 200 g \...
