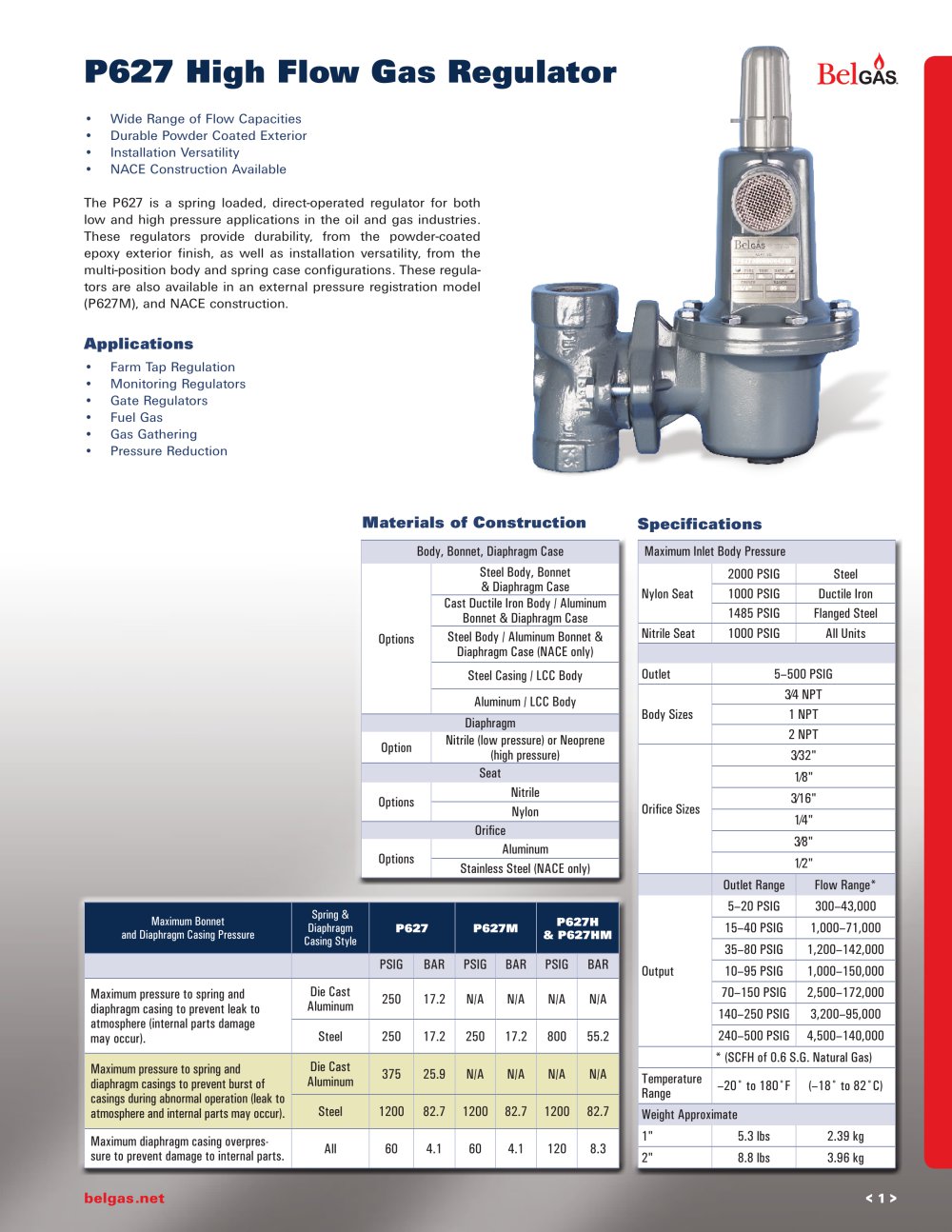

P627 High Flow Gas Regulator • • • • Wide Range of Flow Capacities Durable Powder Coated Exterior Installation Versatility NACE Construction Available The P627 is a spring loaded, direct-operated regulator for both low and high pressure applications in the oil and gas industries. These regulators provide durability, from the powder-coated epoxy exterior finish, as well as installation versatility, from the multi-position body and spring case configurations. These regulators are also available in an external pressure registration model (P627M), and NACE construction. Farm Tap Regulation Monitoring Regulators Gate Regulators Fuel Gas Gas Gathering Pressure Reduction Body, Bonnet, Diaphragm Case Steel Body, Bonnet & Diaphragm Case Cast Ductile Iron Body / Aluminum Bonnet & Diaphragm Case Steel Body / Aluminum Bonnet & Options Diaphragm Case (NACE only) Aluminum / LCC Body Diaphragm Nitrile (low pressure) or Neoprene (high pressure) Seat Nitrile Nylon Orifice Aluminum Stainless Steel (NACE only) Maximum Bonnet and Diaphragm Casing Pressure Spring & Diaphragm Casing Style Maximum pressure to spring and diaphragm casings to prevent burst of casings during abnormal operation (leak to atmosphere and internal parts may occur). Maximum diaphragm casing overpressure to prevent damage to internal parts. Nitrile Seat 2000 PSIG 1000 PSIG 1485 PSIG 1000 PSIG Orifice Sizes Flow Range* Steel Ductile Iron Flanged Steel All Units Body Sizes PSIG Maximum pressure to spring and diaphragm casing to prevent leak to atmosphere (internal parts damage may occur). Nylon Seat Steel Casing / LCC Body Maximum Inlet Body Pressure Temperature Range Weight Approximate

P627 Regulator Rebuild Kits Kit Includes Part Number Nitrile diaphragms (2), SS Nitrile valve disk, O’rings, back-up rings, and retaining pin Nitrile diaphragms (2), SS Nylon valve disk, O’rings, back-up rings, and retaining pin Neoprene diaphragm, SS Nitrile valve disk, O’rings, back-up rings, and retaining pin Neoprene diaphragm, SS Nylon valve disk, O’rings, back-up rings, and retaining pin Part Number Nitrile diaphragms (2), Nitrile valve disk, O’rings, back-up rings, and retaining pin Nitrile diaphragms (2), Nylon valve disk, O’rings, back-up rings, and retaining pin. Neoprene diaphragm,...

P627 Flow Capacities of Natural Gas (0.6 S.G.) in SCFH1 Outlet Pressure Range Outlet Pressure Setting 3/4" Body Size Port Diameter, inches Inlet Pressure 1" Body Size Port Diameter, inches

P627 Flow Capacities of Natural Gas (0.6 S.G.) in SCFH1 Outlet Pressure Range Outlet Pressure Range 1" Body Size Port Diameter, inches Inlet Pressure 3/4" Body Size Port Diameter, inches Outlet Pressure Setting Outlet Pressure Setting 627 – 2" Body Size Port Diameter, inches Inlet Pressure 627M – 2" Body Size Port Diameter, inches

P627 Flow Capacities of Natural Gas (0.6 S.G.) in SCFH1 Outlet Pressure Range Outlet Pressure Setting 627 – 2" Body Size Port Diameter, inches Inlet Pressure 627M – 2" Body Size Port Diameter, inches

P627 Flow Capacities of Natural Gas (0.6 S.G.) in SCFH1 Outlet Pressure Range Inlet Pressure 627H or HM – 3⁄4" Body Size Port Diameter, inches Outlet Pressure Setting 627H or HM – 1" Body Size Port Diameter, inches 1. Capacity is based on 20 percent droop unless otherwise noted below. 4. Outlet pressure setting may shift ±15 PSIG. 6. Small orifices and low pressure drops may cause the set point to shift +15 psig (1.3 BAR).

P627 Flow Capacities of Natural Gas (0.6 S.G.) in SCFH1 Outlet Pressure Range Outlet Pressure Setting Inlet Pressure 627H or HM – 2" Body Size Port Diameter, inches P627 Flow Coefficients Orifice Size Inches 3/4 Inch Body Wide-Open Cv for Wide-Open Cg for External Relief Sizing External Relief Sizing 6.9 0.24 12.5 0.43 29 1.01 50 1.63 108 2.99 190 4.87 1 Inch (DIN 25) Body Wide-Open Cg for Wide-Open Cv for External Relief Sizing External Relief Sizing 6.9 0.24 12.5 0.43 29 0.93 50 1.71 108 3.42 190 5.29 2 Inch (DIN 50) Body Wide-Open Cg for Wide-Open Cv for External Relief Sizing External Relief...

Cover Adj. Screw, plastic Adjustment Screw Locknut Bonnet, P627 - Aluminum Bonnet, P627M, P627H & P627HM - Steel Vent Screw Assembly Spring Guide, Upper Range Spring 5-20 PSIG–Yellow 15-40 PSIG–Green 35-80 PSIG & 10-95–PSIG Blue 70-150 PSIG–Red 140-250 PSIG–Blue 240-500 PSIG–Red Spring Guide, Lower (P627 or P627M only) Build Screw, Spring Case (8 required) P627 - Aluminum P627 or P627M - Steel P627H or P627HM Diaphragm Piston (P627 or P627M only) Diaphragm P627 & P627M Aluminum/Iron Case (Nitrile) Steel Case (Nitrile) Diaphragm P627H & P627HM Steel Case (Neophene) Screw, Diaphragm P627 & P627M...

P627 / R627 Dimensions Aluminum/Cast Ductile Iron Units Type Body Size P627 / R627 Dimensions Flange Units A Type Body Size

R627 High Flow Gas Regulator with Internal Relief The R627 Relieving Regulator has an internal relief valve that provides protection against over pressurization. As output pressure builds up above the start-to-discharge point the relief seat disengages from the diaphragm and the excess pressure is relieved through the bonnet vent port. As a result of the relieving action of the internal relief valve, the output pressure reduces and returns to the initial setpoint. The relief seat then reseats against the diaphragm. The action of the R627 internal relief valve in many cases eliminates the need...

R627 Regulator Rebuild Kits Kit Includes Part Number Part Number Nitrile diaphragms (2), Nitrile valve disk, O’rings, back-up rings, and retaining pin Nitrile diaphragms (2), SS Nitrile valve disk, O’rings, back-up rings, and retaining pin Nitrile diaphragms (2), Nylon valve disk, O’rings, back-up rings, and retaining pin. Nitrile diaphragms (2), SS Nylon valve disk, O’rings, back-up rings, and retaining pin Special Adders None Monitor* 150 #RF* 300 #RF* 600 #RF* Socket Weld* 900 #RTJ* 150 #RF & Monitor* 300 #RF & Monitor* 600 #RF & Monitor* Socket Weld & Monitor* Versions Standard NACE* NACE...
