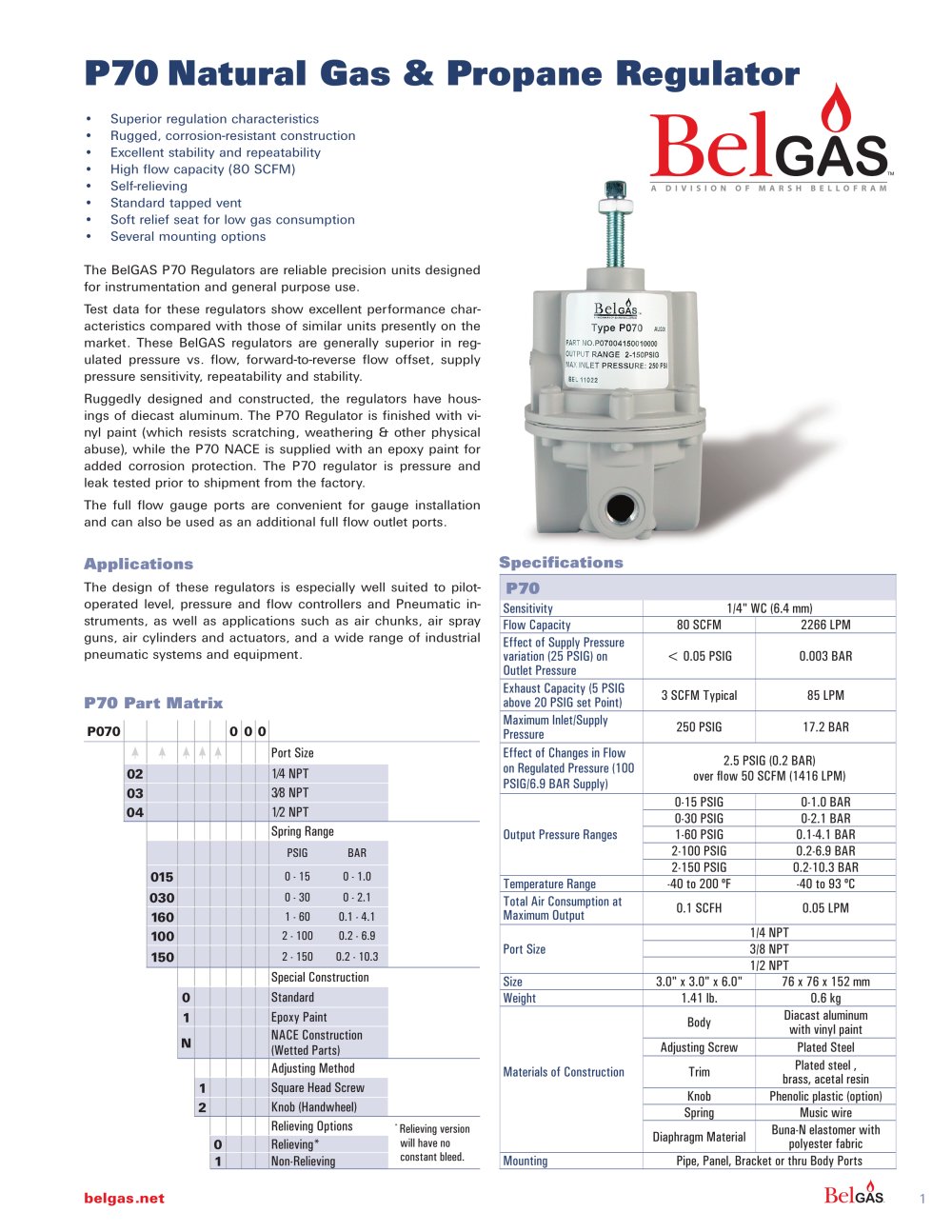

belgas.net A DIVISION OF MARSH BELLOFRAM • Superior regulation characteristics • Rugged, corrosion-resistant construction • Excellent stability and repeatability • High flow capacity (80 SCFM) • Self-relieving • Standard tapped vent • Soft relief seat for low gas consumption • Several mounting options The BelGAS P70 Regulators are reliable precision units designed for instrumentation and general purpose use. Test data for these regulators show excellent performance characteristics compared with those of similar units presently on the market. These BelGAS regulators are generally superior in regulated pressure vs. flow, forward-to-reverse flow offset, supply pressure sensitivity, repeatability and stability. Ruggedly designed and constructed, the regulators have housings of diecast aluminum. The P70 Regulator is finished with vinyl paint (which resists scratching, weathering & other physical abuse), while the P70 NACE is supplied with an epoxy paint for added corrosion protection. The P70 regulator is pressure and leak tested prior to shipment from the factory. The full flow gauge ports are convenient for gauge installation and can also be used as an additional full flow outlet ports. Applications The design of these regulators is especially well suited to pilot-operated level, pressure and flow controllers and Pneumatic instruments, as well as applications such as air chunks, air spray guns, air cylinders and actuators, and a wide range of industrial pneumatic systems and equipment. P70 Natural Gas & Propane Regulator P70 Part Matrix P070 0 0 0 Port Size 02 14 NPT 03 38 NPT 04 12 NPT Spring Range PSIG BAR 015 0 - 15 0 - 1.0 030 0 - 30 0 - 2.1 160 1 - 60 0.1 - 4.1 100 2 - 100 0.2 - 6.9 150 2 - 150 0.2 - 10.3 Special Construction 0 Standard 1 Epoxy Paint N NACE Construction (Wetted Parts) Adjusting Method 1 Square Head Screw 2 Knob (Handwheel) Relieving Options * Relieving version will have no constant bleed. 0 Relieving* 1 Non-Relieving Specifications P70 Sensitivity 1/4" WC (6.4 mm) Flow Capacity 80 SCFM 2266 LPM Effect of Supply Pressure variation (25 PSIG) on Outlet Pressure < 0.05 PSIG 0.003 BAR Exhaust Capacity (5 PSIG above 20 PSIG set Point) 3 SCFM Typical 85 LPM Maximum Inlet/Supply Pressure 250 PSIG 17.2 BAR Effect of Changes in Flow on Regulated Pressure (100 PSIG/6.9 BAR Supply) 2.5 PSIG (0.2 BAR) over flow 50 SCFM (1416 LPM) Output Pressure Ranges 0-15 PSIG 0-1.0 BAR 0-30 PSIG 0-2.1 BAR 1-60 PSIG 0.1-4.1 BAR 2-100 PSIG 0.2-6.9 BAR 2-150 PSIG 0.2-10.3 BAR Temperature Range -40 to 200 ºF -40 to 93 ºC Total Air Consumption at Maximum Output 0.1 SCFH 0.05 LPM Port Size 1/4 NPT 3/8 NPT 1/2 NPT Size 3.0" x 3.0" x 6.0" 76 x 76 x 152 mm Weight 1.41 lb. 0.6 kg Materials of Construction Body Diacast aluminum with vinyl paint Adjusting Screw Plated Steel Trim Plated steel , brass, acetal resin Knob Phenolic plastic (option) Spring Music wire Diaphragm Material Buna-N elastomer with polyester fabric Mounting Pipe, Panel, Bracket or thru Body Ports A DIVISION OF MARSH BELLOFRAM
