Catalog excerpts

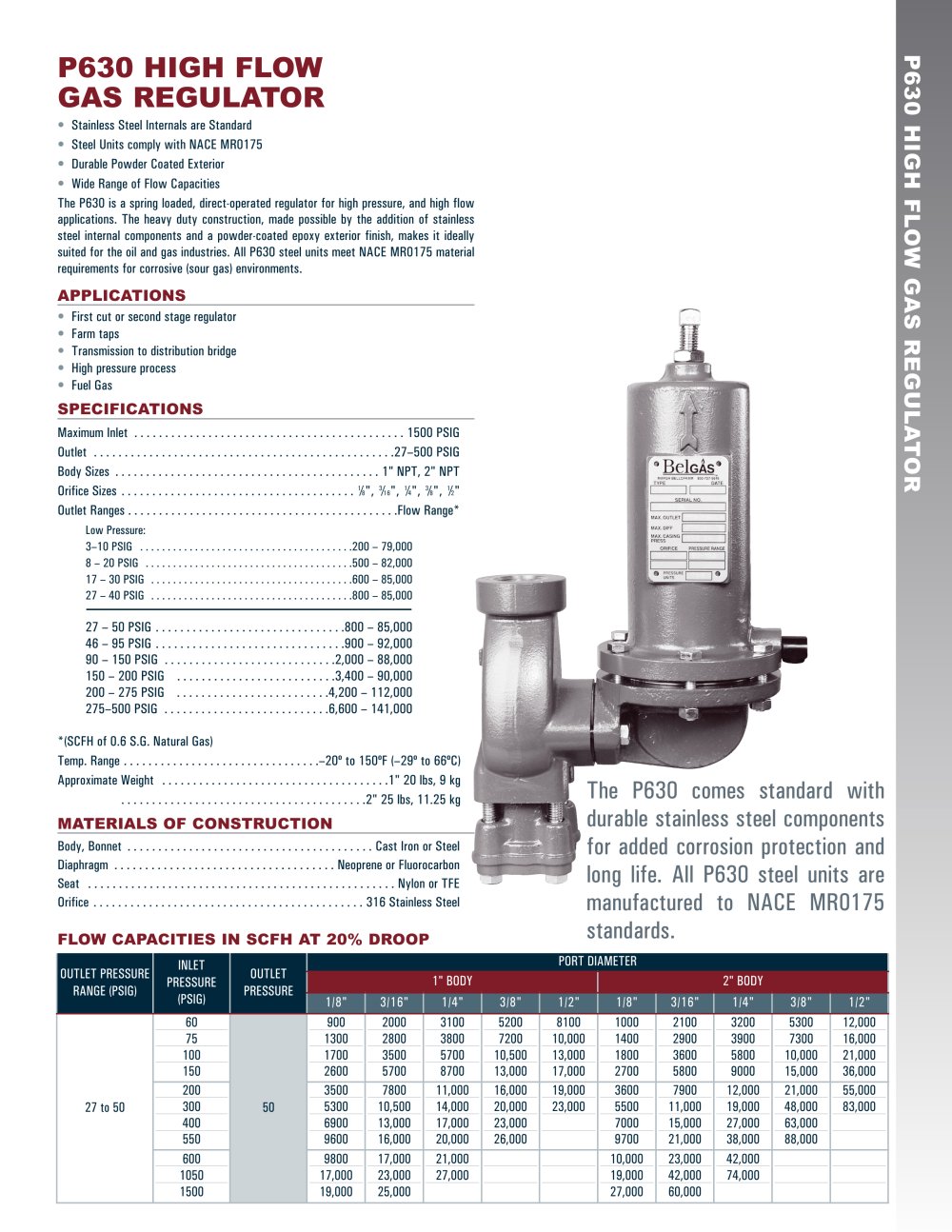

P630 HIGH FLOW GAS REGULATOR OUTLET PRESSURE RANGE (PSIG) INLET PRESSURE (PSIG) OUTLET PRESSURE PORT DIAMETER 1" BODY 2" BODY 1/8" 3/16" 1/4" 3/8" 1/2" 1/8" 3/16" 1/4" 3/8" 1/2" 27 to 50 60 75 100 150 50 900 1300 1700 2600 2000 2800 3500 5700 3100 3800 5700 8700 5200 7200 10,500 13,000 8100 10,000 13,000 17,000 1000 1400 1800 2700 2100 2900 3600 5800 3200 3900 5800 9000 5300 7300 10,000 15,000 12,000 16,000 21,000 36,000 200 300 400 550 3500 5300 6900 9600 7800 10,500 13,000 16,000 11,000 14,000 17,000 20,000 16,000 20,000 23,000 26,000 19,000 23,000 3600 5500 7000 9700 7900 11,000 15,000 21,000 12,000 19,000 27,000 38,000 21,000 48,000 63,000 88,000 55,000 83,000 600 1050 1500 9800 17,000 19,000 17,000 23,000 25,000 21,000 27,000 10,000 19,000 27,000 23,000 42,000 60,000 42,000 74,000 FLOW CAPACITIES IN SCFH AT 20% DROOP P630 HIGH FLOW GAS REGULATOR • Stainless Steel Internals are Standard • Steel Units comply with NACE MR0175 • Durable Powder Coated Exterior • Wide Range of Flow Capacities The P630 is a spring loaded, direct-operated regulator for high pressure, and high flow applications. The heavy duty construction, made possible by the addition of stainless steel internal components and a powder-coated epoxy exterior finish, makes it ideally suited for the oil and gas industries. All P630 steel units meet NACE MR0175 material requirements for corrosive (sour gas) environments. APPLICATIONS • First cut or second stage regulator • Farm taps • Transmission to distribution bridge • High pressure process • Fuel Gas SPECIFICATIONS Maximum Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1500 PSIG Outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27–500 PSIG Body Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1" NPT, 2" NPT Orifice Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18", 316", 14", 38", 12" Outlet Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Flow Range* Low Pressure: 3–10 PSIG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .200 – 79,000 8 – 20 PSIG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500 – 82,000 17 – 30 PSIG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .600 – 85,000 27 – 40 PSIG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .800 – 85,000 27 – 50 PSIG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .800 – 85,000 46 – 95 PSIG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .900 – 92,000 90 – 150 PSIG . . . . . . . . . . . . . . . . . . . . . . . . . . . .2,000 – 88,000 150 – 200 PSIG . . . . . . . . . . . . . . . . . . . . . . . . . .3,400 – 90,000 200 – 275 PSIG . . . . . . . . . . . . . . . . . . . . . . . . .4,200 – 112,000 275–500 PSIG . . . . . . . . . . . . . . . . . . . . . . . . . . .6,600 – 141,000 *(SCFH of 0.6 S.G. Natural Gas) Temp. Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .–20º to 150ºF (–29º to 66ºC) Approximate Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1" 20 lbs, 9 kg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2" 25 lbs, 11.25 kg MATERIALS OF CONSTRUCTION Body, Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cast Iron or Steel Diaphragm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Neoprene or Fluorocarbon Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Nylon or TFE Orifice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 316 Stainless Steel The P630 comes standard with durable stainless steel components for added corrosion protection and long life. All P630 steel units are manufactured to NACE MR0175 standards.
Open the catalog to page 1
12 P630 HIGH FLOW GAS REGULATOR 12 "B" "F" "C" "D" "A" "E" OUT IN BODY SIZE A B C D E F 1" mm inches 193 7.61 392 15.45 198 7.79 29 1.15 1" NPT 119 4.67 2" mm inches 207 8.13 398 15.68 215 8.45 45 1.90 2" NPT 119 4.67 P630 DIMENSIONS PART NUMBER KIT INCLUDES P630 High Pressure, Ranges 27 - 50 PSIG and above Neoprene diaphragm, Nylon valve disk, one body gasket, and 2 orifice gaskets 971-630-000 Neoprene diaphragm, CTFE valve disk, one body gasket, and 2 orifice gaskets 971-630-100 Fluorocarbon diaphragm, Nylon valve disk, one body gasket, and 2 orifice gaskets 971-630-200 Fluorocarbon...
Open the catalog to page 4
P630 HIGH FLOW GAS REGULATOR 13 P630 PARTS ITEM DESCRIPTION PART NUMBER 1 Nameplate (requires 4 drive screws for mounting) 632-472-000 2 Drive Screw (4 required) 648-464-000 3 Adjusting Screw Spring Range 3-10 PSIG 8-20 PSIG 17-30 PSIG 27-40 PSIG 27-50 PSIG 46-95 PSIG 90-150 PSIG 150-200 PSIG 200-275 PSIG 275-500 PSIG 648-462-002 648-462-001 648-462-000 648-462-000 648-462-002 648-462-001 648-462-000 648-462-000 648-462-000 648-462-000 4 Hex Nut 634-000-056 5 Upper spring guide - Pressure range to 275 PSIG Upper spring guide - Over 275 PSIG 626-077-000 626-078-000 6 Bonnet - Iron (27-50...
