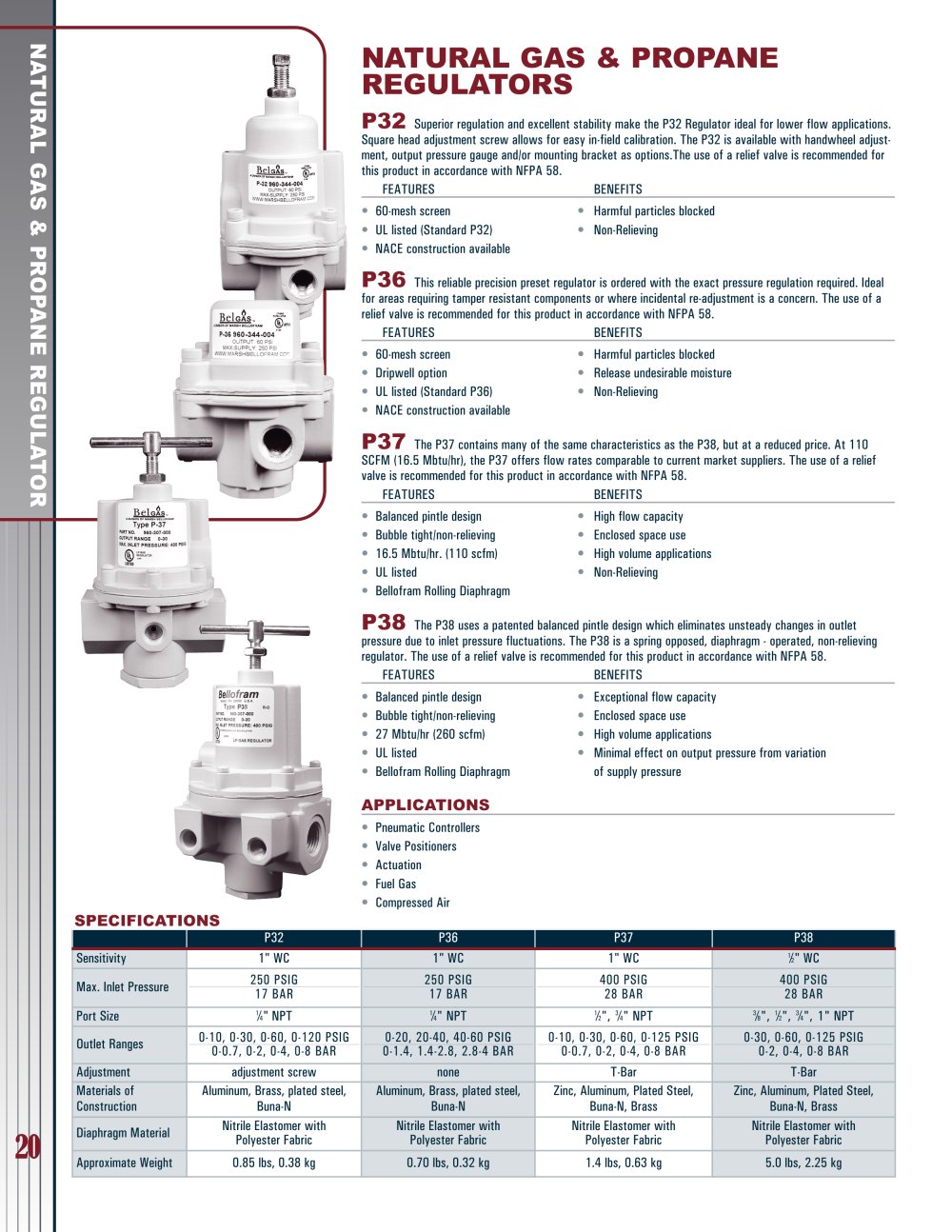

Marsh Bellofram BelGAS Division P32-P38 Natural Gas & Propane Regulators - 1

20 NATURAL GAS & PROPANE REGULATOR 20 P32 P36 P37 P38 Sensitivity 1" WC 1" WC 1" WC 12" WC Max. Inlet Pressure 250 PSIG 17 BAR 250 PSIG 17 BAR 400 PSIG 28 BAR 400 PSIG 28 BAR Port Size 14" NPT 14" NPT 12", 34" NPT 38", 12", 34", 1" NPT Outlet Ranges 0-10, 0-30, 0-60, 0-120 PSIG 0-0.7, 0-2, 0-4, 0-8 BAR 0-20, 20-40, 40-60 PSIG 0-1.4, 1.4-2.8, 2.8-4 BAR 0-10, 0-30, 0-60, 0-125 PSIG 0-0.7, 0-2, 0-4, 0-8 BAR 0-30, 0-60, 0-125 PSIG 0-2, 0-4, 0-8 BAR Adjustment adjustment screw none T-Bar T-Bar Materials of Construction Aluminum, Brass, plated steel, Buna-N Aluminum, Brass, plated steel, Buna-N Zinc, Aluminum, Plated Steel, Buna-N, Brass Zinc, Aluminum, Plated Steel, Buna-N, Brass Diaphragm Material Nitrile Elastomer with Polyester Fabric Nitrile Elastomer with Polyester Fabric Nitrile Elastomer with Polyester Fabric Nitrile Elastomer with Polyester Fabric Approximate Weight 0.85 lbs, 0.38 kg 0.70 lbs, 0.32 kg 1.4 lbs, 0.63 kg 5.0 lbs, 2.25 kg NATURAL GAS & PROPANE REGULATORS P32 Superior regulation and excellent stability make the P32 Regulator ideal for lower flow applications. Square head adjustment screw allows for easy in-field calibration. The P32 is available with handwheel adjustment, output pressure gauge and/or mounting bracket as options.The use of a relief valve is recommended for this product in accordance with NFPA 58. FEATURES BENEFITS • 60-mesh screen • Harmful particles blocked • UL listed (Standard P32) • Non-Relieving • NACE construction available P36 This reliable precision preset regulator is ordered with the exact pressure regulation required. Ideal for areas requiring tamper resistant components or where incidental re-adjustment is a concern. The use of a relief valve is recommended for this product in accordance with NFPA 58. FEATURES BENEFITS • 60-mesh screen • Harmful particles blocked • Dripwell option • Release undesirable moisture • UL listed (Standard P36) • Non-Relieving • NACE construction available P37 The P37 contains many of the same characteristics as the P38, but at a reduced price. At 110 SCFM (16.5 Mbtu/hr), the P37 offers flow rates comparable to current market suppliers. The use of a relief valve is recommended for this product in accordance with NFPA 58. FEATURES BENEFITS • Balanced pintle design • High flow capacity • Bubble tight/non-relieving • Enclosed space use • 16.5 Mbtu/hr. (110 scfm) • High volume applications • UL listed • Non-Relieving • Bellofram Rolling Diaphragm P38 The P38 uses a patented balanced pintle design which eliminates unsteady changes in outlet pressure due to inlet pressure fluctuations. The P38 is a spring opposed, diaphragm - operated, non-relieving regulator. The use of a relief valve is recommended for this product in accordance with NFPA 58. FEATURES BENEFITS • Balanced pintle design • Exceptional flow capacity • Bubble tight/non-relieving • Enclosed space use • 27 Mbtu/hr (260 scfm) • High volume applications • UL listed • Minimal effect on output pressure from variation • Bellofram Rolling Diaphragm of supply pressure APPLICATIONS • Pneumatic Controllers • Valve Positioners • Actuation • Fuel Gas • Compressed Air SPECIFICATIONS
