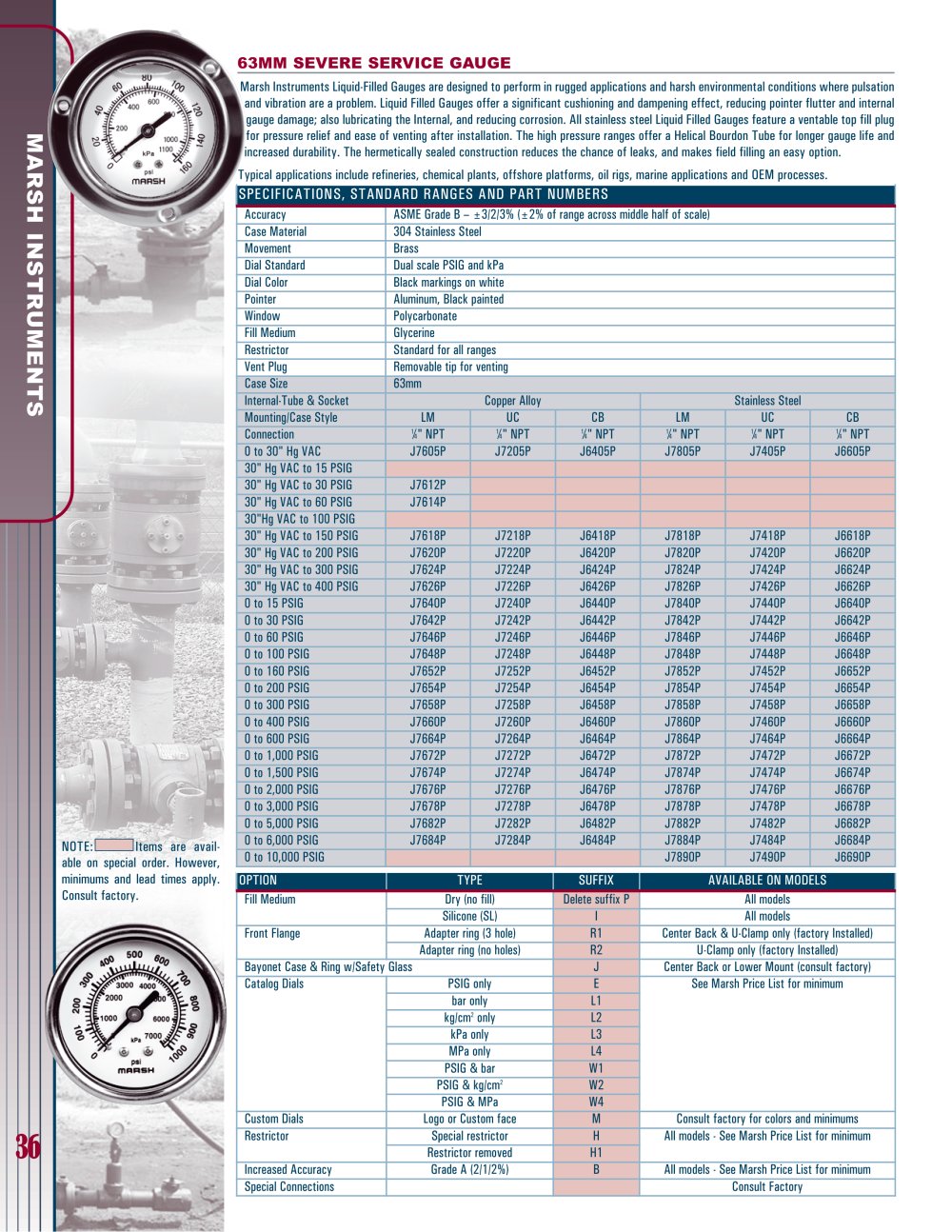

MARSH INSTRUMENTS OPTION TYPE SUFFIX AVAILABLE ON MODELS Fill Medium Dry (no fill) Delete suffix P All models Silicone (SL) I All models Front Flange Adapter ring (3 hole) R1 Center Back & U-Clamp only (factory Installed) Adapter ring (no holes) R2 U-Clamp only (factory Installed) Bayonet Case & Ring w/Safety Glass J Center Back or Lower Mount (consult factory) Catalog Dials PSIG only E See Marsh Price List for minimum bar only L1 kg/cm2 only L2 kPa only L3 MPa only L4 PSIG & bar W1 PSIG & kg/cm2 W2 PSIG & MPa W4 Custom Dials Logo or Custom face M Consult factory for colors and minimums Restrictor Special restrictor H All models - See Marsh Price List for minimum Restrictor removed H1 Increased Accuracy Grade A (2/1/2%) B All models - See Marsh Price List for minimum Special Connections Consult Factory SPECIFICATIONS, STANDARD RANGES AND PART NUMBERS Accuracy ASME Grade B – ±3/2/3% (±2% of range across middle half of scale) Case Material 304 Stainless Steel Movement Brass Dial Standard Dual scale PSIG and kPa Dial Color Black markings on white Pointer Aluminum, Black painted Window Polycarbonate Fill Medium Glycerine Restrictor Standard for all ranges Vent Plug Removable tip for venting Case Size 63mm Internal-Tube & Socket Copper Alloy Stainless Steel Mounting/Case Style LM UC CB LM UC CB Connection 14" NPT 14" NPT 14" NPT 14" NPT 14" NPT 14" NPT 0 to 30" Hg VAC J7605P J7205P J6405P J7805P J7405P J6605P 30" Hg VAC to 15 PSIG 30" Hg VAC to 30 PSIG J7612P 30" Hg VAC to 60 PSIG J7614P 30"Hg VAC to 100 PSIG 30" Hg VAC to 150 PSIG J7618P J7218P J6418P J7818P J7418P J6618P 30" Hg VAC to 200 PSIG J7620P J7220P J6420P J7820P J7420P J6620P 30" Hg VAC to 300 PSIG J7624P J7224P J6424P J7824P J7424P J6624P 30" Hg VAC to 400 PSIG J7626P J7226P J6426P J7826P J7426P J6626P 0 to 15 PSIG J7640P J7240P J6440P J7840P J7440P J6640P 0 to 30 PSIG J7642P J7242P J6442P J7842P J7442P J6642P 0 to 60 PSIG J7646P J7246P J6446P J7846P J7446P J6646P 0 to 100 PSIG J7648P J7248P J6448P J7848P J7448P J6648P 0 to 160 PSIG J7652P J7252P J6452P J7852P J7452P J6652P 0 to 200 PSIG J7654P J7254P J6454P J7854P J7454P J6654P 0 to 300 PSIG J7658P J7258P J6458P J7858P J7458P J6658P 0 to 400 PSIG J7660P J7260P J6460P J7860P J7460P J6660P 0 to 600 PSIG J7664P J7264P J6464P J7864P J7464P J6664P 0 to 1,000 PSIG J7672P J7272P J6472P J7872P J7472P J6672P 0 to 1,500 PSIG J7674P J7274P J6474P J7874P J7474P J6674P 0 to 2,000 PSIG J7676P J7276P J6476P J7876P J7476P J6676P 0 to 3,000 PSIG J7678P J7278P J6478P J7878P J7478P J6678P 0 to 5,000 PSIG J7682P J7282P J6482P J7882P J7482P J6682P 0 to 6,000 PSIG J7684P J7284P J6484P J7884P J7484P J6684P 0 to 10,000 PSIG J7890P J7490P J6690P 36 63MM SEVERE SERVICE GAUGE Marsh Instruments Liquid-Filled Gauges are designed to perform in rugged applications and harsh environmental conditions where pulsation and vibration are a problem. Liquid Filled Gauges offer a significant cushioning and dampening effect, reducing pointer flutter and internal gauge damage; also lubricating the Internal, and reducing corrosion. All stainless steel Liquid Filled Gauges feature a ventable top fill plug for pressure relief and ease of venting after installation. The high pressure ranges offer a Helical Bourdon Tube for longer gauge life and increased durability. The hermetically sealed construction reduces the chance of leaks, and makes field filling an easy option. Typical applications include refineries, chemical plants, offshore platforms, oil rigs, marine applications and OEM processes. NOTE: Items are available on special order. However, minimums and lead times apply. Consult factory.

Open the catalog to page 1

Marsh Bellofram BelGAS Division Gauges Brochure - 2

MARSH INSTRUMENTS 37 SPECIFICATIONS, STANDARD RANGES AND PART NUMBERS Accuracy ASME Grade A – ±2/1/2% (±1% of range across middle half of scale) Case Material 304 Stainless Steel Movement Brass sector and pinion Dial Standard Dual scale PSIG & kPa Dial Color Black markings on white Pointer Aluminum. black painted Window Polycarbonate Fill Medium Glycerine Restrictor Standard for all ranges Vent Plug Removable tip for venting Case Size 100mm Internal Tube & Socket Copper Alloy Stainless Steel Mounting/Case Style LM CB UC LM CB UC Connection 14" NPT 14" NPT 14" NPT 14" NPT 14" NPT 14" NPT 0...

Open the catalog to page 2

Marsh Bellofram BelGAS Division Gauges Brochure - 3

OPTION TYPE SUFFIX AVAILABLE ON MODELS Fill Medium Dry (no fill) Standard All ranges Glycerine (GL) Add suffix P All ranges Silicone (SL) Add suffix PI All ranges MARSH INSTRUMENTS 38 100MM ELITE STAINLESS STEEL • All Stainless Steel • Field Fillable • Ranges to 10,000 PSIG • Liquid Filled or Dry • Solid Front Design — Safecase Marsh Instruments All Stainless Steel Gauges are built for extended life, and designed for harsh and corrosive environments. These stainless steel gauges feature top fill plugs and are field fillable. Marsh Liquid Filled Gauges offer significant cushioning and...

Open the catalog to page 3

Marsh Bellofram BelGAS Division Gauges Brochure - 4

MARSH INSTRUMENTS 39 ‘HW’ 100MM STAINLESS STEEL • Liquid Filled or Dry - Field Fillable • Socket Welded to the Case • Ranges to 10,000 PSIG • Heavy Duty All Stainless Steel Marsh Instruments Stainless Steel Gauges are built for extended life, and designed for harsh and corrosive environments. These stainless steel gauges feature top fill plugs and are field fillable. Pressure ranges are available to 10,000 PSIG. Marsh Liquid Filled Gauges offer significant cushioning and dampening which reduces pointer flutter and internal gauge damage. Typical applications include refineries, chemical...

Open the catalog to page 4

Marsh Bellofram BelGAS Division Gauges Brochure - 5

40 MARSH INSTRUMENTS 40 OPTION TYPE SUFFIX AVAILABLE ON MODELS Fill Medium Dry (no fill) Standard All ranges Glycerine (GL) Add suffix P Silicone (SL) Add suffix PI Catalog Dials psi only E Bar only L1 kg/cm2 only L2 kPa only L3 MPa L4 psi & BAR W1 psi & kg/cm2 W2 psi & MPa W4 QUALITY SERIES 100MM • Liquid Filled or Dry • Adjustable Micrometer Pointer • Ranges to 10,000 psi • Safety Glass Window Marsh Stainless Steel gauges are built for extended life and design for harsh and corrosive environments. They feature a top fill plug polished bayonet ring and are field fillable. Liquid filled...
