Marsh Bellofram Automatic Timing & Controls TL Series Tower Lights

Marsh Bellofram Automatic Timing & Controls TL Series Tower Lights
2Pages

Catalog excerpts

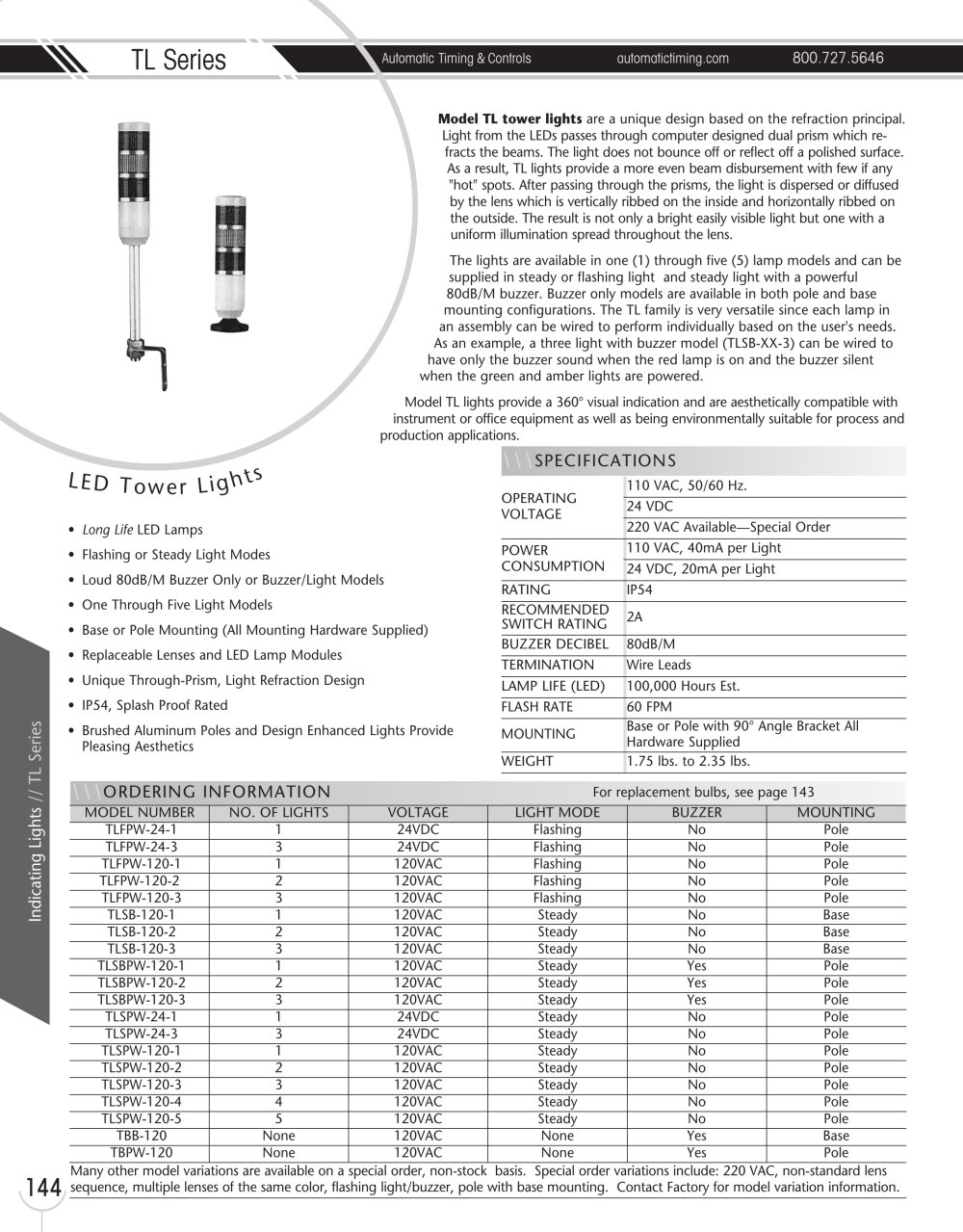

Marsh Bellofram Automatic Timing & Controls TL Series Tower Lights - 1

\\\ORDERING INFORMATION MODEL NUMBER NO. OF LIGHTS VOLTAGE LIGHT MODE BUZZER MOUNTING TLFPW-24-1 1 24VDC Flashing No Pole TLFPW-24-3 3 24VDC Flashing No Pole TLFPW-120-1 1 120VAC Flashing No Pole TLFPW-120-2 2 120VAC Flashing No Pole TLFPW-120-3 3 120VAC Flashing No Pole TLSB-120-1 1 120VAC Steady No Base TLSB-120-2 2 120VAC Steady No Base TLSB-120-3 3 120VAC Steady No Base TLSBPW-120-1 1 120VAC Steady Yes Pole TLSBPW-120-2 2 120VAC Steady Yes Pole TLSBPW-120-3 3 120VAC Steady Yes Pole TLSPW-24-1 1 24VDC Steady No Pole TLSPW-24-3 3 24VDC Steady No Pole TLSPW-120-1 1 120VAC Steady No Pole TLSPW-120-2 2 120VAC Steady No Pole TLSPW-120-3 3 120VAC Steady No Pole TLSPW-120-4 4 120VAC Steady No Pole TLSPW-120-5 5 120VAC Steady No Pole TBB-120 None 120VAC None Yes Base TBPW-120 None 120VAC None Yes Pole Many other model variations are available on a special order, non-stock basis. Special order variations include: 220 VAC, non-standard lens sequence, multiple lenses of the same color, flashing light/buzzer, pole with base mounting. Contact Factory for model variation information. TL Series Automatic Timing & Controls automatictiming.com 800.727.5646 144 Indicating Lights // TL Series Model TL tower lights are a unique design based on the refraction principal. Light from the LEDs passes through computer designed dual prism which refracts the beams. The light does not bounce off or reflect off a polished surface. As a result, TL lights provide a more even beam disbursement with few if any "hot" spots. After passing through the prisms, the light is dispersed or diffused by the lens which is vertically ribbed on the inside and horizontally ribbed on the outside. The result is not only a bright easily visible light but one with a uniform illumination spread throughout the lens. The lights are available in one (1) through five (5) lamp models and can be supplied in steady or flashing light and steady light with a powerful 80dB/M buzzer. Buzzer only models are available in both pole and base mounting configurations. The TL family is very versatile since each lamp in an assembly can be wired to perform individually based on the user's needs. As an example, a three light with buzzer model (TLSB-XX-3) can be wired to have only the buzzer sound when the red lamp is on and the buzzer silent when the green and amber lights are powered. Model TL lights provide a 360° visual indication and are aesthetically compatible with instrument or office equipment as well as being environmentally suitable for process and production applications. L E D T o w e r L i g h t s • Long Life LED Lamps • Flashing or Steady Light Modes • Loud 80dB/M Buzzer Only or Buzzer/Light Models • One Through Five Light Models • Base or Pole Mounting (All Mounting Hardware Supplied) • Replaceable Lenses and LED Lamp Modules • Unique Through-Prism, Light Refraction Design • IP54, Splash Proof Rated • Brushed Aluminum Poles and Design Enhanced Lights Provide Pleasing Aesthetics \\\SPECIFICATIONS OPERATING VOLTAGE 110 VAC, 50/60 Hz. 24 VDC 220 VAC Available—Special Order POWER CONSUMPTION 110 VAC, 40mA per Light 24 VDC, 20mA per Light RATING IP54 RECOMMENDED SWITCH RATING 2A BUZZER DECIBEL 80dB/M TERMINATION Wire Leads LAMP LIFE (LED) 100,000 Hours Est. FLASH RATE 60 FPM MOUNTING Base or Pole with 90° Angle Bracket All Hardware Supplied WEIGHT 1.75 lbs. to 2.35 lbs. For replacement bulbs, see page 143

Open the catalog to page 1

Marsh Bellofram Automatic Timing & Controls TL Series Tower Lights - 2

800.727.5646 automatictiming.com Automatic Timing & Controls TL Series Indicating Lights // TL Series 145 TOP TO BASE 1 Light — Red 2 Light — Red, Green 3 Light — Red, Amber, Green 4 Light — Red, Amber, Green, Blue 5 Light — Red, Amber, Green, Blue, Clear \\\DIMENSIONS (MILLIMETERS) \\\WIRING STEADY & FLASHING LIGHT MODELS STEADY & FLASHING BUZZER MODELS BUZZER ONLY MODELS STEADY LIGHT MODELS FLASHING LIGHT MODELS STEADY LIGHT WITH BUZZER MODELS BUZZER ONLY MODELS \\\STANDARD LIGHT/LENS SEQUENCE For replacement bulbs, see page 143
