Marsh Bellofram Automatic Timing & Controls Surface Mounting Bracket Accessories
Marsh Bellofram Automatic Timing & Controls Surface Mounting Bracket Accessories
This document provides details on surface mounting brackets used as accessories for various series of products by Automatic Timing & Controls. These brackets include an integral terminal strip that allows for convenient front access to all terminals.
Specifications
- The brackets are designed to facilitate surface mounting.
- They include an integral terminal strip for easy terminal access.
Ordering Information
- For Series 305: Order Part No. 0305-265-65-00
- For Series 333, 334, 342: Order Part No. 0325-260-62-00
- For Series 353, 354, 355, 356, 365, 366, 376, 378, 385: Order Part No. 0353-260-27-00
Dimensions
The document mentions dimensions in inches/millimeters, but specific measurements are not provided in the text.
Catalog excerpts

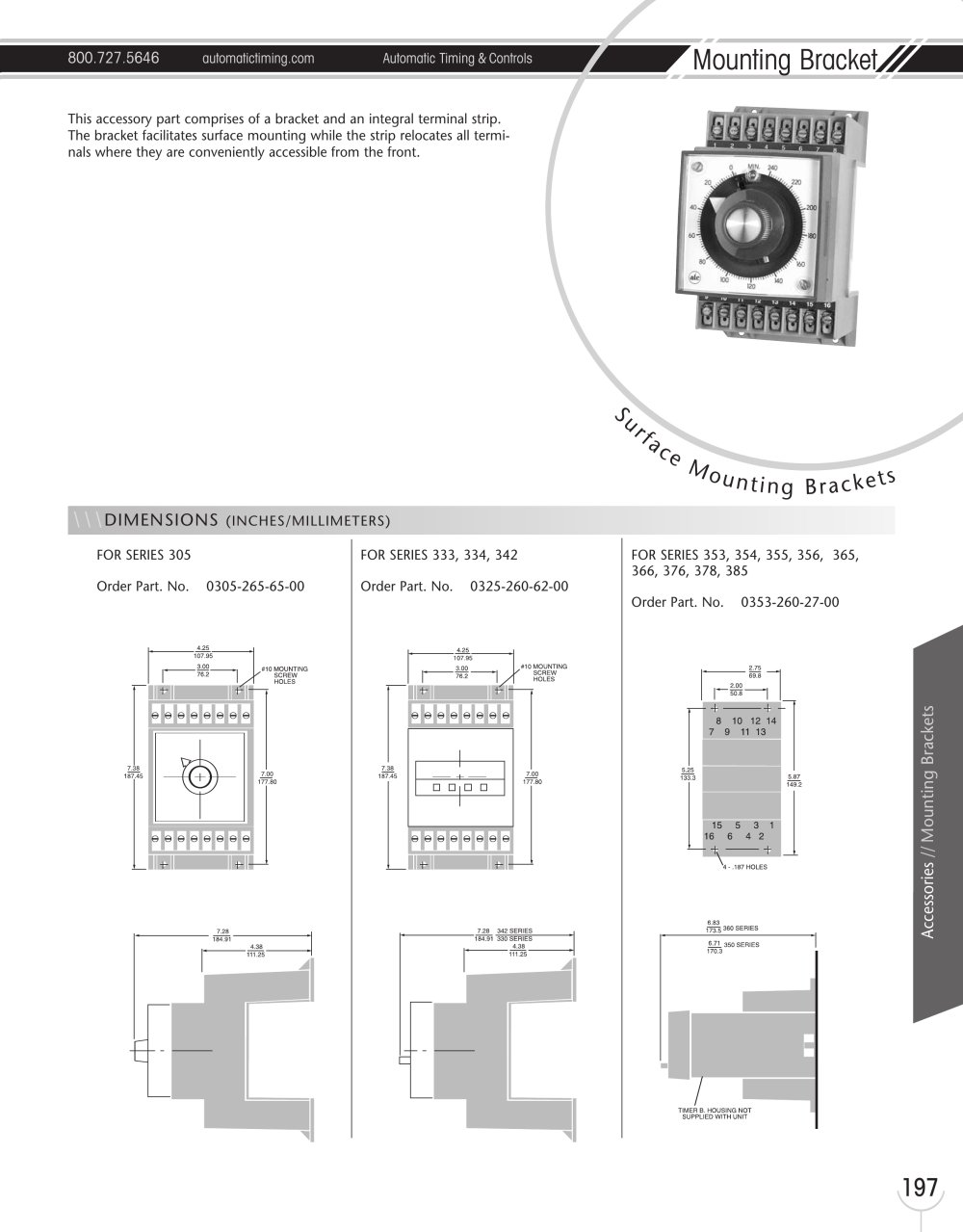

800.727.5646 automatictiming.com Automatic Timing & Controls Mounting Bracket Accessories // Mounting Brackets 197 S u r f ace Mo u n t i n g B r a c k e t s This accessory part comprises of a bracket and an integral terminal strip. The bracket facilitates surface mounting while the strip relocates all terminals where they are conveniently accessible from the front. FOR SERIES 305 Order Part. No. 0305-265-65-00 FOR SERIES 333, 334, 342 Order Part. No. 0325-260-62-00 FOR SERIES 353, 354, 355, 356, 365, 366, 376, 378, 385 Order Part. No. 0353-260-27-00 \\\DIMENSIONS (INCHES/MILLIMETERS)
