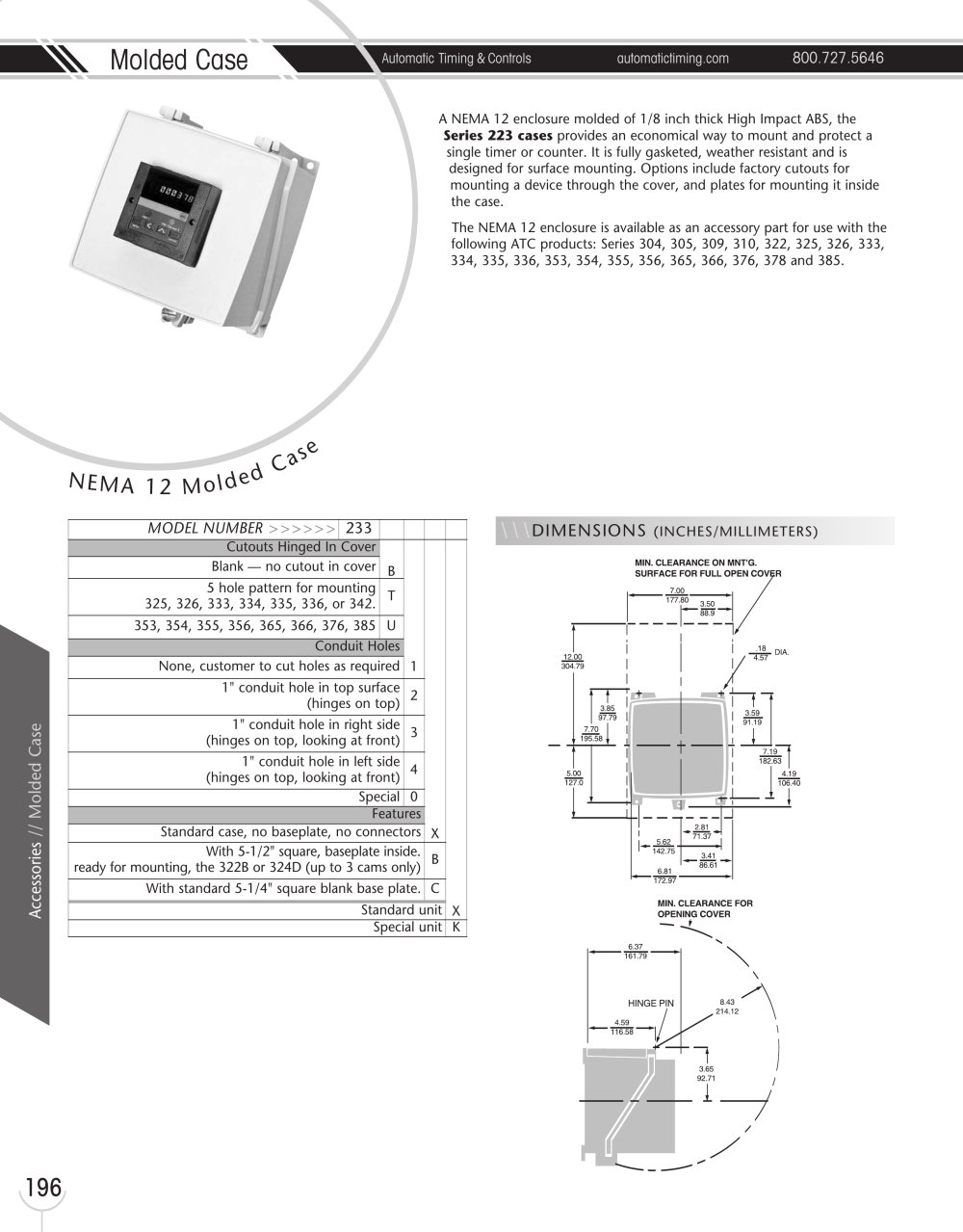

Molded Case Automatic Timing & Controls automatictiming.com 800.727.5646 196 Accessories // Molded Case N E M A 1 2 Mo ld e d C a s e MODEL NUMBER >>>>>> 233 \\\DIMENSIONS (INCHES/MILLIMETERS) Cutouts Hinged In Cover B 1 X X Blank — no cutout in cover 5 hole pattern for mounting 325, 326, 333, 334, 335, 336, or 342. T 353, 354, 355, 356, 365, 366, 376, 385 U Conduit Holes None, customer to cut holes as required 1" conduit hole in top surface (hinges on top) 2 1" conduit hole in right side (hinges on top, looking at front) 3 1" conduit hole in left side (hinges on top, looking at front) 4 Special 0 Features Standard case, no baseplate, no connectors With 5-1/2" square, baseplate inside. ready for mounting, the 322B or 324D (up to 3 cams only) B With standard 5-1/4" square blank base plate. C Standard unit Special unit K A NEMA 12 enclosure molded of 1/8 inch thick High Impact ABS, the Series 223 cases provides an economical way to mount and protect a single timer or counter. It is fully gasketed, weather resistant and is designed for surface mounting. Options include factory cutouts for mounting a device through the cover, and plates for mounting it inside the case. The NEMA 12 enclosure is available as an accessory part for use with the following ATC products: Series 304, 305, 309, 310, 322, 325, 326, 333, 334, 335, 336, 353, 354, 355, 356, 365, 366, 376, 378 and 385.
