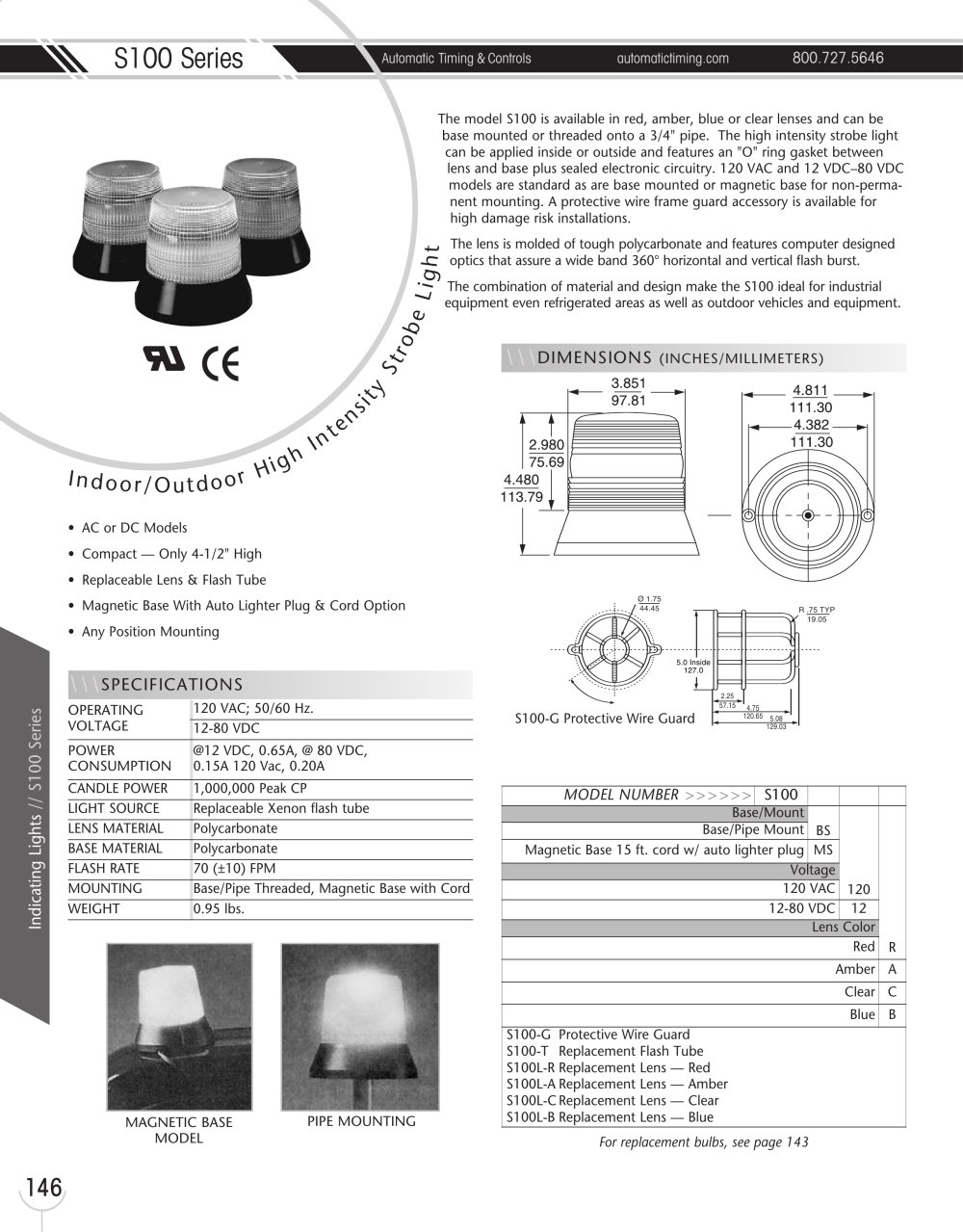

Marsh Bellofram Automatic Timing & Controls S100 Series High-Intensity Strobe Lights - 1

Automatic Timing & Controls automatictiming.com 800.727.5646 146 Indicating Lights // S100 Series S100 Series The model S100 is available in red, amber, blue or clear lenses and can be base mounted or threaded onto a 3/4" pipe. The high intensity strobe light can be applied inside or outside and features an "O" ring gasket between lens and base plus sealed electronic circuitry. 120 VAC and 12 VDC–80 VDC models are standard as are base mounted or magnetic base for non-permanent mounting. A protective wire frame guard accessory is available for high damage risk installations. The lens is molded of tough polycarbonate and features computer designed optics that assure a wide band 360° horizontal and vertical flash burst. The combination of material and design make the S100 ideal for industrial equipment even refrigerated areas as well as outdoor vehicles and equipment. I n d o o r / O u t doo r Hi g h I n t ens i t y S t robe L ight 2.25 57.15 4.75 120.65 5.08 129.03 Ø 1.75 44.45 5.0 Inside 127.0 • AC or DC Models • Compact — Only 4-1/2" High • Replaceable Lens & Flash Tube • Magnetic Base With Auto Lighter Plug & Cord Option • Any Position Mounting MAGNETIC BASE MODEL PIPE MOUNTING S100-G Protective Wire Guard \\\SPECIFICATIONS OPERATING VOLTAGE 120 VAC; 50/60 Hz. 12-80 VDC POWER CONSUMPTION @12 VDC, 0.65A, @ 80 VDC, 0.15A 120 Vac, 0.20A CANDLE POWER 1,000,000 Peak CP LIGHT SOURCE Replaceable Xenon flash tube LENS MATERIAL Polycarbonate BASE MATERIAL Polycarbonate FLASH RATE 70 (±10) FPM MOUNTING Base/Pipe Threaded, Magnetic Base with Cord WEIGHT 0.95 lbs. R .75 TYP 19.05 2.25 57.15 4.75 120.65 5.08 129.03 Ø 1.75 44.45 5.0 Inside 127.0 MODEL NUMBER >>>>>> S100 Base/Mount BS 120 R Base/Pipe Mount Magnetic Base 15 ft. cord w/ auto lighter plug MS Voltage 120 VAC 12-80 VDC 12 Lens Color Red Amber A Clear C Blue B S100-G Protective Wire Guard S100-T Replacement Flash Tube S100L-R Replacement Lens — Red S100L-A Replacement Lens — Amber S100L-C Replacement Lens — Clear S100L-B Replacement Lens — Blue For replacement bulbs, see page 143 \\\DIMENSIONS (INCHES/MILLIMETERS)
