Marsh Bellofram Automatic Timing & Controls Rotating/Audio Tower Lights

Product catalog summary

Overview: The document provides technical specifications and ordering information for rotating lights and magnum size rotating/audio tower lights, suitable for industrial applications.

Rotating Lights Specifications:

Available in four styles with operating voltages of 110/220 VAC or 24 VDC.
Power consumption is 0.1A with a bulb rating of 12V, 5W or 24V, 5W.
Reflector rotation speed is 130 RPM, and the lens diameter is 80mm.
Weight ranges from 14 oz. to 22 oz.
Available in four dome colors: Red, Amber, Green, and Blue.

Magnum Size Rotating/Audio Tower Light Specifications:

Features a 105-decibel selectable alarm or melody audio, ideal for noisy industrial locations.
Uses a 25W bulb with a large reflector surface for long-distance viewing and hearing.
Available in models with 1, 2, or 3 lights, with a large 5" diameter lens.
Operating voltage is 110 VAC with a power consumption of 2.08A.
Rotation lens speed is 150 RPM, and the light source is a replaceable 25W bulb.
Weight is 22 oz., and audio options include a 105 db warning and a 70 db melody.

Ordering Information:

Model numbers specify the number of lights and lens colors, e.g., TR125BSA-110-1 for one red light, TR125BSA-110-2 for red and green lights, and TR125BSA-110-3 for red, amber, and green lights.
Lens and mounting styles are indicated by model numbers, with options for cylinder or dome styles and various mounting bases.

Catalog excerpts

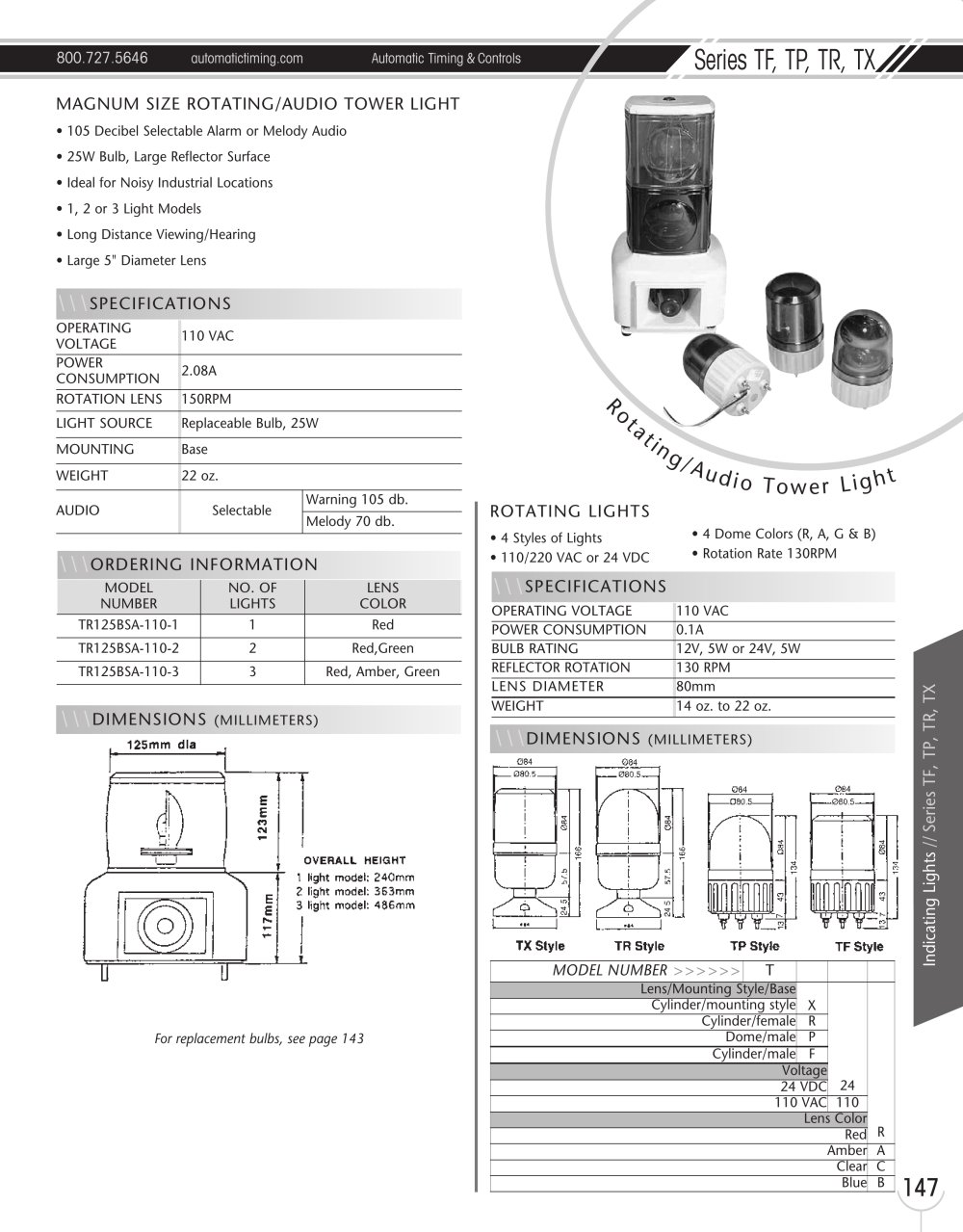

Marsh Bellofram Automatic Timing & Controls Rotating/Audio Tower Lights -1

ROTATING LIGHTS • 4 Styles of Lights • 110/220 VAC or 24 VDC \\\DIMENSIONS (MILLIMETERS) \\\SPECIFICATIONS OPERATING VOLTAGE 110 VAC POWER CONSUMPTION 0.1A BULB RATING 12V, 5W or 24V, 5W REFLECTOR ROTATION 130 RPM LENS DIAMETER 80mm WEIGHT 14 oz. to 22 oz. • 4 Dome Colors (R, A, G & B) • Rotation Rate 130RPM 800.727.5646 automatictiming.com Automatic Timing & Controls Series TF, TP, TR, TX Indicating Lights // Series TF, TP, TR, TX R o t a t in g/ A u d i o T o w e r L i g ht 147 MAGNUM SIZE ROTATING/AUDIO TOWER LIGHT • 105 Decibel Selectable Alarm or Melody Audio • 25W Bulb, Large Reflector Surface • Ideal for Noisy Industrial Locations • 1, 2 or 3 Light Models • Long Distance Viewing/Hearing • Large 5" Diameter Lens \\\DIMENSIONS (MILLIMETERS) \\\ORDERING INFORMATION MODEL NUMBER NO. OF LIGHTS LENS COLOR TR125BSA-110-1 1 Red TR125BSA-110-2 2 Red,Green TR125BSA-110-3 3 Red, Amber, Green \\\SPECIFICATIONS OPERATING VOLTAGE 110 VAC POWER CONSUMPTION 2.08A ROTATION LENS 150RPM LIGHT SOURCE Replaceable Bulb, 25W MOUNTING Base WEIGHT 22 oz. AUDIO Selectable Warning 105 db. Melody 70 db. For replacement bulbs, see page 143 MODEL NUMBER >>>>>> T Lens/Mounting Style/Base X 24 R Cylinder/mounting style Cylinder/female R Dome/male P Cylinder/male F Voltage 24 VDC 110 VAC 110 Lens Color Red Amber A Clear C Blue B
