Marsh Bellofram Automatic Timing & Controls Model 5708A Multi-Function Timer/Counter

Marsh Bellofram Automatic Timing & Controls Model 5708A Multi-Function Timer/Counter

Product catalog summary

Overview: The 5708A model is a multifunctional device that operates as a timer, counter, frequency meter, and tachometer. It features 23 selectable functions, including 15 timer functions and 6 counter functions, all accessible via a setup menu. The unit is designed for ease of use with a unique battery cover for simple battery replacement and requires no external power source.

Specifications:

Display: 8-digit high-resolution LCD with 15 selectable display options.
Power: Operates on an LR44 battery.
Protection: Front IP66 water protection.
Operating Temperature: 14° to 131° F (-10° to 55° C).
Mounting: 1/32 Din.
Weight: 33 g.
Vibration Resistance: Complies with IEC 60068-2-6.
Electromagnetic Compatibility: IEC 60068-4-2 (4KV Air/2KV Contact), IEC 60068-4-3 (10V/m from 80MHz to 1GHz), IEC 60068-4-4 (1KV Input).

Functional Capabilities:

Timer: 15 selectable display functions.
Counter: Frequency response is programmable to eliminate switch key-bounce and edge trigger, with options for <50 cps, <100 cps, and <600 cps.
Frequency Meter: Response frequency range from 2.5 Hz to 1300 Hz, with a 4-digit display.
Tachometer: RPM range from 150 to 78,000 RPM, with a maximum 5-digit display.

Design and Dimensions: The unit is compact with dimensions provided in millimeters, ensuring it fits into various setups. The design includes a front panel reset and remote reset capability.

Ordering Information: The multifunction timer-counter can be ordered using the model number 5708A. For more information, contact Automatic Timing & Controls at their Newell, WV location.

Catalog excerpts

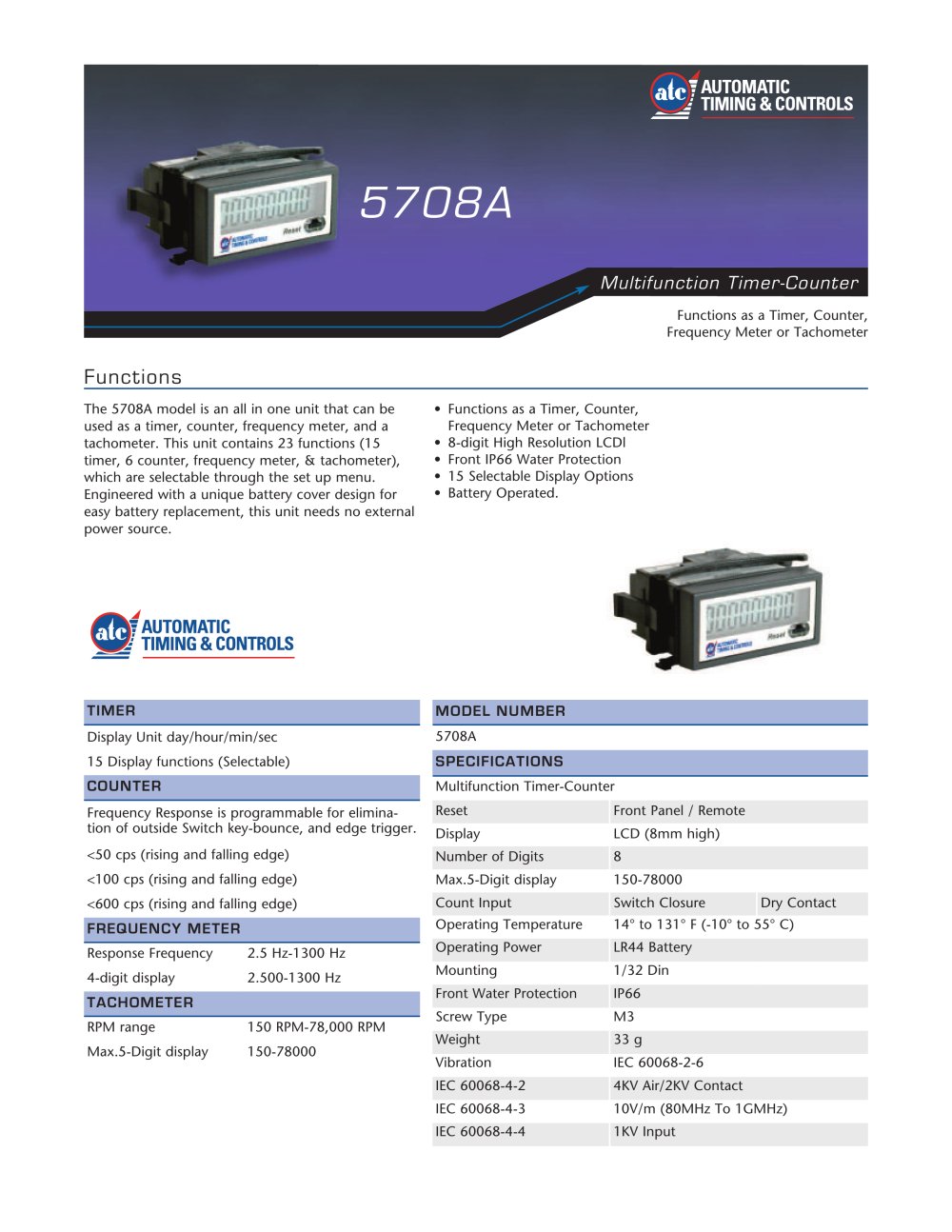

Marsh Bellofram Automatic Timing & Controls Model 5708A Multi-Function Timer/Counter-1

TIMER Display Unit day/hour/min/sec 15 Display functions (Selectable) COUNTER Frequency Response is programmable for elimination of outside Switch key-bounce, and edge trigger. <50 cps (rising and falling edge) <100 cps (rising and falling edge) <600 cps (rising and falling edge) FREQUENCY METER Response Frequency 2.5 Hz-1300 Hz 4-digit display 2.500-1300 Hz TACHOMETER RPM range 150 RPM-78,000 RPM Max.5-Digit display 150-78000 The 5708A model is an all in one unit that can be used as a timer, counter, frequency meter, and a tachometer. This unit contains 23 functions (15 timer, 6 counter, frequency meter, & tachometer), which are selectable through the set up menu. Engineered with a unique battery cover design for easy battery replacement, this unit needs no external power source. • Functions as a Timer, Counter, Frequency Meter or Tachometer • 8-digit High Resolution LCDl • Front IP66 Water Protection • 15 Selectable Display Options • Battery Operated. Multifunction Timer-Counter Functions 5708A MODEL NUMBER 5708A SPECIFICATIONS Multifunction Timer-Counter Reset Front Panel / Remote Display LCD (8mm high) Number of Digits 8 Max.5-Digit display 150-78000 Count Input Switch Closure Dry Contact Operating Temperature 14° to 131° F (-10° to 55° C) Operating Power LR44 Battery Mounting 1/32 Din Front Water Protection IP66 Screw Type M3 Weight 33 g Vibration IEC 60068-2-6 IEC 60068-4-2 4KV Air/2KV Contact IEC 60068-4-3 10V/m (80MHz To 1GMHz) IEC 60068-4-4 1KV Input Functions as a Timer, Counter, Frequency Meter or Tachometer

Open the catalog to page 1

Marsh Bellofram Automatic Timing & Controls Model 5708A Multi-Function Timer/Counter-2

LTATC5708 PDF 4/09 Ordering Information Multifunction Timer-Counter 5708A Dimensions (mm) 8019 Ohio River Blvd Newell, WV 26050 304.387.1200 800.727.5646 www.automatictiming.com 29.50 mm 58 mm 51.70 mm 25.70 mm 7 mm 45.89 mm 42.19 mm 40.10 mm 44.60 mm 21.80 mm

Open the catalog to page 2
