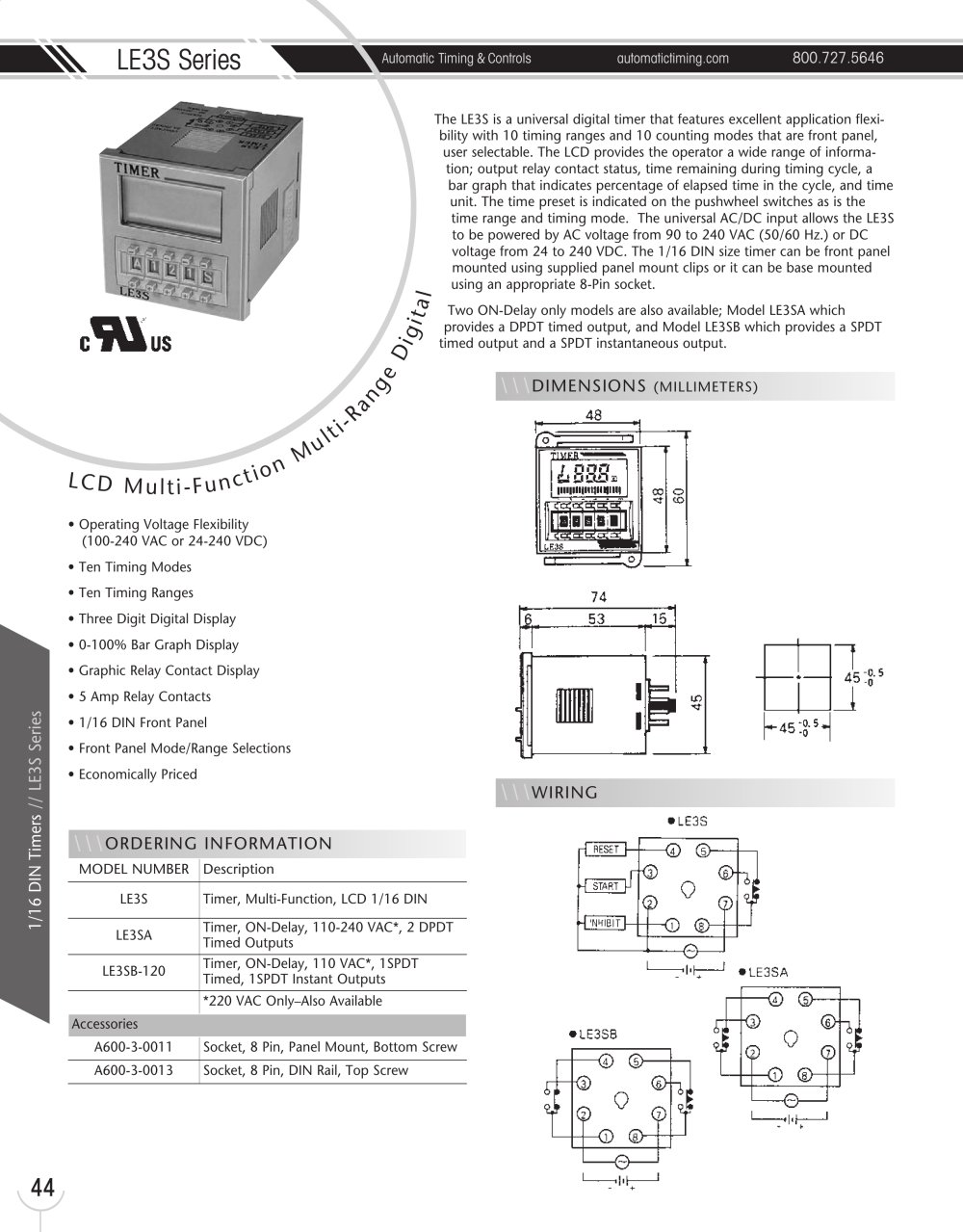

LE3S Series Automatic Timing & Controls automatictiming.com 800.727.5646 441/16 DIN Timers // LE3S Series The LE3S is a universal digital timer that features excellent application flexibility with 10 timing ranges and 10 counting modes that are front panel, user selectable. The LCD provides the operator a wide range of information; output relay contact status, time remaining during timing cycle, a bar graph that indicates percentage of elapsed time in the cycle, and time unit. The time preset is indicated on the pushwheel switches as is the time range and timing mode. The universal AC/DC input allows the LE3S to be powered by AC voltage from 90 to 240 VAC (50/60 Hz.) or DC voltage from 24 to 240 VDC. The 1/16 DIN size timer can be front panel mounted using supplied panel mount clips or it can be base mounted using an appropriate 8-Pin socket. Two ON-Delay only models are also available; Model LE3SA which provides a DPDT timed output, and Model LE3SB which provides a SPDT timed output and a SPDT instantaneous output. L C D M u l t i - F u n ct i o n Mu l t i - Range Digital • Operating Voltage Flexibility (100-240 VAC or 24-240 VDC) • Ten Timing Modes • Ten Timing Ranges • Three Digit Digital Display • 0-100% Bar Graph Display • Graphic Relay Contact Display • 5 Amp Relay Contacts • 1/16 DIN Front Panel • Front Panel Mode/Range Selections • Economically Priced \\\DIMENSIONS (MILLIMETERS) \\\WIRING \\\ORDERING INFORMATION MODEL NUMBER Description LE3S Timer, Multi-Function, LCD 1/16 DIN LE3SA Timer, ON-Delay, 110-240 VAC*, 2 DPDT Timed Outputs LE3SB-120 Timer, ON-Delay, 110 VAC*, 1SPDT Timed, 1SPDT Instant Outputs *220 VAC Only–Also Available Accessories A600-3-0011 Socket, 8 Pin, Panel Mount, Bottom Screw A600-3-0013 Socket, 8 Pin, DIN Rail, Top Screw

Open the catalog to page 1

Marsh Bellofram Automatic Timing & Controls LE3S Series LCD Multi-Function Multi-Range Universal Digital Timer-2

800.727.5646 automatictiming.com Automatic Timing & Controls LE3S Series 1/16 DIN Timers // LE3S Series 45 \\\SPECIFICATIONS–ALL MODELS TIMING RANGES 0.01 SEC to 9.99 SEC 0.1 SEC to 99.9 SEC 1 SEC to 999 SEC 0.1 MIN to 99.9 MIN 1 MIN to 999 MIN 0.1 HR to 99.9 HR 1 HR to 999 HR 10 HR to 9990 HR 0 MIN 1 SEC to 9 MIN 59 SEC 0 HR 1 MIN to 9 HR 59 MIN TIME SETTING Front Panel Pushwheel Switch TIME REPEAT ACCURACY ±0.005% Timing ±0.03 SEC for Input Signals ±0.05 SEC on Power Up CONTROL VOLTAGE INITIATE TIME 0.05 SEC MEMORY Non-Volatile Circuitry POWER CONSUMPTION 5 VA RELAY MECHANICAL LIFE 10 Million...
