Catalog excerpts

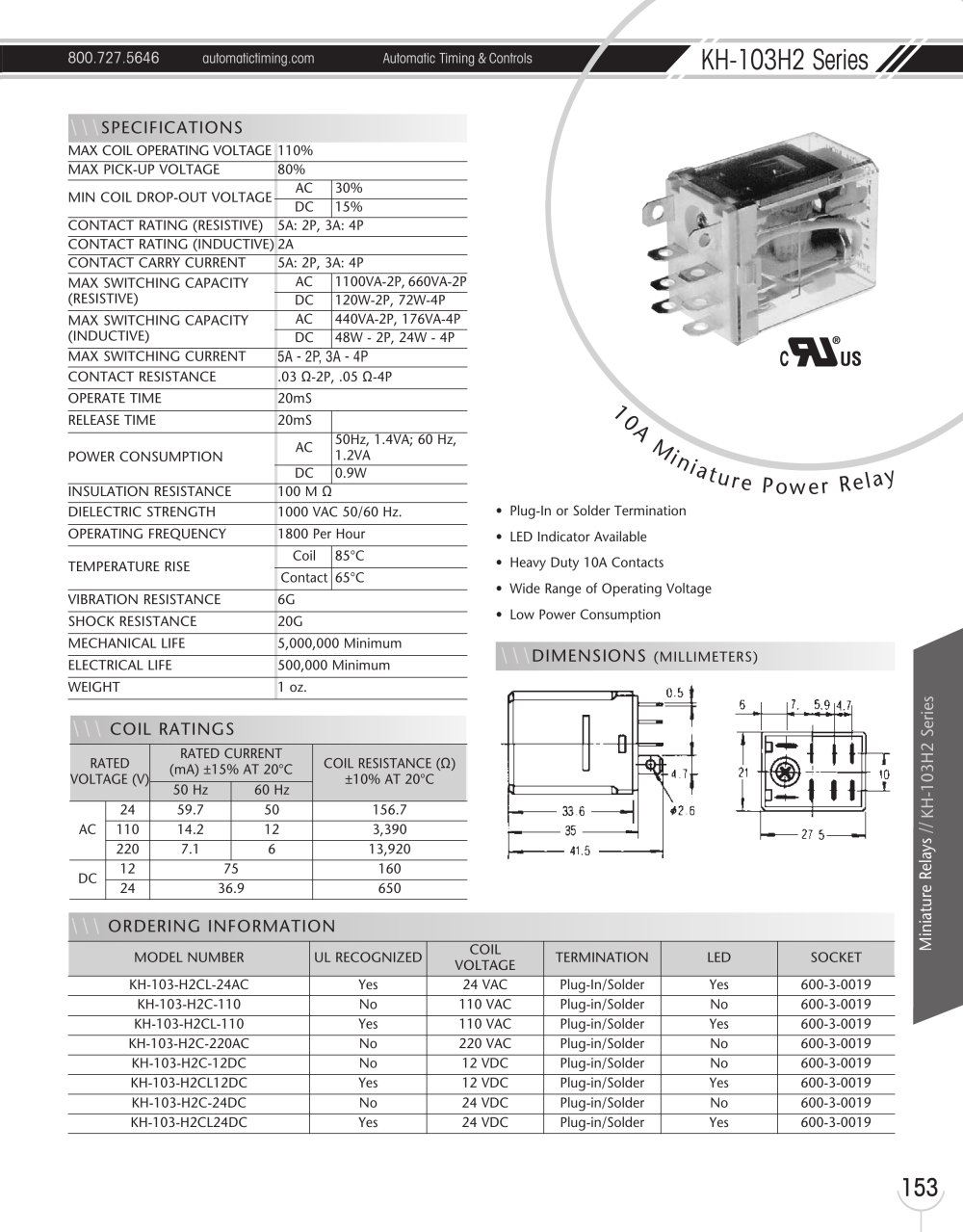

800.727.5646 automatictiming.com Automatic Timing & Controls KH-103H2 Series Miniature Relays // KH-103H2 Series 153 1 0 A Mi n i a t u r e P o w e r R e l a y \\\SPECIFICATIONS MAX COIL OPERATING VOLTAGE 110% MAX PICK-UP VOLTAGE 80% MIN COIL DROP-OUT VOLTAGE AC 30% DC 15% CONTACT RATING (RESISTIVE) 5A: 2P, 3A: 4P CONTACT RATING (INDUCTIVE) 2A CONTACT CARRY CURRENT 5A: 2P, 3A: 4P MAX SWITCHING CAPACITY (RESISTIVE) AC 1100VA-2P, 660VA-2P DC 120W-2P, 72W-4P MAX SWITCHING CAPACITY (INDUCTIVE) AC 440VA-2P, 176VA-4P DC 48W - 2P, 24W - 4P MAX SWITCHING CURRENT 5A - 2P, 3A - 4P CONTACT RESISTANCE .03 ½-2P, .05 ½-4P OPERATE TIME 20mS RELEASE TIME 20mS POWER CONSUMPTION AC 50Hz, 1.4VA; 60 Hz, 1.2VA DC 0.9W INSULATION RESISTANCE 100 M ½ DIELECTRIC STRENGTH 1000 VAC 50/60 Hz. OPERATING FREQUENCY 1800 Per Hour TEMPERATURE RISE Coil 85°C Contact 65°C VIBRATION RESISTANCE 6G SHOCK RESISTANCE 20G MECHANICAL LIFE 5,000,000 Minimum ELECTRICAL LIFE 500,000 Minimum WEIGHT 1 oz. \\\ ORDERING INFORMATION MODEL NUMBER UL RECOGNIZED COIL VOLTAGE TERMINATION LED SOCKET KH-103-H2CL-24AC Yes 24 VAC Plug-In/Solder Yes 600-3-0019 KH-103-H2C-110 No 110 VAC Plug-in/Solder No 600-3-0019 KH-103-H2CL-110 Yes 110 VAC Plug-in/Solder Yes 600-3-0019 KH-103-H2C-220AC No 220 VAC Plug-in/Solder No 600-3-0019 KH-103-H2C-12DC No 12 VDC Plug-in/Solder No 600-3-0019 KH-103-H2CL12DC Yes 12 VDC Plug-in/Solder Yes 600-3-0019 KH-103-H2C-24DC No 24 VDC Plug-in/Solder No 600-3-0019 KH-103-H2CL24DC Yes 24 VDC Plug-in/Solder Yes 600-3-0019 \\\ COIL RATINGS RATED VOLTAGE (V) RATED CURRENT (mA) ±15% AT 20°C COIL RESISTANCE (½) ±10% AT 20°C 50 Hz 60 Hz AC 24 59.7 50 156.7 110 14.2 12 3,390 220 7.1 6 13,920 DC 12 75 160 24 36.9 650 \\\DIMENSIONS (MILLIMETERS) • Plug-In or Solder Termination • LED Indicator Available • Heavy Duty 10A Contacts • Wide Range of Operating Voltage • Low Power Consumption
