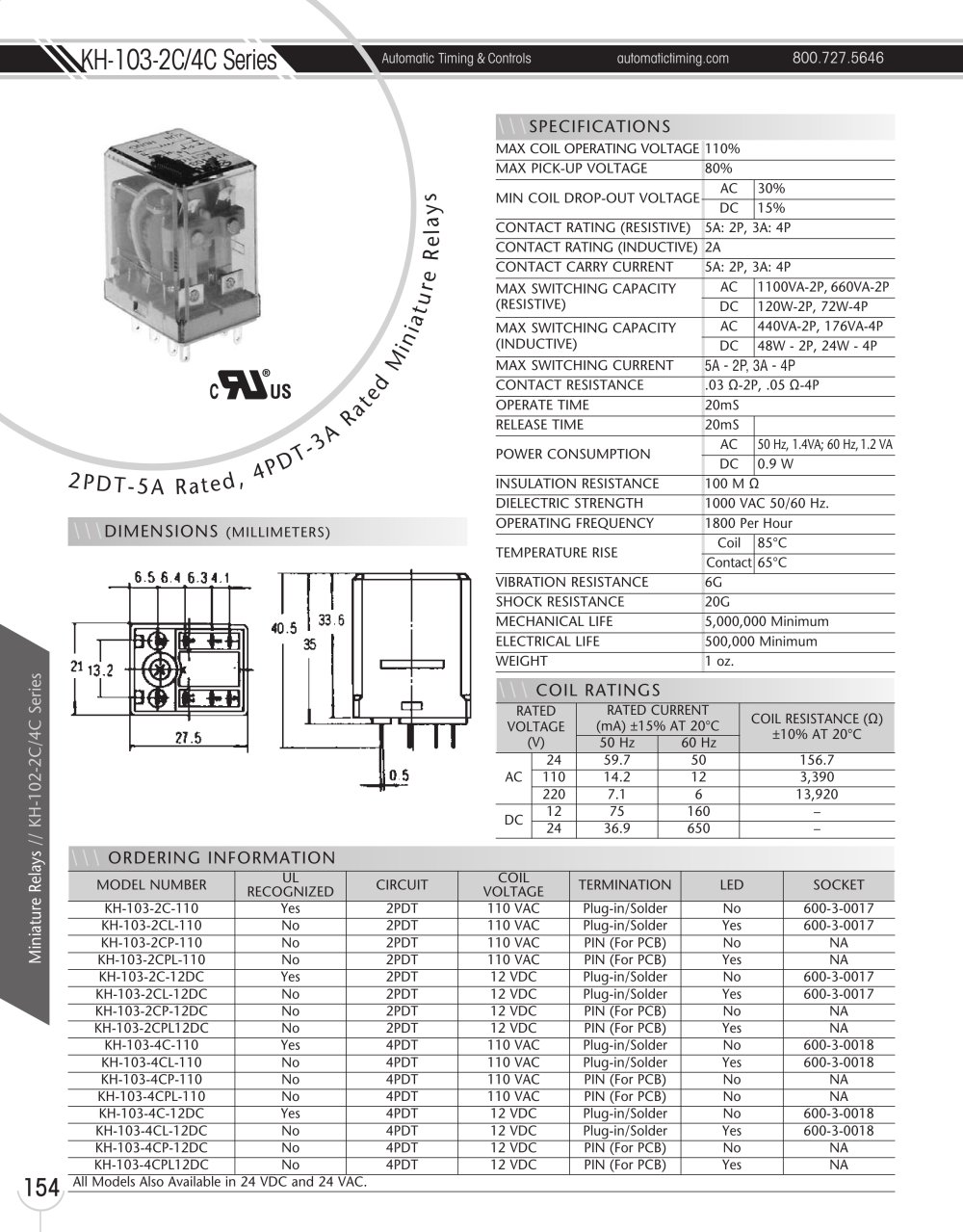

KH-103-2C/4C Series Automatic Timing & Controls automatictiming.com 800.727.5646 154Miniature Relays // KH-102-2C/4C Series 2 P D T - 5 A R a t ed , 4 P D T - 3A Ra t ed Miniature Relays \\\SPECIFICATIONS MAX COIL OPERATING VOLTAGE 110% MAX PICK-UP VOLTAGE 80% MIN COIL DROP-OUT VOLTAGE AC 30% DC 15% CONTACT RATING (RESISTIVE) 5A: 2P, 3A: 4P CONTACT RATING (INDUCTIVE) 2A CONTACT CARRY CURRENT 5A: 2P, 3A: 4P MAX SWITCHING CAPACITY (RESISTIVE) AC 1100VA-2P, 660VA-2P DC 120W-2P, 72W-4P MAX SWITCHING CAPACITY (INDUCTIVE) AC 440VA-2P, 176VA-4P DC 48W - 2P, 24W - 4P MAX SWITCHING CURRENT 5A - 2P, 3A - 4P CONTACT RESISTANCE .03 ½-2P, .05 ½-4P OPERATE TIME 20mS RELEASE TIME 20mS POWER CONSUMPTION AC 50 Hz, 1.4VA; 60 Hz, 1.2 VA DC 0.9 W INSULATION RESISTANCE 100 M ½ DIELECTRIC STRENGTH 1000 VAC 50/60 Hz. OPERATING FREQUENCY 1800 Per Hour TEMPERATURE RISE Coil 85°C Contact 65°C VIBRATION RESISTANCE 6G SHOCK RESISTANCE 20G MECHANICAL LIFE 5,000,000 Minimum ELECTRICAL LIFE 500,000 Minimum WEIGHT 1 oz. \\\ ORDERING INFORMATION MODEL NUMBER UL RECOGNIZED CIRCUIT COIL VOLTAGE TERMINATION LED SOCKET KH-103-2C-110 Yes 2PDT 110 VAC Plug-in/Solder No 600-3-0017 KH-103-2CL-110 No 2PDT 110 VAC Plug-in/Solder Yes 600-3-0017 KH-103-2CP-110 No 2PDT 110 VAC PIN (For PCB) No NA KH-103-2CPL-110 No 2PDT 110 VAC PIN (For PCB) Yes NA KH-103-2C-12DC Yes 2PDT 12 VDC Plug-in/Solder No 600-3-0017 KH-103-2CL-12DC No 2PDT 12 VDC Plug-in/Solder Yes 600-3-0017 KH-103-2CP-12DC No 2PDT 12 VDC PIN (For PCB) No NA KH-103-2CPL12DC No 2PDT 12 VDC PIN (For PCB) Yes NA KH-103-4C-110 Yes 4PDT 110 VAC Plug-in/Solder No 600-3-0018 KH-103-4CL-110 No 4PDT 110 VAC Plug-in/Solder Yes 600-3-0018 KH-103-4CP-110 No 4PDT 110 VAC PIN (For PCB) No NA KH-103-4CPL-110 No 4PDT 110 VAC PIN (For PCB) No NA KH-103-4C-12DC Yes 4PDT 12 VDC Plug-in/Solder No 600-3-0018 KH-103-4CL-12DC No 4PDT 12 VDC Plug-in/Solder Yes 600-3-0018 KH-103-4CP-12DC No 4PDT 12 VDC PIN (For PCB) No NA KH-103-4CPL12DC No 4PDT 12 VDC PIN (For PCB) Yes NA All Models Also Available in 24 VDC and 24 VAC. \\\ COIL RATINGS RATED VOLTAGE (V) RATED CURRENT (mA) ±15% AT 20°C COIL RESISTANCE (½) 50 Hz 60 Hz ±10% AT 20°C AC 24 59.7 50 156.7 110 14.2 12 3,390 220 7.1 6 13,920 DC 12 75 160 – 24 36.9 650 – \\\DIMENSIONS (MILLIMETERS)
