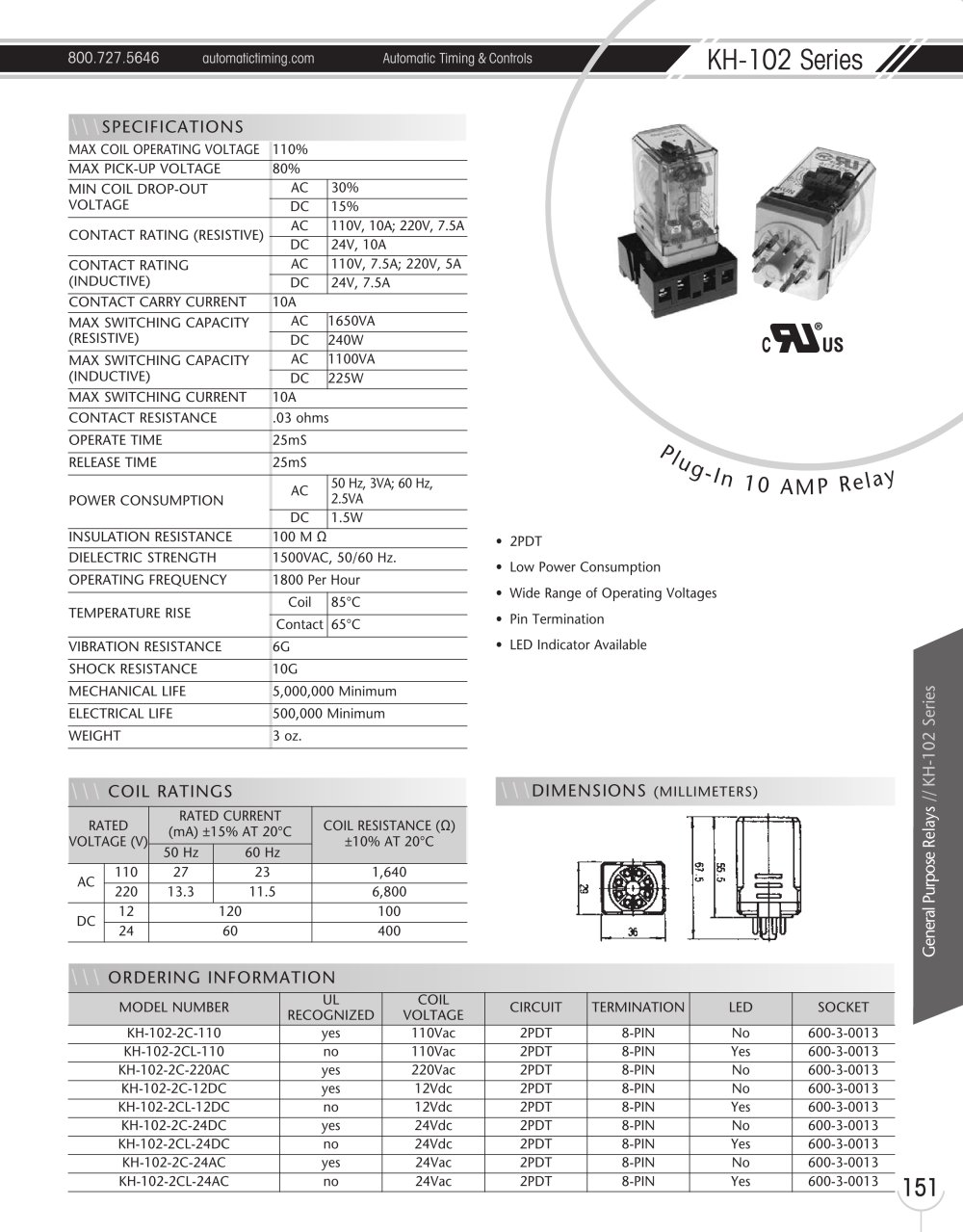

800.727.5646 automatictiming.com Automatic Timing & Controls KH-102 Series General Purpose Relays // KH-102 Series 151 P l u g- I n 1 0 AM P R e l a y \\\SPECIFICATIONS MAX COIL OPERATING VOLTAGE 110% MAX PICK-UP VOLTAGE 80% MIN COIL DROP-OUT VOLTAGE AC 30% DC 15% CONTACT RATING (RESISTIVE) AC 110V, 10A; 220V, 7.5A DC 24V, 10A CONTACT RATING (INDUCTIVE) AC 110V, 7.5A; 220V, 5A DC 24V, 7.5A CONTACT CARRY CURRENT 10A MAX SWITCHING CAPACITY (RESISTIVE) AC 1650VA DC 240W MAX SWITCHING CAPACITY (INDUCTIVE) AC 1100VA DC 225W MAX SWITCHING CURRENT 10A CONTACT RESISTANCE .03 ohms OPERATE TIME 25mS RELEASE TIME 25mS POWER CONSUMPTION AC 50 Hz, 3VA; 60 Hz, 2.5VA DC 1.5W INSULATION RESISTANCE 100 M ½ DIELECTRIC STRENGTH 1500VAC, 50/60 Hz. OPERATING FREQUENCY 1800 Per Hour TEMPERATURE RISE Coil 85°C Contact 65°C VIBRATION RESISTANCE 6G SHOCK RESISTANCE 10G MECHANICAL LIFE 5,000,000 Minimum ELECTRICAL LIFE 500,000 Minimum WEIGHT 3 oz. • 2PDT • Low Power Consumption • Wide Range of Operating Voltages • Pin Termination • LED Indicator Available \\\ ORDERING INFORMATION MODEL NUMBER UL RECOGNIZED COIL VOLTAGE CIRCUIT TERMINATION LED SOCKET KH-102-2C-110 yes 110Vac 2PDT 8-PIN No 600-3-0013 KH-102-2CL-110 no 110Vac 2PDT 8-PIN Yes 600-3-0013 KH-102-2C-220AC yes 220Vac 2PDT 8-PIN No 600-3-0013 KH-102-2C-12DC yes 12Vdc 2PDT 8-PIN No 600-3-0013 KH-102-2CL-12DC no 12Vdc 2PDT 8-PIN Yes 600-3-0013 KH-102-2C-24DC yes 24Vdc 2PDT 8-PIN No 600-3-0013 KH-102-2CL-24DC no 24Vdc 2PDT 8-PIN Yes 600-3-0013 KH-102-2C-24AC yes 24Vac 2PDT 8-PIN No 600-3-0013 KH-102-2CL-24AC no 24Vac 2PDT 8-PIN Yes 600-3-0013 \\\ COIL RATINGS RATED VOLTAGE (V) RATED CURRENT (mA) ±15% AT 20°C COIL RESISTANCE (½) ±10% AT 20°C 50 Hz 60 Hz AC 110 27 23 1,640 220 13.3 11.5 6,800 DC 12 120 100 24 60 400 \\\DIMENSIONS (MILLIMETERS)
