Marsh Bellofram Automatic Timing & Controls HYT Series Status Indicator Tower Lights

Marsh Bellofram Automatic Timing & Controls HYT Series Status Indicator Tower Lights
2Pages

Catalog excerpts

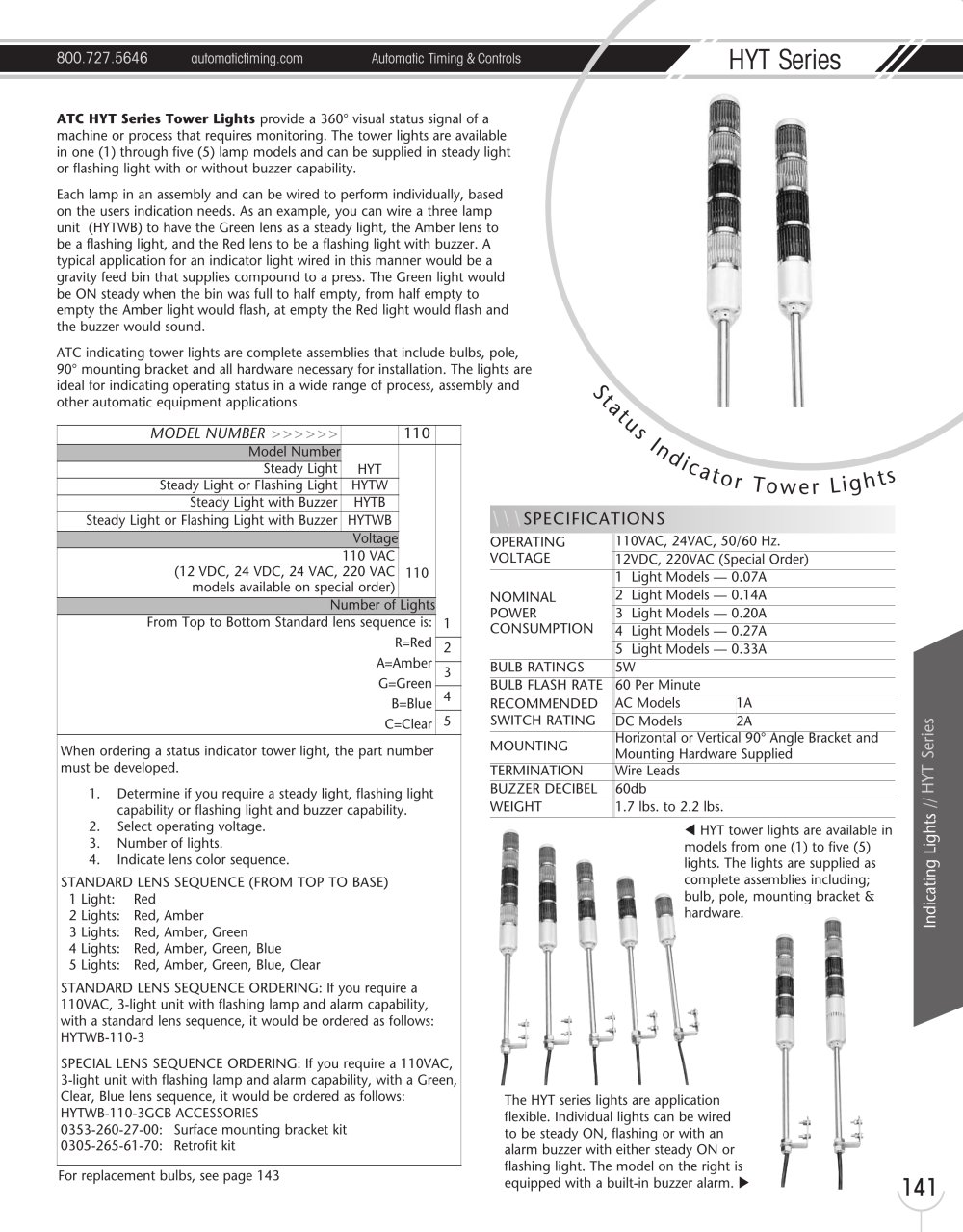

Marsh Bellofram Automatic Timing & Controls HYT Series Status Indicator Tower Lights - 1

800.727.5646 automatictiming.com Automatic Timing & Controls HYT Series Indicating Lights // HYT Series ATC HYT Series Tower Lights provide a 360° visual status signal of a machine or process that requires monitoring. The tower lights are available in one (1) through five (5) lamp models and can be supplied in steady light or flashing light with or without buzzer capability. Each lamp in an assembly and can be wired to perform individually, based on the users indication needs. As an example, you can wire a three lamp unit (HYTWB) to have the Green lens as a steady light, the Amber lens to be a flashing light, and the Red lens to be a flashing light with buzzer. A typical application for an indicator light wired in this manner would be a gravity feed bin that supplies compound to a press. The Green light would be ON steady when the bin was full to half empty, from half empty to empty the Amber light would flash, at empty the Red light would flash and the buzzer would sound. ATC indicating tower lights are complete assemblies that include bulbs, pole, 90° mounting bracket and all hardware necessary for installation. The lights are ideal for indicating operating status in a wide range of process, assembly and other automatic equipment applications. S t a t u s I ndi c a t o r T o w e r L i g h t s 141 MODEL NUMBER >>>>>> 110 Model Number HYT 110 1 Steady Light Steady Light or Flashing Light HYTW Steady Light with Buzzer HYTB Steady Light or Flashing Light with Buzzer HYTWB Voltage 110 VAC (12 VDC, 24 VDC, 24 VAC, 220 VAC models available on special order) Number of Lights From Top to Bottom Standard lens sequence is: R=Red A=Amber G=Green B=Blue C=Clear 2 3 4 5 When ordering a status indicator tower light, the part number must be developed. 1. Determine if you require a steady light, flashing light capability or flashing light and buzzer capability. 2. Select operating voltage. 3. Number of lights. 4. Indicate lens color sequence. STANDARD LENS SEQUENCE (FROM TOP TO BASE) 1 Light: Red 2 Lights: Red, Amber 3 Lights: Red, Amber, Green 4 Lights: Red, Amber, Green, Blue 5 Lights: Red, Amber, Green, Blue, Clear STANDARD LENS SEQUENCE ORDERING: If you require a 110VAC, 3-light unit with flashing lamp and alarm capability, with a standard lens sequence, it would be ordered as follows: HYTWB-110-3 SPECIAL LENS SEQUENCE ORDERING: If you require a 110VAC, 3-light unit with flashing lamp and alarm capability, with a Green, Clear, Blue lens sequence, it would be ordered as follows: HYTWB-110-3GCB ACCESSORIES 0353-260-27-00: Surface mounting bracket kit 0305-265-61-70: Retrofit kit For replacement bulbs, see page 143 \\\SPECIFICATIONS OPERATING VOLTAGE 110VAC, 24VAC, 50/60 Hz. 12VDC, 220VAC (Special Order) NOMINAL POWER CONSUMPTION 1 Light Models — 0.07A 2 Light Models — 0.14A 3 Light Models — 0.20A 4 Light Models — 0.27A 5 Light Models — 0.33A BULB RATINGS 5W BULB FLASH RATE 60 Per Minute RECOMMENDED SWITCH RATING AC Models 1A DC Models 2A MOUNTING Horizontal or Vertical 90° Angle Bracket and Mounting Hardware Supplied TERMINATION Wire Leads BUZZER DECIBEL 60db WEIGHT 1.7 lbs. to 2.2 lbs. t HYT tower lights are available in models from one (1) to five (5) lights. The lights are supplied as complete assemblies including; bulb, pole, mounting bracket & hardware. The HYT series lights are application flexible. Individual lights can be wired to be steady ON, flashing or with an alarm buzzer with either steady ON or flashing light. The model on the right is equipped with a built-in buzzer alarm. u

Open the catalog to page 1

Marsh Bellofram Automatic Timing & Controls HYT Series Status Indicator Tower Lights - 2

\\\HYT FAMILY MOUNTING OPTIONS MODEL ST-012 MODEL HY-ST011 MODEL HY-ST009 ST-012 Metal Mounting Base. This die cast metal base allows all HYT family lights to be bottom mounted. ST-012 replaces the standard "L" bracket at the base of the light. HY-ST011 Plastic Mounting Base. This mounting base is used when you want to eliminate the height provided by the 10" pole. The HY-ST011 base is equipped with a brass sleeve that fits into the light column base and the pole is eliminated. HY-ST009 31.5 Inch Light Pole. This light pole allows the user to increase the height of HYT family lights up to...

Open the catalog to page 2
