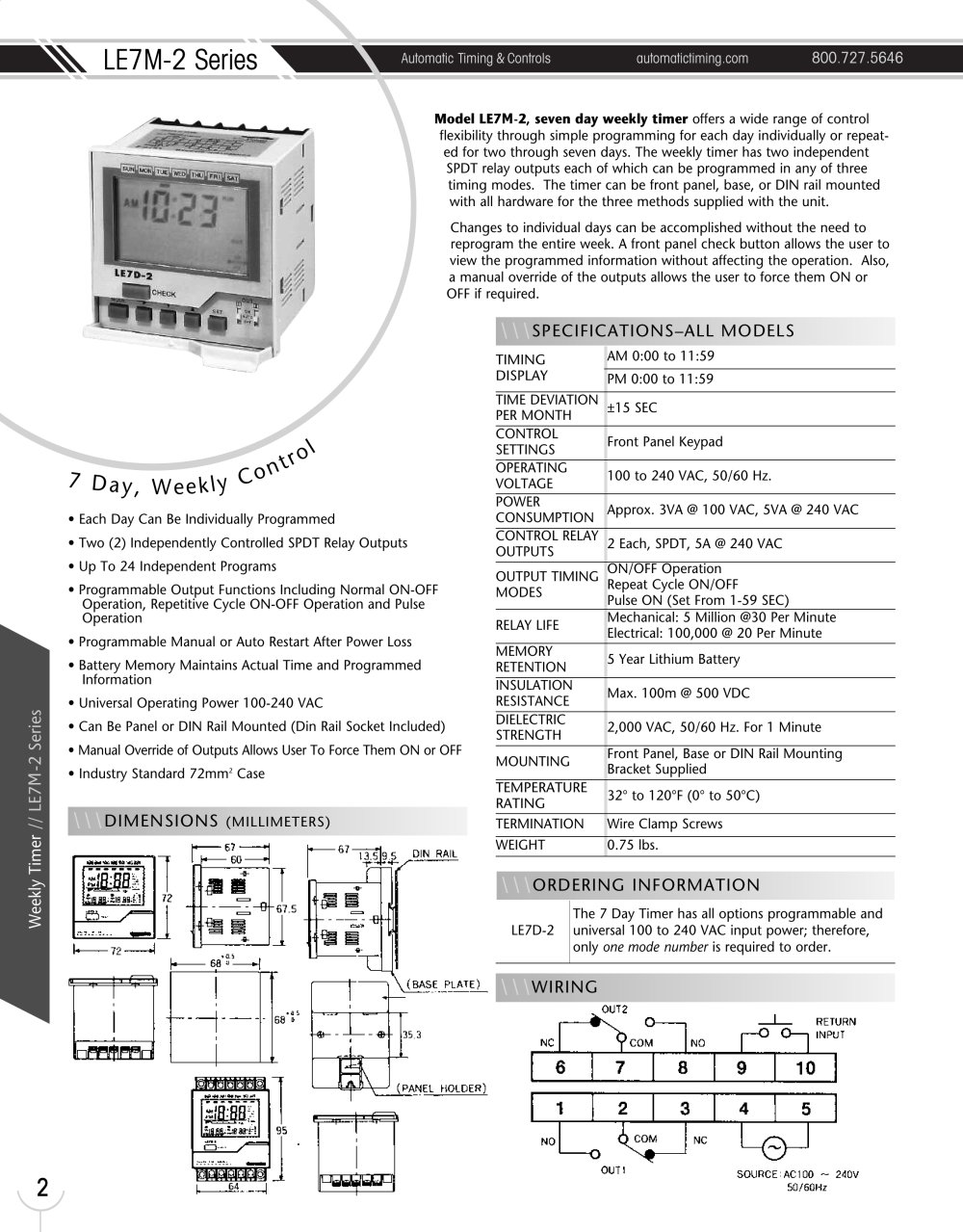

LE7M-2 Series Automatic Timing & Controls automatictiming.com 800.727.5646 2Weekly Timer // LE7M - 2 Series Model LE7M-2, seven day weekly timer offers a wide range of control flexibility through simple programming for each day individually or repeated for two through seven days. The weekly timer has two independent SPDT relay outputs each of which can be programmed in any of three timing modes. The timer can be front panel, base, or DIN rail mounted with all hardware for the three methods supplied with the unit. Changes to individual days can be accomplished without the need to reprogram the entire week. A front panel check button allows the user to view the programmed information without affecting the operation. Also, a manual override of the outputs allows the user to force them ON or OFF if required. 7 D a y , W e e kly C o n t r o l • Each Day Can Be Individually Programmed • Two (2) Independently Controlled SPDT Relay Outputs • Up To 24 Independent Programs • Programmable Output Functions Including Normal ON-OFF Operation, Repetitive Cycle ON-OFF Operation and Pulse Operation • Programmable Manual or Auto Restart After Power Loss • Battery Memory Maintains Actual Time and Programmed Information • Universal Operating Power 100-240 VAC • Can Be Panel or DIN Rail Mounted (Din Rail Socket Included) • Manual Override of Outputs Allows User To Force Them ON or OFF • Industry Standard 72mm2 Case \\\SPECIFICATIONS–ALL MODELS TIMING DISPLAY AM 0:00 to 11:59 PM 0:00 to 11:59 TIME DEVIATION PER MONTH ±15 SEC CONTROL SETTINGS Front Panel Keypad OPERATING VOLTAGE 100 to 240 VAC, 50/60 Hz. POWER CONSUMPTION Approx. 3VA @ 100 VAC, 5VA @ 240 VAC CONTROL RELAY OUTPUTS 2 Each, SPDT, 5A @ 240 VAC OUTPUT TIMING MODES ON/OFF Operation Repeat Cycle ON/OFF Pulse ON (Set From 1-59 SEC) RELAY LIFE Mechanical: 5 Million @30 Per Minute Electrical: 100,000 @ 20 Per Minute MEMORY RETENTION 5 Year Lithium Battery INSULATION RESISTANCE Max. 100m @ 500 VDC DIELECTRIC STRENGTH 2,000 VAC, 50/60 Hz. For 1 Minute MOUNTING Front Panel, Base or DIN Rail Mounting Bracket Supplied TEMPERATURE RATING 32° to 120°F (0° to 50°C) TERMINATION Wire Clamp Screws WEIGHT 0.75 lbs. \\\DIMENSIONS (MILLIMETERS) \\\WIRING \\\ORDERING INFORMATION LE7D-2 The 7 Day Timer has all options programmable and universal 100 to 240 VAC input power; therefore, only one mode number is required to order.
