Marsh Bellofram Automatic Timing & Controls Division CP Series Percentage Timer

Marsh Bellofram Automatic Timing & Controls Division CP Series Percentage Timer

Product catalog summary

Overview: The CP Series Automatic Timing & Controls offers a precise and fool-proof operating mechanism designed for continuous ON-OFF control of electrical circuits. It eliminates the need for engaging cams and latches and provides five selectable time ranges, requiring minimal panel space.

Applications: This timer is suitable for controlling pumps, blowers, filters, heating equipment, industrial ovens, laboratory equipment, and other applications where ON or OFF control is needed as a percentage of the total time cycle.

Specifications:

Time Ranges: 30, 60 seconds; 15, 30, 60 minutes.
Timing Mode: Continuous ON-OFF.
Range Setting: Adjustable from 3% to 97%, with options for 100% ON and OFF.
Setting Accuracy: Within 2% of full scale.
Repeat Accuracy: Within 1% of full scale.
Output: SPST, 15A, 25 VAC resistive.
Motor Voltages: 120 VAC 50/60 Hz, 240 VAC 50/60 Hz (50 Hz units are 1/6 slower).
Termination: Rear screw terminals.
Mounting: Front panel.
Temperature Rating: 32° to 120°F (0° to 50°C).
Weight: 1.4 lbs.

Model Numbering: The model number is structured as CP followed by the time range and voltage, e.g., CP-15M-A for a 15-minute timer with 120 VAC.

Catalog excerpts

Marsh Bellofram Automatic Timing & Controls Division CP Series Percentage Timer -1

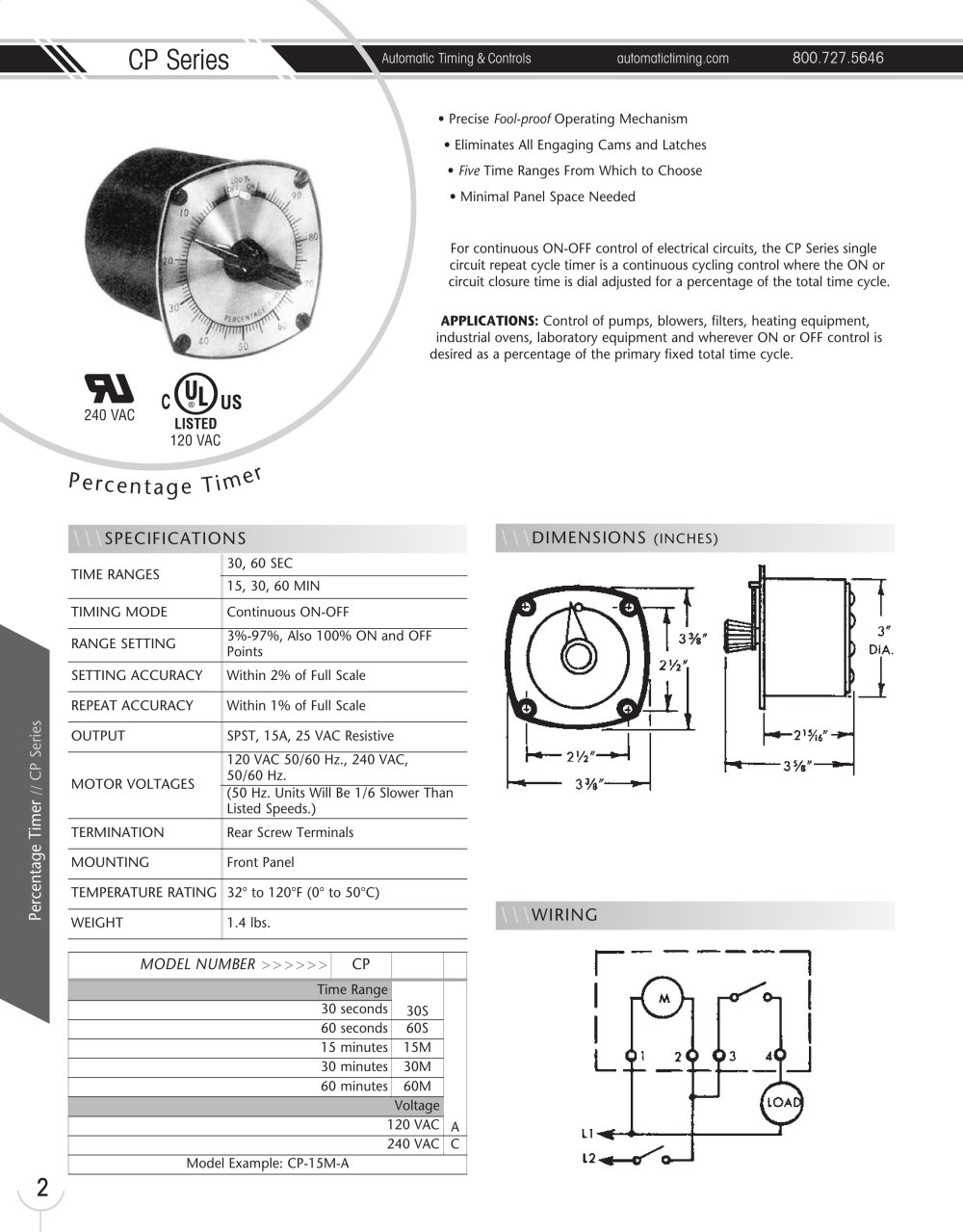

CP Series Automatic Timing & Controls automatictiming.com 800.727.5646 2Percentage Timer // CP Series • Precise Fool-proof Operating Mechanism • Eliminates All Engaging Cams and Latches • Five Time Ranges From Which to Choose • Minimal Panel Space Needed For continuous ON-OFF control of electrical circuits, the CP Series single circuit repeat cycle timer is a continuous cycling control where the ON or circuit closure time is dial adjusted for a percentage of the total time cycle. APPLICATIONS: Control of pumps, blowers, filters, heating equipment, industrial ovens, laboratory equipment and wherever ON or OFF control is desired as a percentage of the primary fixed total time cycle. P e r c e n t a g e Tim e r \\\SPECIFICATIONS TIME RANGES 30, 60 SEC 15, 30, 60 MIN TIMING MODE Continuous ON-OFF RANGE SETTING 3%-97%, Also 100% ON and OFF Points SETTING ACCURACY Within 2% of Full Scale REPEAT ACCURACY Within 1% of Full Scale OUTPUT SPST, 15A, 25 VAC Resistive MOTOR VOLTAGES 120 VAC 50/60 Hz., 240 VAC, 50/60 Hz. (50 Hz. Units Will Be 1/6 Slower Than Listed Speeds.) TERMINATION Rear Screw Terminals MOUNTING Front Panel TEMPERATURE RATING 32° to 120°F (0° to 50°C) WEIGHT 1.4 lbs. MODEL NUMBER >>>>>> CP Time Range 30S A 30 seconds 60 seconds 60S 15 minutes 15M 30 minutes 30M 60 minutes 60M Voltage 120 VAC 240 VAC C Model Example: CP-15M-A \\\DIMENSIONS (INCHES) \\\WIRING 120 VAC 240 VAC
