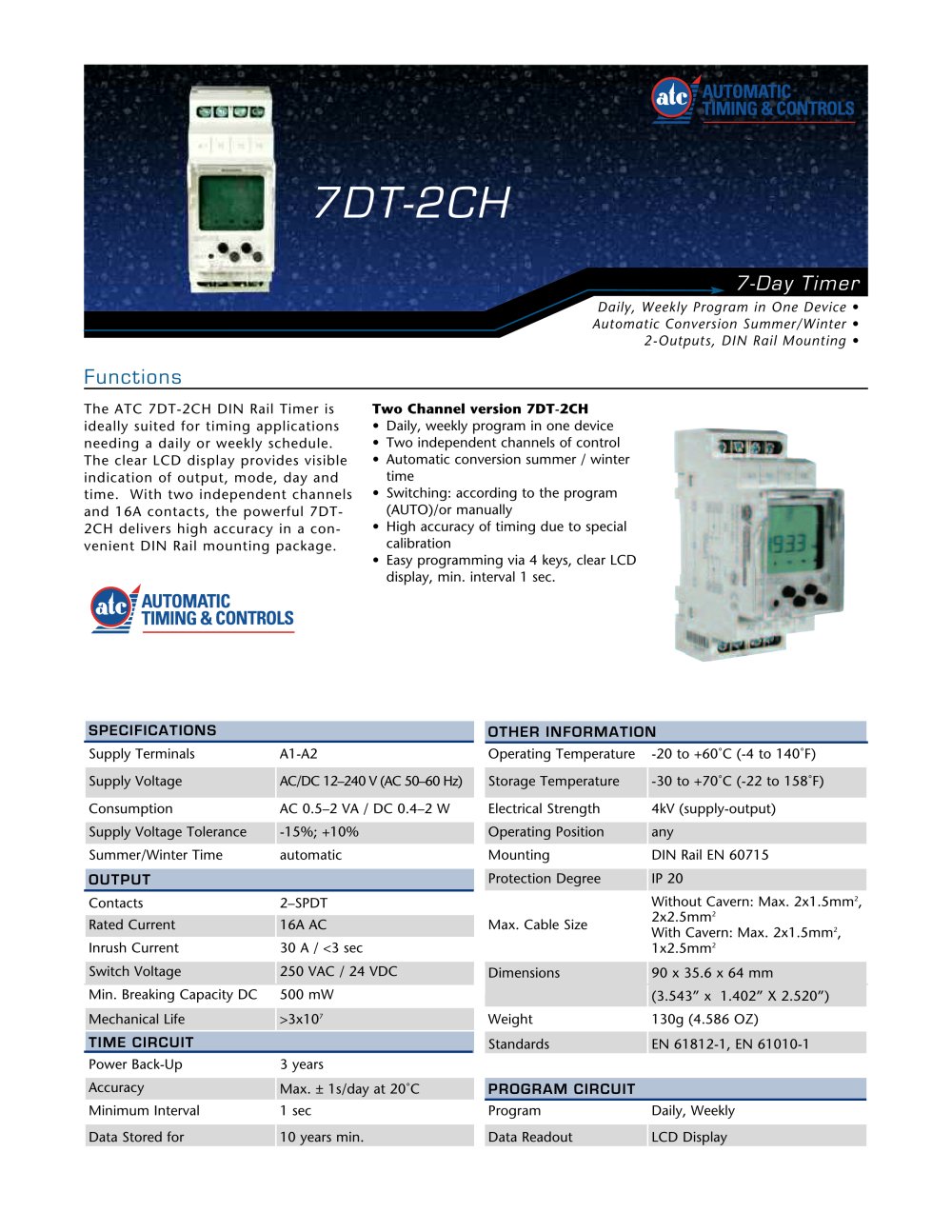

The ATC 7DT-2CH DIN Rail Timer is ideally suited for timing applications needing a daily or weekly schedule. The clear LCD display provides visible indication of output, mode, day and time. With two independent channels and 16A contacts, the powerful 7DT- 2CH delivers high accuracy in a convenient DIN Rail mounting package. Two Channel version 7DT-2CH • Daily, weekly program in one device • Two independent channels of control • Automatic conversion summer / winter time • Switching: according to the program (AUTO)/or manually • High accuracy of timing due to special calibration • Easy programming via 4 keys, clear LCD display, min. interval 1 sec. 7-Day Timer Daily, Weekly Program in One Device • Automatic Conversion Summer/Winter • 2-Outputs, DIN Rail Mounting • Functions SPECIFICATIONS OTHER INFORMATION Supply Terminals A1-A2 Operating Temperature -20 to +60°C (-4 to 140°F) Supply Voltage AC/DC 12–240 V (AC 50–60 Hz) Storage Temperature -30 to +70°C (-22 to 158°F) Consumption AC 0.5–2 VA / DC 0.4–2 W Electrical Strength 4kV (supply-output) Supply Voltage Tolerance -15%; +10% Operating Position any Summer/Winter Time automatic Mounting DIN Rail EN 60715 OUTPUT Protection Degree IP 20 Contacts 2–SPDT Max. Cable Size Without Cavern: Max. 2x1.5mm2, 2x2.5mm2 With Cavern: Max. 2x1.5mm2, 1x2.5mm2 Rated Current 16A AC Inrush Current 30 A / <3 sec Switch Voltage 250 VAC / 24 VDC Dimensions 90 x 35.6 x 64 mm Min. Breaking Capacity DC 500 mW (3.543” x 1.402” X 2.520”) Mechanical Life >3x107 Weight 130g (4.586 OZ) TIME CIRCUIT Standards EN 61812-1, EN 61010-1 Power Back-Up 3 years Accuracy Max. ± 1s/day at 20°C PROGRAM CIRCUIT Minimum Interval 1 sec Program Daily, Weekly Data Stored for 10 years min. Data Readout LCD Display 7DT-2CH
