Marsh Bellofram Automatic Timing & Controls Division 765 Series Programmable Count/Time Step Control

Marsh Bellofram Automatic Timing & Controls Division 765 Series Programmable Count/Time Step Control

Product catalog summary

Overview: The ATC 765 Step Controller is designed as an efficient alternative to cam timers and micro PLCs for simple sequential applications. It is microprocessor-based, offering up to 100 control steps and 8 programmable relay outputs. The device supports both count input signals and timed input with four timing range values, making it versatile for various industrial applications.

Specifications:

Timing Ranges: From 0.001 seconds to 199 hours and 59 minutes.
Count Range: Up to 9999 counts.
Input/Time Inhibit: Operates on line voltage or 12-18 VDC, 24 VAC.
Count Speeds: 500/min and 5000/min for both AC and DC.
Memory: EEPROM for indefinite storage without battery backup.
Power Consumption: 5.2VA.
Repeat Accuracy: Count 100%, Time ±0.01 seconds max.
Mechanical Life: 50,000,000 operations.
Output: 8 relay contacts, normally open, with specific ratings for resistive and inductive loads.
Temperature Rating: 32° to 140°F (0° to 60°C).
Power Control Input: Voltage options of 120 or 240VAC, with a power consumption of 3.2VA.
Transient Voltage Protection: Metal Oxide Varistor.
Weight: 1.64 lb.

Features:

Easy configuration with a user-friendly programming format.
Sealed design suitable for harsh industrial environments.
Equipped with a large digital LCD readout for clear visibility.
Includes a keypad lockout feature for security.
Four-point screw mounting to resist vibration.

LCD Display: The front panel display provides information on step number, time or count value, and output status in run mode, and programming information in program mode. It includes indicators for program annunciator, directional arrows, time range annunciators, and cycle/count annunciators.

Accessories: Includes a surface mounting bracket and panel gaskets of varying thicknesses.

Catalog excerpts

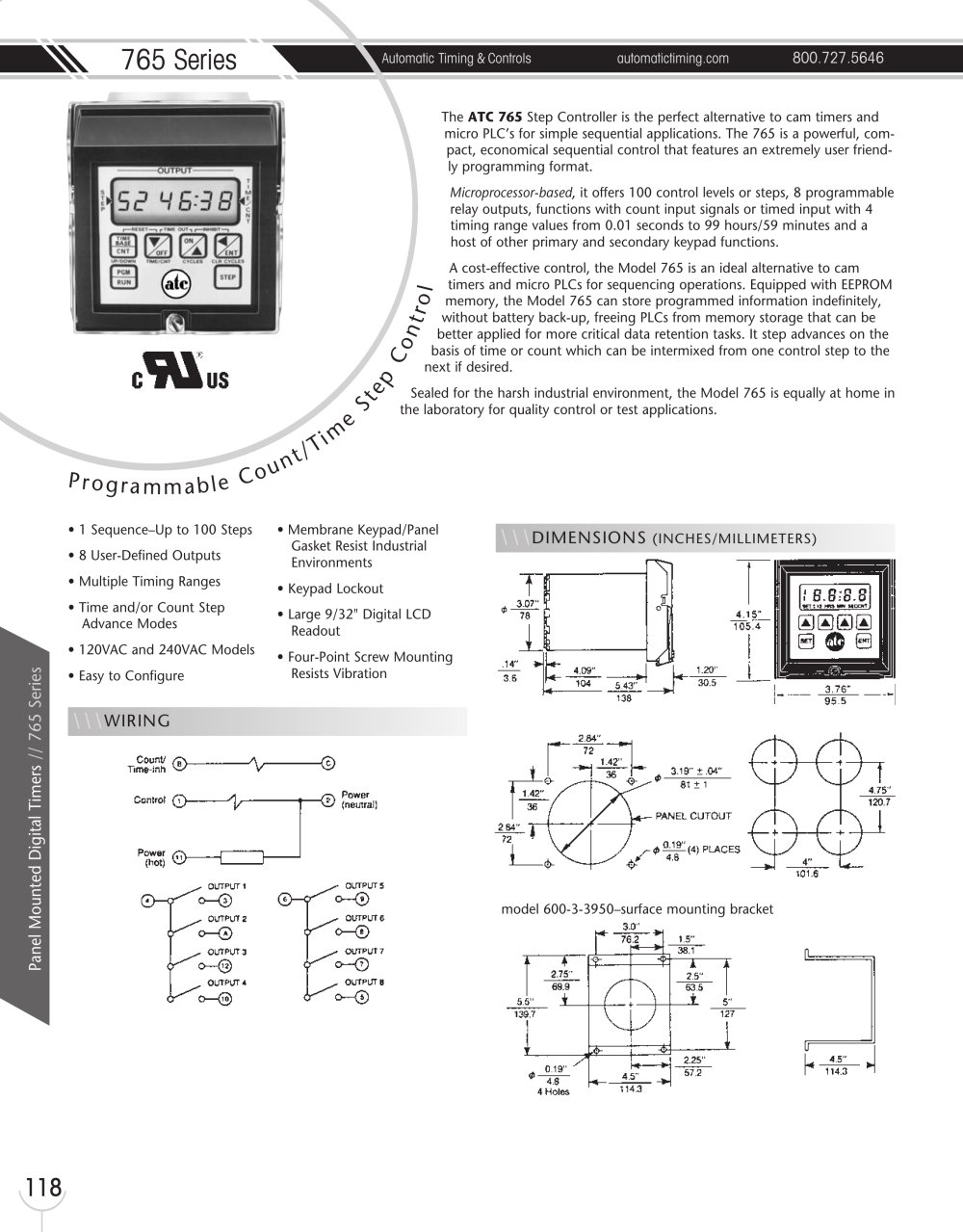

Marsh Bellofram Automatic Timing & Controls Division 765 Series Programmable Count/Time Step Control-1

765 Series Automatic Timing & Controls automatictiming.com 800.727.5646 118 Panel Mounted Digital Timers // 765 Series The ATC 765 Step Controller is the perfect alternative to cam timers and micro PLC’s for simple sequential applications. The 765 is a powerful, compact, economical sequential control that features an extremely user friendly programming format. Microprocessor-based, it offers 100 control levels or steps, 8 programmable relay outputs, functions with count input signals or timed input with 4 timing range values from 0.01 seconds to 99 hours/59 minutes and a host of other primary and secondary keypad functions. A cost-effective control, the Model 765 is an ideal alternative to cam timers and micro PLCs for sequencing operations. Equipped with EEPROM memory, the Model 765 can store programmed information indefinitely, without battery back-up, freeing PLCs from memory storage that can be better applied for more critical data retention tasks. It step advances on the basis of time or count which can be intermixed from one control step to the next if desired. Sealed for the harsh industrial environment, the Model 765 is equally at home in the laboratory for quality control or test applications. P r o g r a m m a b l e C o u n t / T ime S tep Control model 600-3-3950–surface mounting bracket • 1 Sequence–Up to 100 Steps • 8 User-Defined Outputs • Multiple Timing Ranges • Time and/or Count Step Advance Modes • 120VAC and 240VAC Models • Easy to Configure • Membrane Keypad/Panel Gasket Resist Industrial Environments • Keypad Lockout • Large 9/32" Digital LCD Readout • Four-Point Screw Mounting Resists Vibration \\\DIMENSIONS (INCHES/MILLIMETERS) \\\WIRING

Open the catalog to page 1

Marsh Bellofram Automatic Timing & Controls Division 765 Series Programmable Count/Time Step Control-2

800.727.5646 automatictiming.com Automatic Timing & Controls 765 Series Panel Mounted Digital Timers // 765 Series 119 \\\SPECIFICATIONS–ALL MODELS TIMING RANGES 0.001 SEC to 19.999 SEC 0.01 SEC to 199.99 SEC 0.1 SEC to 1999.9 SEC 1 SEC to 199 MIN 59 SEC 1 MIN to 199 Hr. 59 MIN COUNT RANGE 9999 COUNT INPUT/TIME INHIBIT Line Voltage or 12-18 VDC, 24 VAC COUNT SPEEDS (AC OR DC) 500/MIN 5000/MIN MEMORY EEPROM POWER CONSUMPTION 5.2VA TIME SETTING Front Panel Keypad REPEAT ACCURACY Count 100% Time ±0.01 SEC Max. MECHANICAL LIFE 50,000,000 Operations OUTPUT 8 Relay Contacts, N.O. Ratings 5A/250V/1250VA...

Open the catalog to page 2
