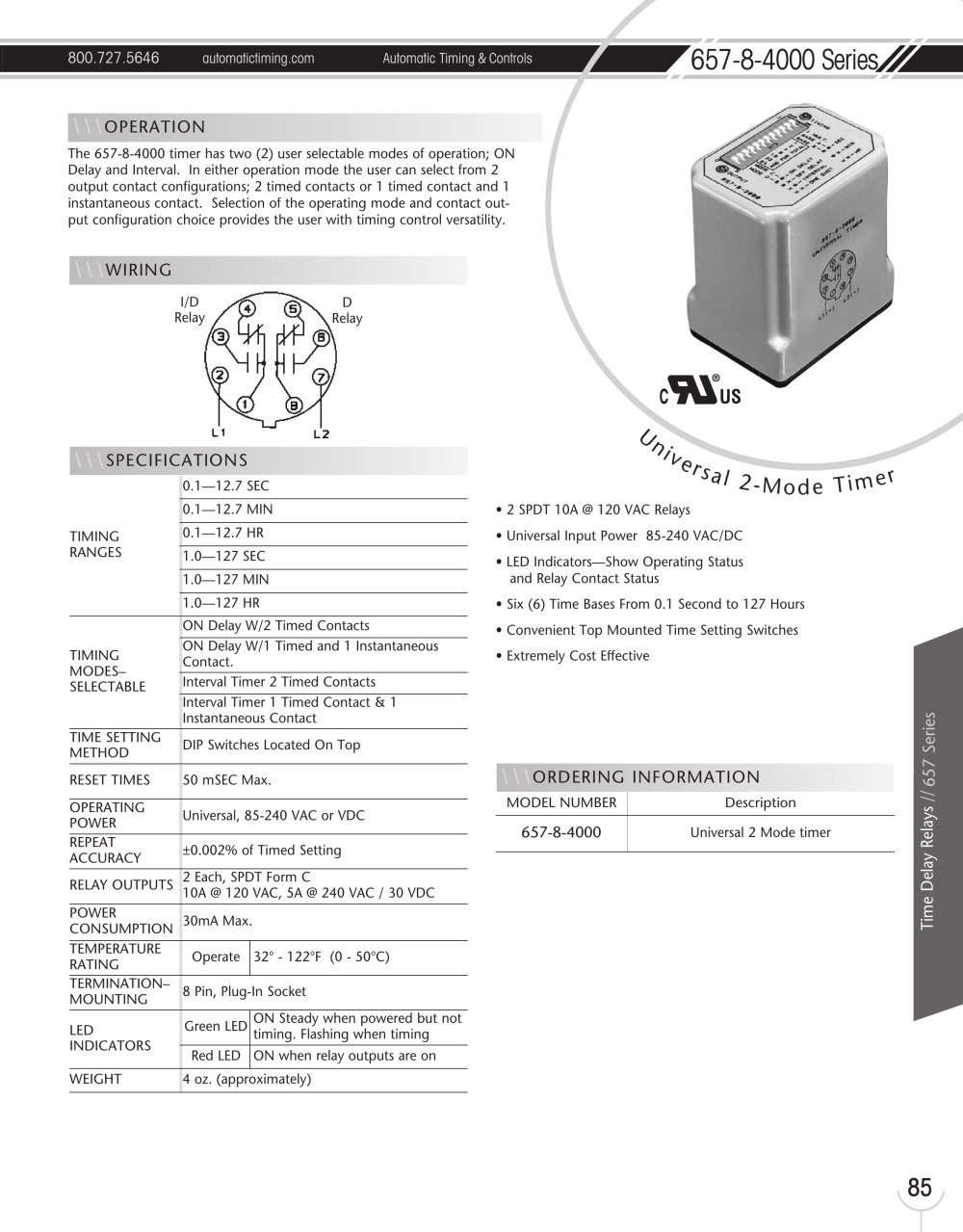

800.727.5646 automatictiming.com Automatic Timing & Controls 657-8-4000 Series Time Delay Relays // 657 Series 85 The 657-8-4000 timer has two (2) user selectable modes of operation; ON Delay and Interval. In either operation mode the user can select from 2 output contact configurations; 2 timed contacts or 1 timed contact and 1 instantaneous contact. Selection of the operating mode and contact output configuration choice provides the user with timing control versatility. Univ e r sa l 2 -Mo d e T i m er • 2 SPDT 10A @ 120 VAC Relays • Universal Input Power 85-240 VAC/DC • LED Indicators—Show Operating Status and Relay Contact Status • Six (6) Time Bases From 0.1 Second to 127 Hours • Convenient Top Mounted Time Setting Switches • Extremely Cost Effective \\\WIRING \\\SPECIFICATIONS TIMING RANGES 0.1—12.7 SEC 0.1—12.7 MIN 0.1—12.7 HR 1.0—127 SEC 1.0—127 MIN 1.0—127 HR TIMING MODES– SELECTABLE ON Delay W/2 Timed Contacts ON Delay W/1 Timed and 1 Instantaneous Contact. Interval Timer 2 Timed Contacts Interval Timer 1 Timed Contact & 1 Instantaneous Contact TIME SETTING METHOD DIP Switches Located On Top RESET TIMES 50 mSEC Max. OPERATING POWER Universal, 85-240 VAC or VDC REPEAT ACCURACY ±0.002% of Timed Setting RELAY OUTPUTS 2 Each, SPDT Form C 10A @ 120 VAC, 5A @ 240 VAC / 30 VDC POWER CONSUMPTION 30mA Max. TEMPERATURE RATING Operate 32° - 122°F (0 - 50°C) TERMINATION– MOUNTING 8 Pin, Plug-In Socket LED INDICATORS Green LED ON Steady when powered but not timing. Flashing when timing Red LED ON when relay outputs are on WEIGHT 4 oz. (approximately) \\\OPERATION \\\ORDERING INFORMATION MODEL NUMBER Description 657-8-4000 Universal 2 Mode timer I/D Relay D Relay
