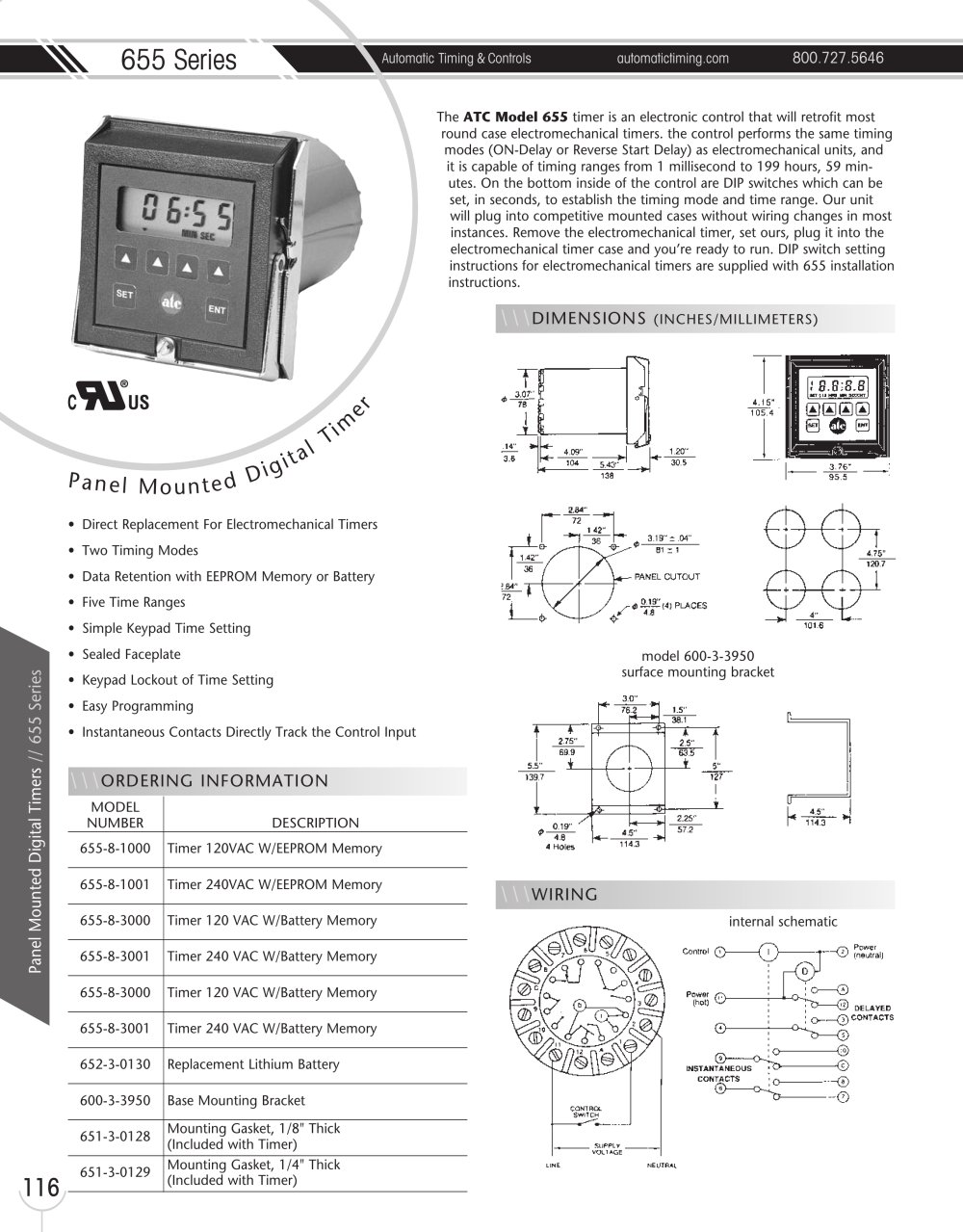

Marsh Bellofram Automatic Timing & Controls Division 655 Series Panel Mounted Digital Timer - 1

655 Series Automatic Timing & Controls automatictiming.com 800.727.5646 116Panel Mounted Digital Timers // 655 Series The ATC Model 655 timer is an electronic control that will retrofit most round case electromechanical timers. the control performs the same timing modes (ON-Delay or Reverse Start Delay) as electromechanical units, and it is capable of timing ranges from 1 millisecond to 199 hours, 59 minutes. On the bottom inside of the control are DIP switches which can be set, in seconds, to establish the timing mode and time range. Our unit will plug into competitive mounted cases without wiring changes in most instances. Remove the electromechanical timer, set ours, plug it into the electromechanical timer case and you’re ready to run. DIP switch setting instructions for electromechanical timers are supplied with 655 installation instructions. P a n e l M o u n t ed D i g it a l T ime r model 600-3-3950 surface mounting bracket • Direct Replacement For Electromechanical Timers • Two Timing Modes • Data Retention with EEPROM Memory or Battery • Five Time Ranges • Simple Keypad Time Setting • Sealed Faceplate • Keypad Lockout of Time Setting • Easy Programming • Instantaneous Contacts Directly Track the Control Input \\\DIMENSIONS (INCHES/MILLIMETERS) \\\WIRING internal schematic \\\ORDERING INFORMATION MODEL NUMBER DESCRIPTION 655-8-1000 Timer 120VAC W/EEPROM Memory 655-8-1001 Timer 240VAC W/EEPROM Memory 655-8-3000 Timer 120 VAC W/Battery Memory 655-8-3001 Timer 240 VAC W/Battery Memory 655-8-3000 Timer 120 VAC W/Battery Memory 655-8-3001 Timer 240 VAC W/Battery Memory 652-3-0130 Replacement Lithium Battery 600-3-3950 Base Mounting Bracket 651-3-0128 Mounting Gasket, 1/8" Thick (Included with Timer) 651-3-0129 Mounting Gasket, 1/4" Thick (Included with Timer)

Open the catalog to page 1

Marsh Bellofram Automatic Timing & Controls Division 655 Series Panel Mounted Digital Timer - 2

800.727.5646 automatictiming.com Automatic Timing & Controls 655 Series Panel Mounted Digital Timer // 655 Series 117 DIP SWITCH DEFINITIONS 0=OFF X=ON 1. Determine Eagle Model Number: To determine the Model Number of the Eagle HP5; remove timer from case by loosening the screw at the lower front of the timer face and lift the mounting handle and pull the timer from the case. The model number will be on the left side of the timer. Some models will have a metal plate with the part number, others have a label with the number in that same area. 2. Remove Control: Remove the 655 control from...
