Marsh Bellofram Automatic Timing & Controls Division 652 Series Multi-Function Multi-Range Timer

Marsh Bellofram Automatic Timing & Controls Division 652 Series Multi-Function Multi-Range Timer

Product catalog summary

Overview: The ATC 652 is a microprocessor-based digital timer featuring a 4-1/2 digit LCD display. It can show either the preset time remaining or the elapsed time. The timer supports five timing ranges from 0.001 seconds to 199 hours and 59 minutes. It includes both instantaneous and programmable relay outputs, with 14 different timing modes selectable via an internal DIP switch.

Key Features:

Five timing ranges from 0.001 seconds to 199 hours 59 minutes.
Replaces most electro-mechanical timers.
Offers six single-cycle and eight repeat-cycle timing modes.
Easy programming with a 7/16" high LCD display.
Sealed faceplate and keypad lockout for time setting security.
Internal cycle counter and data retention memory using EEPROM or lithium battery.

Specifications:

Reset time: 25 mSEC for models 652-8-2000 & 652-8-2001, 8 mSEC for models 652-8-3000 & 652-8-3001.
Control voltage initiate time: 25 mSEC or 8 mSEC depending on the model.
Power consumption: 5.2 VA for EEPROM models, 3.7 VA for battery models.
Timing accuracy: ±0.005 seconds.
Relay mechanical life: 50,000,000 operations.
Operating temperature: 32° - 140°F (0° - 60°C).
Power: 120 or 240 VAC, +10%, -20%, 50/60 Hz.
Transient voltage protection with metal oxide varistor.
NEMA rating: NEMA 12.

Ordering Information:

652-8-2000: 120 VAC with EEPROM memory.
652-8-2001: 240 VAC with EEPROM memory.
652-8-3000: 120 VAC with battery memory.
652-8-3001: 240 VAC with battery memory.
Accessories include mounting gaskets and replacement lithium battery.

Applications: Suitable for various industrial applications requiring precise timing control, replacing traditional electro-mechanical timers with advanced digital solutions.

Catalog excerpts

Marsh Bellofram Automatic Timing & Controls Division 652 Series Multi-Function Multi-Range Timer-1

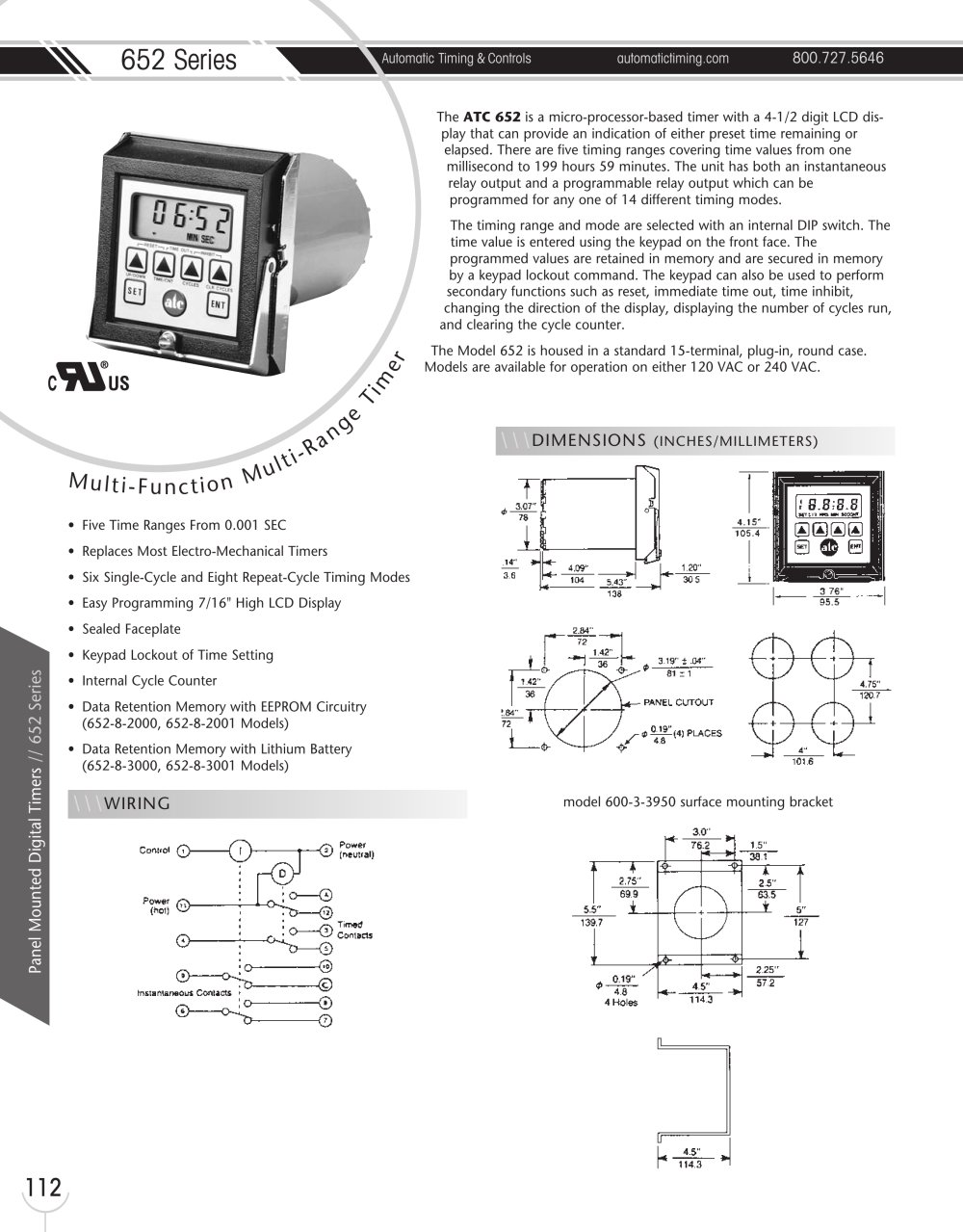

652 Series Automatic Timing & Controls automatictiming.com 800.727.5646 112 Panel Mounted Digital Timers // 652 Series The ATC 652 is a micro-processor-based timer with a 4-1/2 digit LCD display that can provide an indication of either preset time remaining or elapsed. There are five timing ranges covering time values from one millisecond to 199 hours 59 minutes. The unit has both an instantaneous relay output and a programmable relay output which can be programmed for any one of 14 different timing modes. The timing range and mode are selected with an internal DIP switch. The time value is entered using the keypad on the front face. The programmed values are retained in memory and are secured in memory by a keypad lockout command. The keypad can also be used to perform secondary functions such as reset, immediate time out, time inhibit, changing the direction of the display, displaying the number of cycles run, and clearing the cycle counter. The Model 652 is housed in a standard 15-terminal, plug-in, round case. Models are available for operation on either 120 VAC or 240 VAC. M u l t i - F u n c t i on M u l t i - R a nge Timer model 600-3-3950 surface mounting bracket • Five Time Ranges From 0.001 SEC • Replaces Most Electro-Mechanical Timers • Six Single-Cycle and Eight Repeat-Cycle Timing Modes • Easy Programming 7/16" High LCD Display • Sealed Faceplate • Keypad Lockout of Time Setting • Internal Cycle Counter • Data Retention Memory with EEPROM Circuitry (652-8-2000, 652-8-2001 Models) • Data Retention Memory with Lithium Battery (652-8-3000, 652-8-3001 Models) \\\DIMENSIONS (INCHES/MILLIMETERS) \\\WIRING
