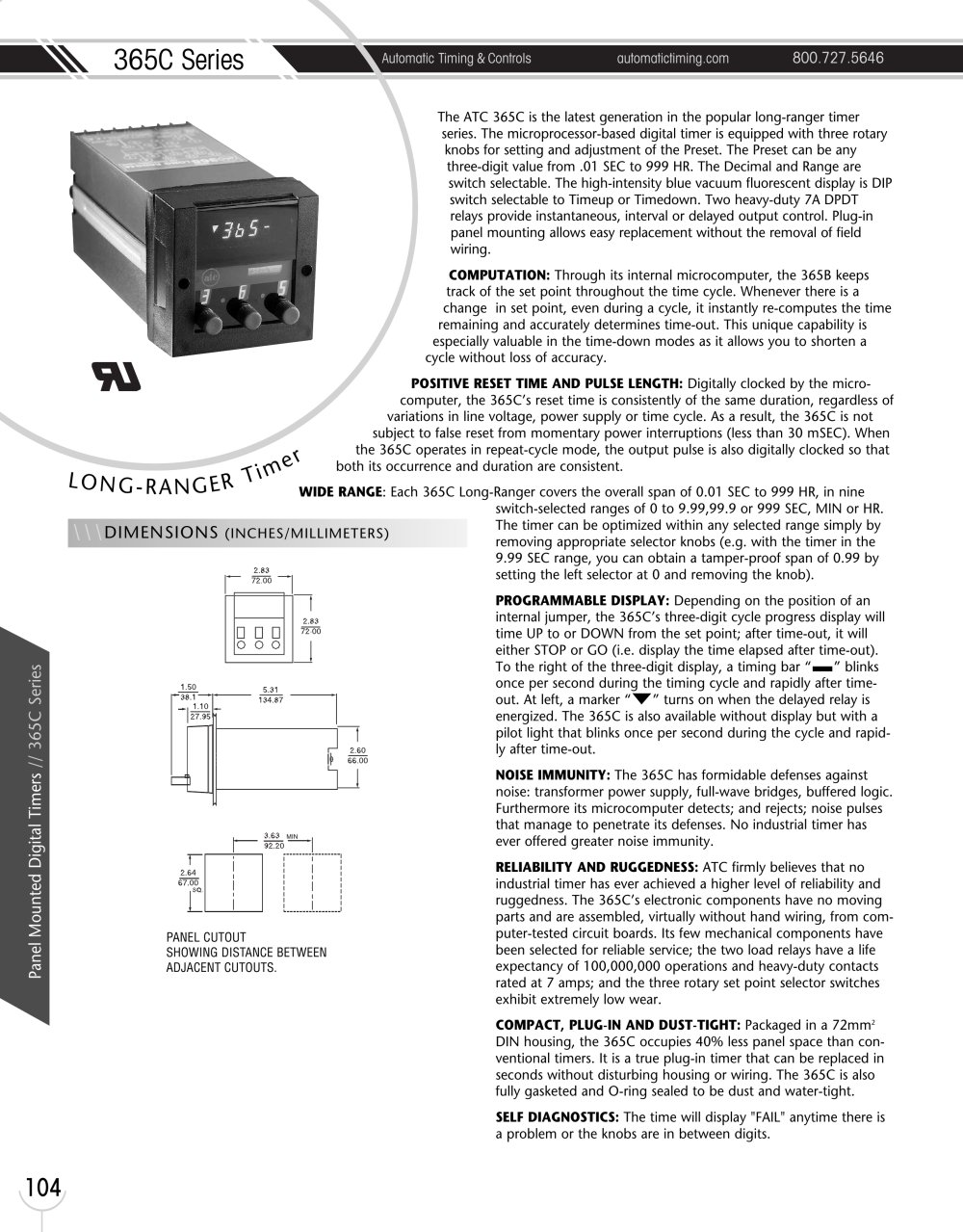

Marsh Bellofram Automatic Timing & Controls Division 365C Series Long-Ranger Timer - 1

365C Series Automatic Timing & Controls automatictiming.com 800.727.5646 104 Panel Mounted Digital Timers // 365C Series The ATC 365C is the latest generation in the popular long-ranger timer series. The microprocessor-based digital timer is equipped with three rotary knobs for setting and adjustment of the Preset. The Preset can be any three-digit value from .01 SEC to 999 HR. The Decimal and Range are switch selectable. The high-intensity blue vacuum fluorescent display is DIP switch selectable to Timeup or Timedown. Two heavy-duty 7A DPDT relays provide instantaneous, interval or delayed output control. Plug-in panel mounting allows easy replacement without the removal of field wiring. COMPUTATION: Through its internal microcomputer, the 365B keeps track of the set point throughout the time cycle. Whenever there is a change in set point, even during a cycle, it instantly re-computes the time remaining and accurately determines time-out. This unique capability is especially valuable in the time-down modes as it allows you to shorten a cycle without loss of accuracy. POSITIVE RESET TIME AND PULSE LENGTH: Digitally clocked by the microcomputer, the 365C’s reset time is consistently of the same duration, regardless of variations in line voltage, power supply or time cycle. As a result, the 365C is not subject to false reset from momentary power interruptions (less than 30 mSEC). When the 365C operates in repeat-cycle mode, the output pulse is also digitally clocked so that both its occurrence and duration are consistent. WIDE RANGE: Each 365C Long-Ranger covers the overall span of 0.01 SEC to 999 HR, in nine switch-selected ranges of 0 to 9.99,99.9 or 999 SEC, MIN or HR. The timer can be optimized within any selected range simply by removing appropriate selector knobs (e.g. with the timer in the 9.99 SEC range, you can obtain a tamper-proof span of 0.99 by setting the left selector at 0 and removing the knob). PROGRAMMABLE DISPLAY: Depending on the position of an internal jumper, the 365C’s three-digit cycle progress display will time UP to or DOWN from the set point; after time-out, it will either STOP or GO (i.e. display the time elapsed after time-out). To the right of the three-digit display, a timing bar “ ” blinks once per second during the timing cycle and rapidly after timeout. At left, a marker “ ” turns on when the delayed relay is energized. The 365C is also available without display but with a pilot light that blinks once per second during the cycle and rapidly after time-out. NOISE IMMUNITY: The 365C has formidable defenses against noise: transformer power supply, full-wave bridges, buffered logic. Furthermore its microcomputer detects; and rejects; noise pulses that manage to penetrate its defenses. No industrial timer has ever offered greater noise immunity. RELIABILITY AND RUGGEDNESS: ATC firmly believes that no industrial timer has ever achieved a higher level of reliability and ruggedness. The 365C’s electronic components have no moving parts and are assembled, virtually without hand wiring, from computer- tested circuit boards. Its few mechanical components have been selected for reliable service; the two load relays have a life expectancy of 100,000,000 operations and heavy-duty contacts rated at 7 amps; and the three rotary set point selector switches exhibit extremely low wear. COMPACT, PLUG-IN AND DUST-TIGHT: Packaged in a 72mm2 DIN housing, the 365C occupies 40% less panel space than conventional timers. It is a true plug-in timer that can be replaced in seconds without disturbing housing or wiring. The 365C is also fully gasketed and O-ring sealed to be dust and water-tight. SELF DIAGNOSTICS: The time will display "FAIL" anytime there is a problem or the knobs are in between digits. L O N G - R A NG E R T i me r PANEL CUTOUT SHOWING DISTANCE BETWEEN ADJACENT CUTOUTS. \\\DIMENSIONS (INCHES/MILLIMETERS)

Open the catalog to page 1

Marsh Bellofram Automatic Timing & Controls Division 365C Series Long-Ranger Timer - 2

800.727.5646 automatictiming.com Automatic Timing & Controls 365C Series Panel Mounted Digital Timers // 365C Series 105 MODELS Arrangement “30,” with digital display available for On-Delay operation at 120, 240 or 24 VAC; and 24, 48 or 125 VDC RANGES Switch-selectable ranges of 0-9.99, 0-99.9 and 0-999 SEC, MIN or HR TIMING MODES Single Cycle interval or delayed. Repeat Cycle pulse-clocked at 50 to 80 mSEC (will be constant for a given unit) RESET TIME Clocked at 60 mSEC DISPLAY CYCLE PROGRESS 3 digit display, 0.3 inch, high-intensity, blue programmable: DOWN and STOP, DOWN and GO, UP and...

Open the catalog to page 2

Marsh Bellofram Automatic Timing & Controls Division 365C Series Long-Ranger Timer - 3

365C Series Automatic Timing & Controls automatictiming.com 800.727.5646 106 Panel Mounted Digital Timers // 365C Series As soon as power is applied to terminals 1 & 2 of the timer, the instantaneous relay is energized and changes the states of its associated contacts (8-6-7 & 9-14-10). The timer then looks for terminal 15 (the clock terminal) to receive power. When terminal 15 is powered, the internal clock circuit is enabled and the timer starts to time. When the internal clock time equals the time set on the front face, the delayed relay energizes and changes the states of its associated...
